Meta Power Bosch, connect the system controller

STEP 0

To connect the Bosch system, the controller on top tube must be plugged.

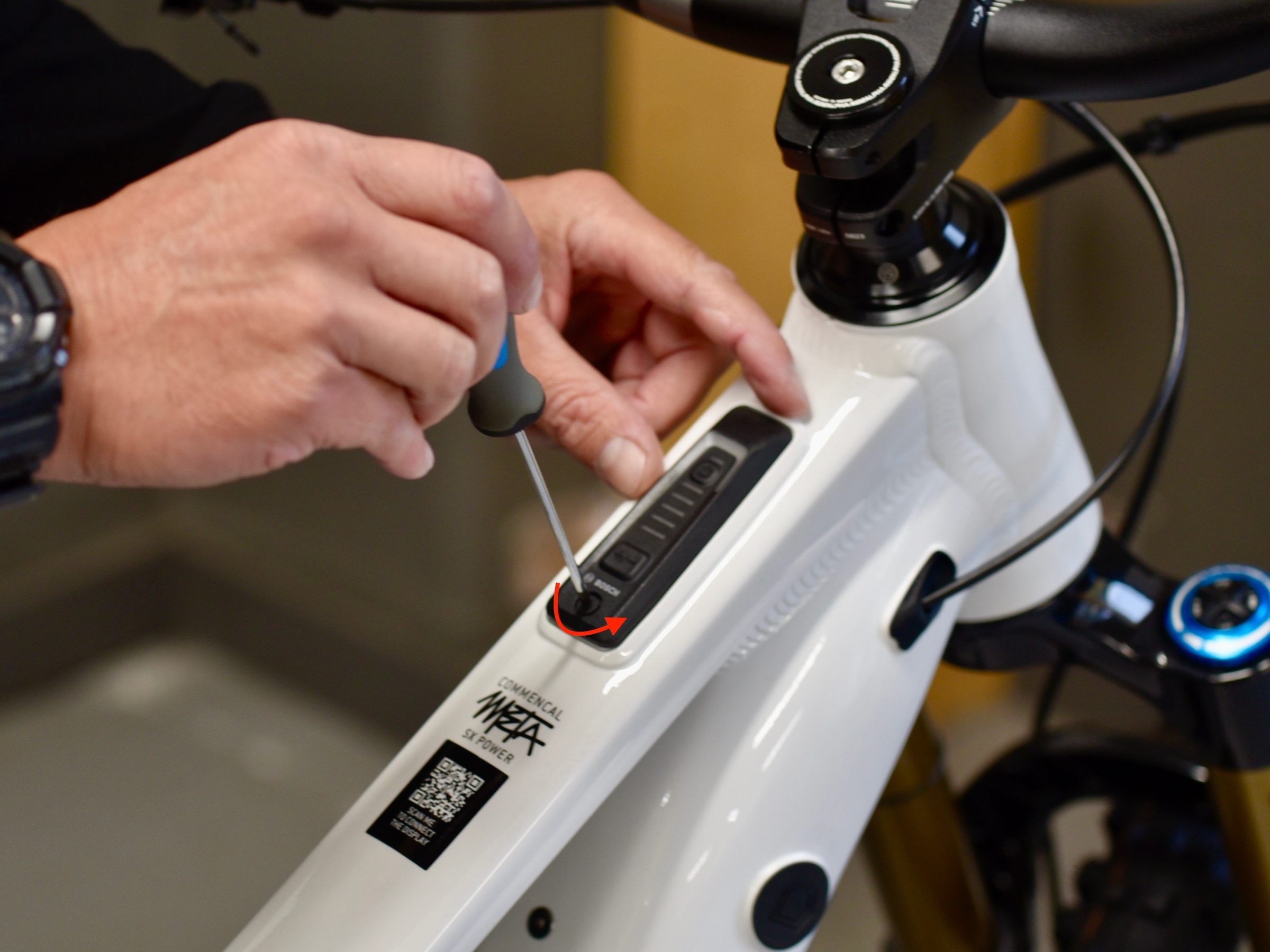

Unscrew the bolt with a Torx T10 key.

STEP 1

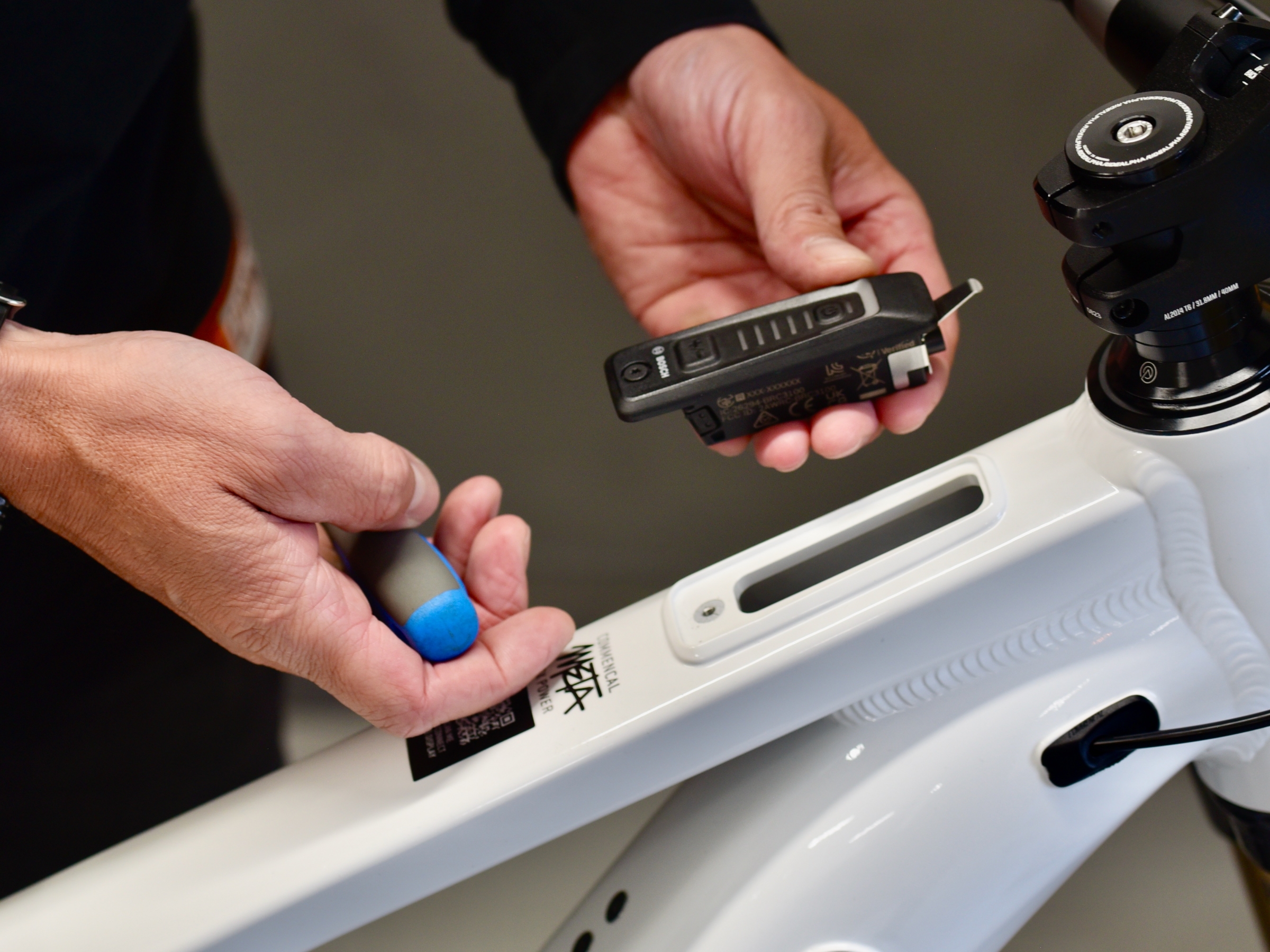

Remove the controller from the top tube.

STEP 2

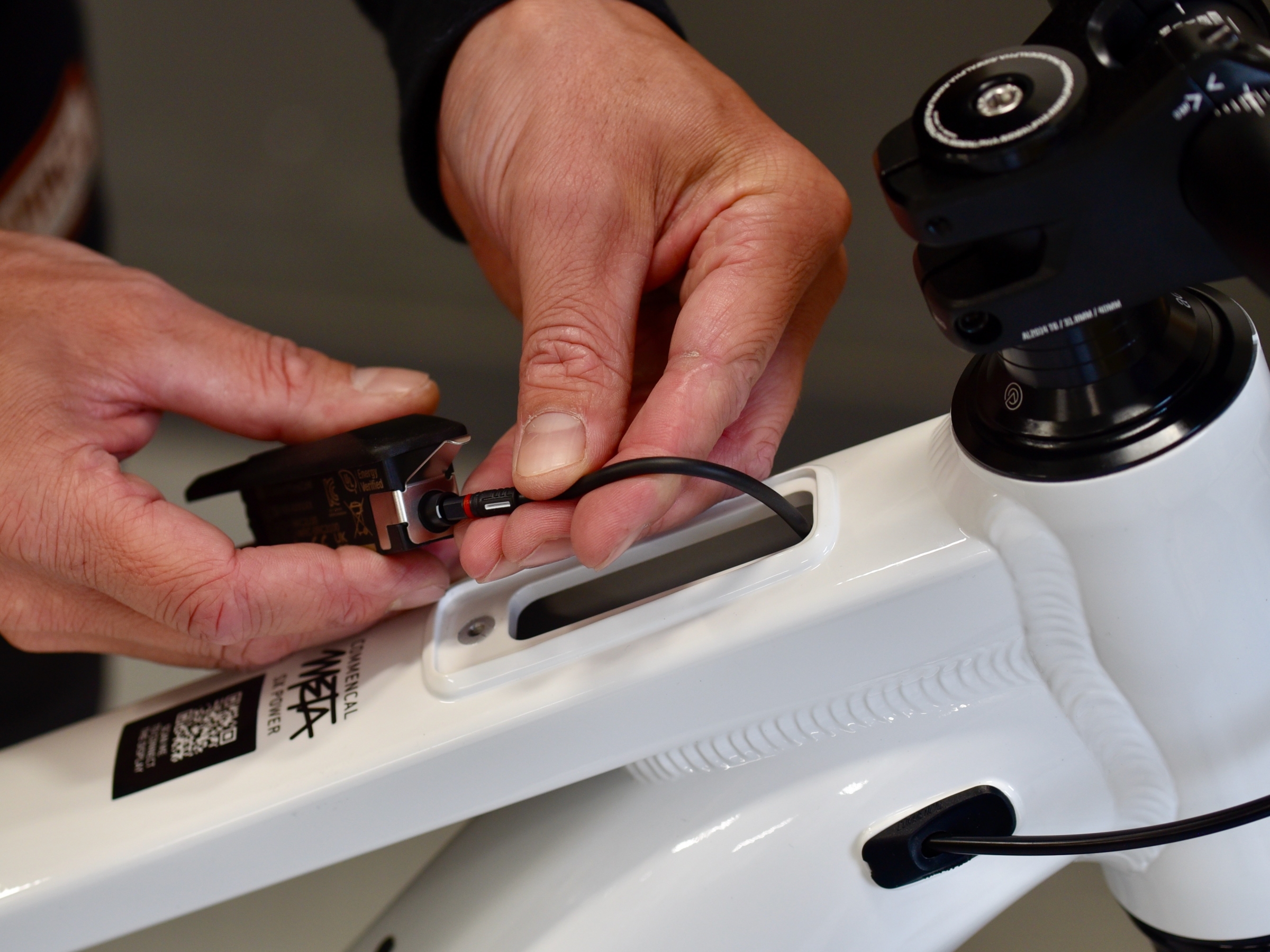

Plug the wire in the controller. White marks must be aligned.

STEP 3

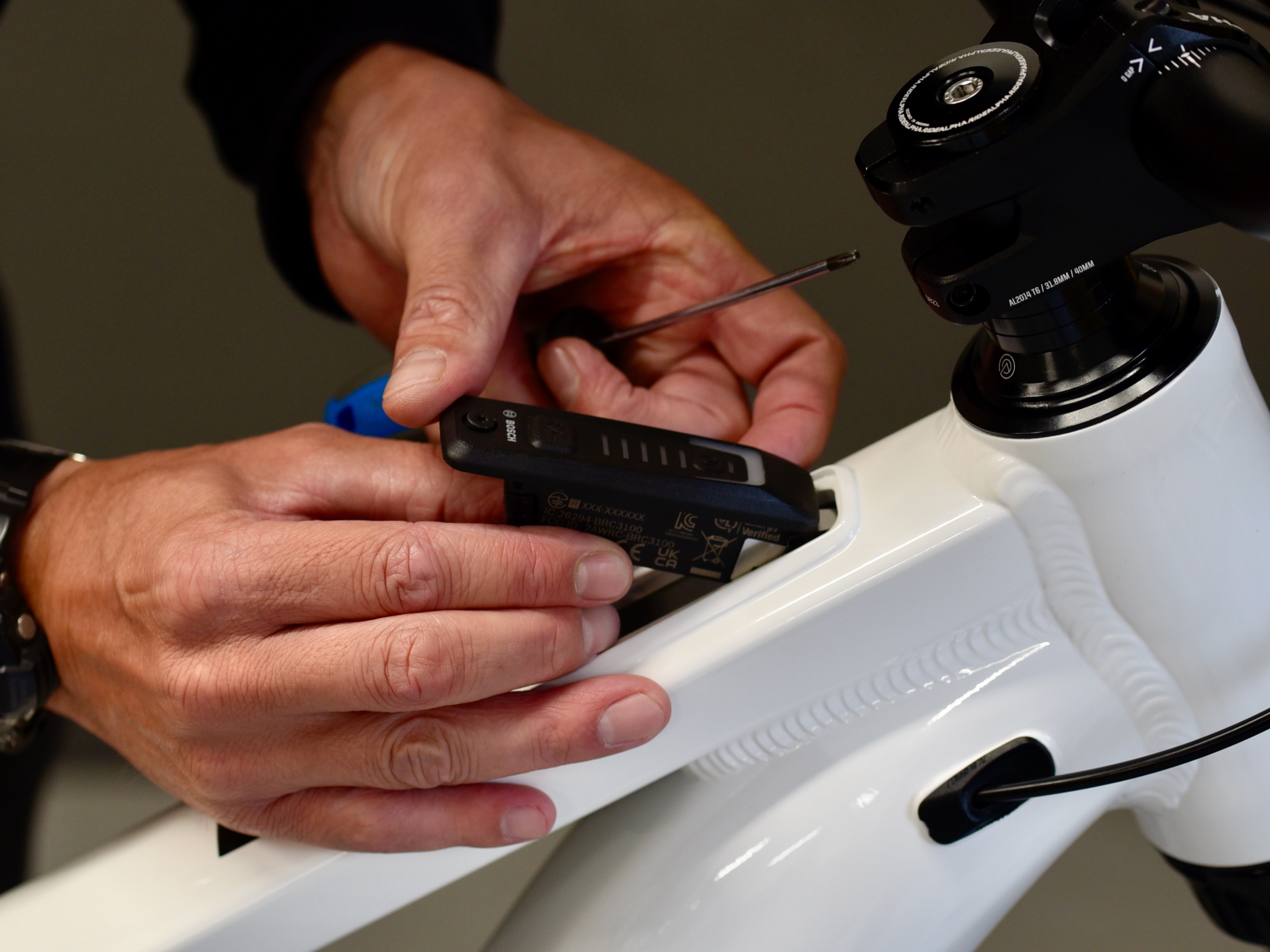

Install the controller in the top tube from the front part.

STEP 4

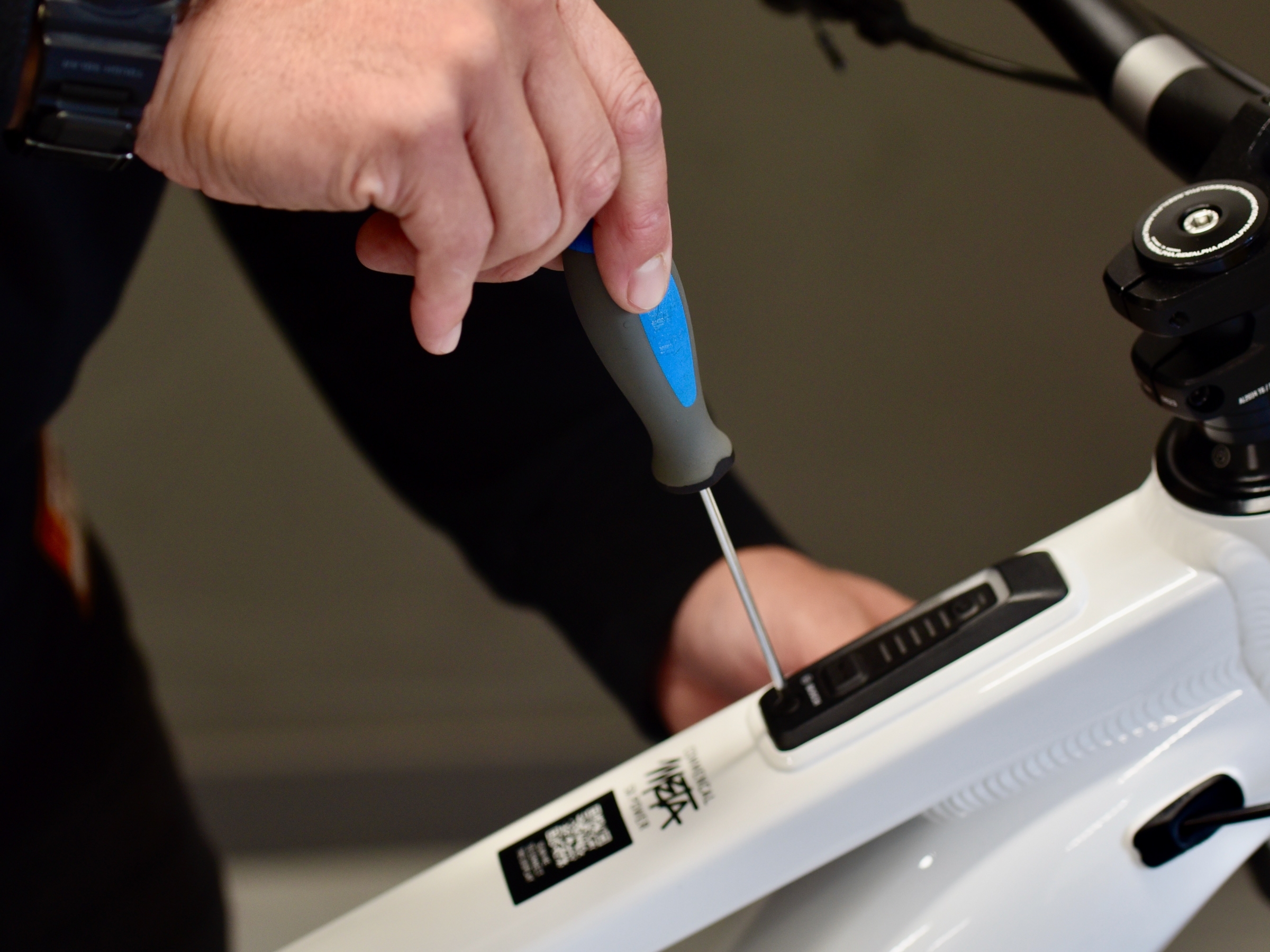

Tighten the bolt with a Torx T10 key, at 1,5N.m
