COMMENCAL META AM V4 ORIGIN ROCKSHOX YELLOW 2016

https://tech.commencal.com/tech/index.php?fiche=205&lang=UK

SPECS

FRAME	2016 META AM 650b Travel 150mm, 6066 Triple Butted hydroformed, Integrated Postmount, Top tube channel, integrated housing
SHOCK	ROCKSHOX Monarch RT, 200x57mm, 150mm travel
FORK	ROCKSHOX Yari RC, 650b, tapered, 160mm travel
HEADSET	Semi integrated, tapered ZS44/56, 1.5" crown race, sealed bearing, alloy cups
STEM	RIDE ALPHA, Alloy 2014 Forged, 50mm, O° rise, Ø31,8mm
BAR	RIDE ALPHA, Alloy 6061, double butted, 30mm rise, 760mm, Ø31,8mm
GRIPS	COMMENCAL lock on, Ø32mm, soft compound
BRAKES	SRAM DB3 200mm/180mm, with Matchmaker
SHIFTERS	SRAM X7 1x10 speed
FRONT / REAR MECH	- / SRAM X7 10 speed
BOTTOM BRACKET	Press fit BB92, sealed bearings
CRANKSET	RIDE ALPHA Forged 1x10, RIDE ALPHA narrow wide 32T chainring, 170mm on S/M, 175mm on L/XL
CHAIN	KMC X10 10 speed
CASSETTE	SRAM PG1020 11-36 t + Extra cog 42T RIDE ALPHA (including 16T cog)
RIMS	RIDE ALPHA 650b 32H Double Wall, Tubeless Ready
HUBS	RIDE ALPHA 32h, sealed bearing light version
SPOKES	Spoke Stainless Steel 1,8mm black, Thread lock system - nipple brass 12mm black
TYRES	MAXXIS Minion DHR II 2.3 front and rear. EXO, Dual compound, 60 Tpi. Tubeless Ready
SEATPOST	RIDE ALPHA Alloy No offset, Ø31,6mm, 350mm
SADDLE	RIDE ALPHA SuperLight foam, CrMo rails. Neon Yellow
PEDALS INCLUDED	No

TECH

BICYCLE TYPE	Full suspension All Mountain
FRAME MATERIAL	NEC + ULTRA SL (Aluminium 6066 Tripel Butted)
SHOCK TRAVEL	150mm
SHOCK LENGTH / STROKE	200x57
PIGGY BACK SHOCK COMPATIBLE	Yes
SHOCK SPACER DIMENSION	22,2x10mm front, 14x10mm rear
RECOMMENDED / MAX FORK HEIGHT	544mm / 554mm
HEADSET DIMENSION	Tapered 1"1/8 / 1,5"
HEADSET TYPE	Semi-integrated ZS44 / ZS56
MAXIMUM TYRE DIMENSION (ETRTO)	57mm
DISC BRAKE STANDARD	Postmount 160mm
REAR ROTOR MAX SIZE	180mm
SEATPOST / SEAT CLAMP DIAMETER	31,6mm / 34,9mm
BOTTOM BRACKET TYPE	Press fit BB92
ISCG	ISCG05
FRONT DERAILLEUR TYPE	Not compatible
REAR HUB COMPATIBILITY	142X12mm

SPOKE LENGTH

Contact System

Index	Ref	Nom		Photo
1	W15AXLELIST	AXES BASCULEUR / HAUBANS META V4 ET V4.2	10-15 N.m for orignal Rocker
2	W15ROCKERMETA	BASCULEUR POUR META AM V4
3	W21EBMETAV42	ROULEMENTS ENDURO BEARINGS META V4 / V4.2	2 x 6804 / 4 x 6800 / 6 x 6802
4	W17M42WASHERCKSS	RONDELLES BASCULEUR / HAUBANS META V4 ET V4.2

Contact System 2

Index	Ref	Nom		Photo
3	W21EBMETAV42	ROULEMENTS ENDURO BEARINGS META V4 / V4.2	2 x 6804 / 4 x 6800 / 6 x 6802
5	W15AXLELICL	AXES BASCULEUR / PIED AMORTISSEUR META V4 ET V4.2	10-15 N.m
6	W17M42WASHERCKCL	RONDELLES BASCULEUR / PIED AMORTISSEUR META V4 ET V4.2
7	W15CLEVISMETAV4SM	RALLONGE AMORTISSEUR META AM V4 S/M
7	W15CLEVISMETAV4LXL	RALLONGE AMORTISSEUR META AM V4 L/XL
8	W15AXLESHCL	AXE AMORTISSEUR / PIED AMORTISSEUR META V4 ET V4.2	9 N.m

Contact System 3

Index	Ref	Nom		Photo
10	W17M42WASHERRKST	RONDELLES BASCULEUR / TUBE DE SELLE META V4 ET V4.2
11	W17M4SPACERRCK	ENTRETOISE INTERNE BASCULEUR META V4
3	W21EBMETAV42	ROULEMENTS ENDURO BEARINGS META V4 / V4.2	2 x 6804 / 4 x 6800 / 6 x 6802
9	W15AXLELIFT	AXE BASCULEUR / TUBE DE SELLE META V4	10-15 N.m

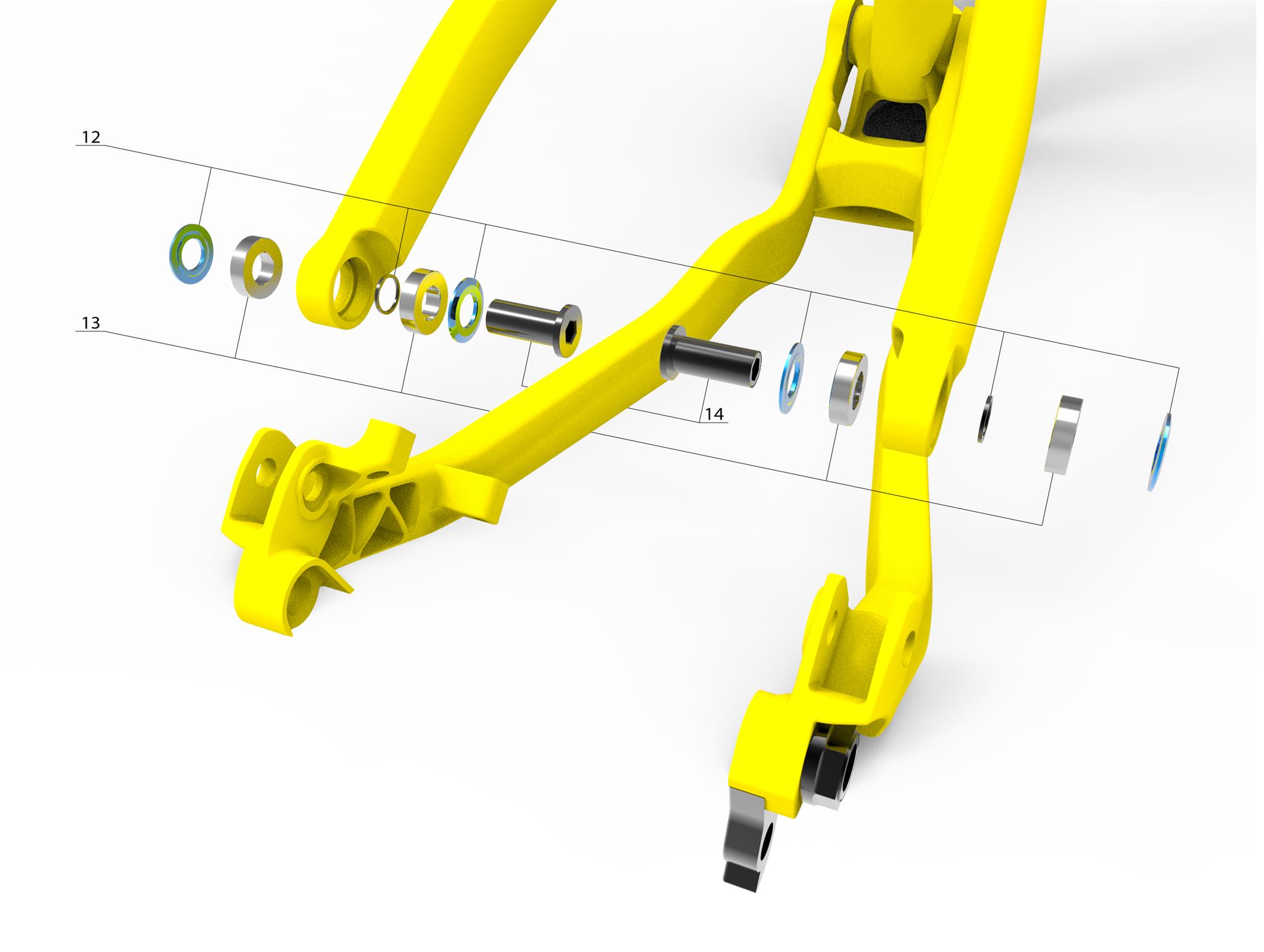

Chainstays / Seatstays

Index	Ref	Nom		Photo
12	W15WASHSTKIT	RONDELLES BASES / HAUBANS META V4 ET V4.2
13	W21EBMETAV42	ROULEMENTS ENDURO BEARINGS META V4 / V4.2	2 x 6804 / 4 x 6800 / 6 x 6802
14	W15AXLESTCS	AXES BASES / HAUBANS META V4, V4.2 ET META POWER	10-15 N.m

TopTube

Index	Ref	Nom		Photo
15	W15AXLESHTT	AXE AMORTISSEUR / TRIANGLE AVANT META V4	9-12 N.m

Main Pivot

Index	Ref	Nom		Photo
16	W15WASHMNPVT	RONDELLES PIVOT PRINCIPAL META V4 ET V4.2
17	W21EBMETAV42	ROULEMENTS ENDURO BEARINGS META V4 / V4.2	2 x 6804 / 4 x 6800 / 6 x 6802
18	W15AXLEMNPVT	KIT PIVOT PRINCIPAL POUR META V4	30-35 N.m

Chainstay Protector

Index	Ref	Nom		Photo
19	W15RHRMETA	PATTE DE DERAILLEUR META HT / V4 / V4.2 / POWER / 29 / SUPREME SX	15 N.m
20	A16CSTPROTECTORV4	PROTECTION DE BASE META V4
