COMMENCAL SUPREME JUNIOR YELLOW 2017

https://tech.commencal.com/tech/index.php?fiche=175&lang=DE

SPECS

FRAME	2017 SUPREME JR 6066 alloy hydroformed
SHOCK	ROCKSHOX MONARCH RT 200x57
FORK	ROCKSHOX Yari RC, 160mm, 15mm stealth axle, tapered
HEADSET	RIDE ALPHA ZS44/56
STEM	RIDE ALPHA alloy 6061 CNC, 50mm, 0° rise, 31,8mm
BAR	RIDE ALPHA, Alloy 6061, double butted, 30 mm rise, 740mm, 31,8mm
GRIPS	COMMENCAL Lock On, Ø32mm, soft compound
BRAKES	SRAM LEVEL, 200mm / 180mm
SHIFTERS	SRAM NX, 1x11 speed
FRONT / REAR MECH	- / SRAM NX 11 speed
BOTTOM BRACKET	SRAM GXP Press Fit BB92
CRANKSET	SRAM NX X-Sync, 30t, 165mm
CHAIN	SRAM PC 1110
CASSETTE	SRAM PG 1130, 11-42, 11 speed
RIMS	WTB STP i23, 32 holes, double wall, tubeless ready, 23mm inner
HUBS	FORMULA DH, 32 holes, sealed bearings
SPOKES-NIPPLES	PILLAR Spokes, Stainless steel, 2 mm, black, Nylock
TIRES	MAXXIS HRII 650x2,4 EXO TR front and MAXXIS DHRII 650x2,3 EXO TR rear
SEATPOST	RIDE ALPHA DH, 31,6mm , 300mm
SADDLE	NEW RIDE ALPHA DH Saddle, Cr-Mo rails
WEIGHT	14,32 kg
PEDALS INCLUDED	No
ACCESSORIES	Chainstay protector, seatstay protector.

TECH

BICYCLE TYPE	DH / Freeride full suspension
FRAME MATERIAL	NEC + ULTRA SL (6066 Triple Butted)
SHOCK TRAVEL	150mm
SHOCK LENGTH / STROKE	200x57mm
PIGGY BACK SHOCK COMPATIBLE	No
SHOCK SPACER DIMENSION	22,2x10mm
RECOMMENDED / MAX FORK HEIGHT	555mm
HEADSET DIMENSION	ZS44/ZS56
HEADSET TYPE	Semi-integrated ZS44 / ZS56
MAXIMUM TYRE WIDTH (ETRTO)	57mm
DISC BRAKE STANDARD	Postmount 160mm
REAR ROTOR MAX SIZE	180mm
SEATPOST / SEAT CLAMP DIAMETER	31,6mm / 34,9mm
BOTTOM BRACKET TYPE	Press fit BB92
ISCG	ISCG05
FRONT DERAILLEUR TYPE	No
REAR HUB COMPATIBILITY	142x12mm

SPEICHENLÄNGE

GEOMETRY

GRÖSSE	1 - SITZROHR-LÄNGE	2 - SITZROHR-WINKEL	3 - LENKWINKEL	4 - STEUERROHR-LÄNGE	5 - RADSTAND	6 - OBERROHR-LÄNGE	7 - KETTENSTREBEN-LÄNGE	8 - TRETLAGER-HÖHE	9 - GABEL-HÖHE	10 - SCHRITT-FREIHEIT	11 - REACH	12 - STACK
JUNIOR	370,0	74,0	65,0	105,0	1124,0	547,0	437,0	-12,0	555,0	736,0	359,0	594,0

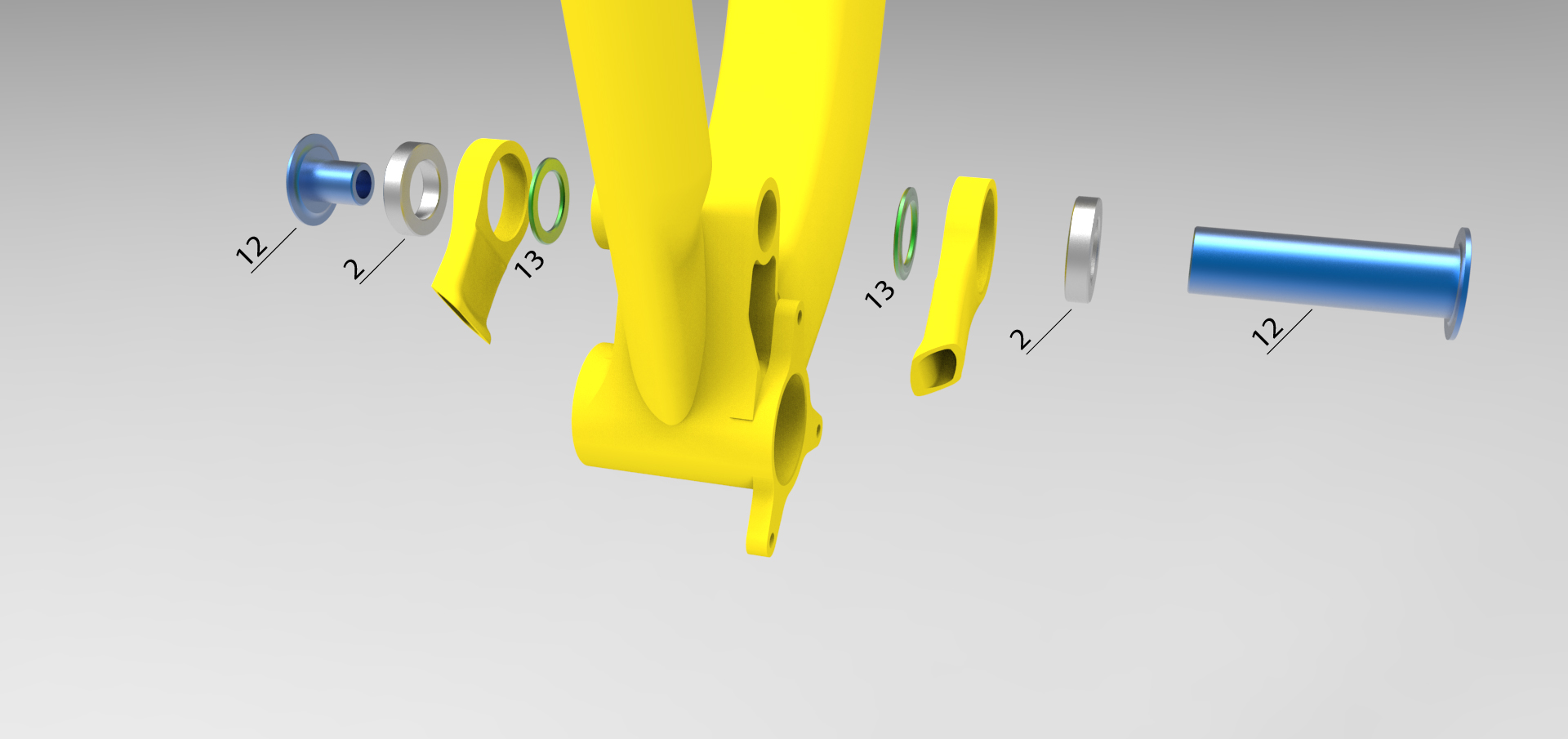

Main Pivot

Index	Ref	Nom		Photo
12	W15AXLEMNPVT	KIT PIVOT PRINCIPAL POUR META V4	30-35 N.m
13	W15WASHMNPVT	SPACERS POUR PIVOT PRINCIPAL DE META V4
2	W19EBSUP24JRV4	ROULEMENTS ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800

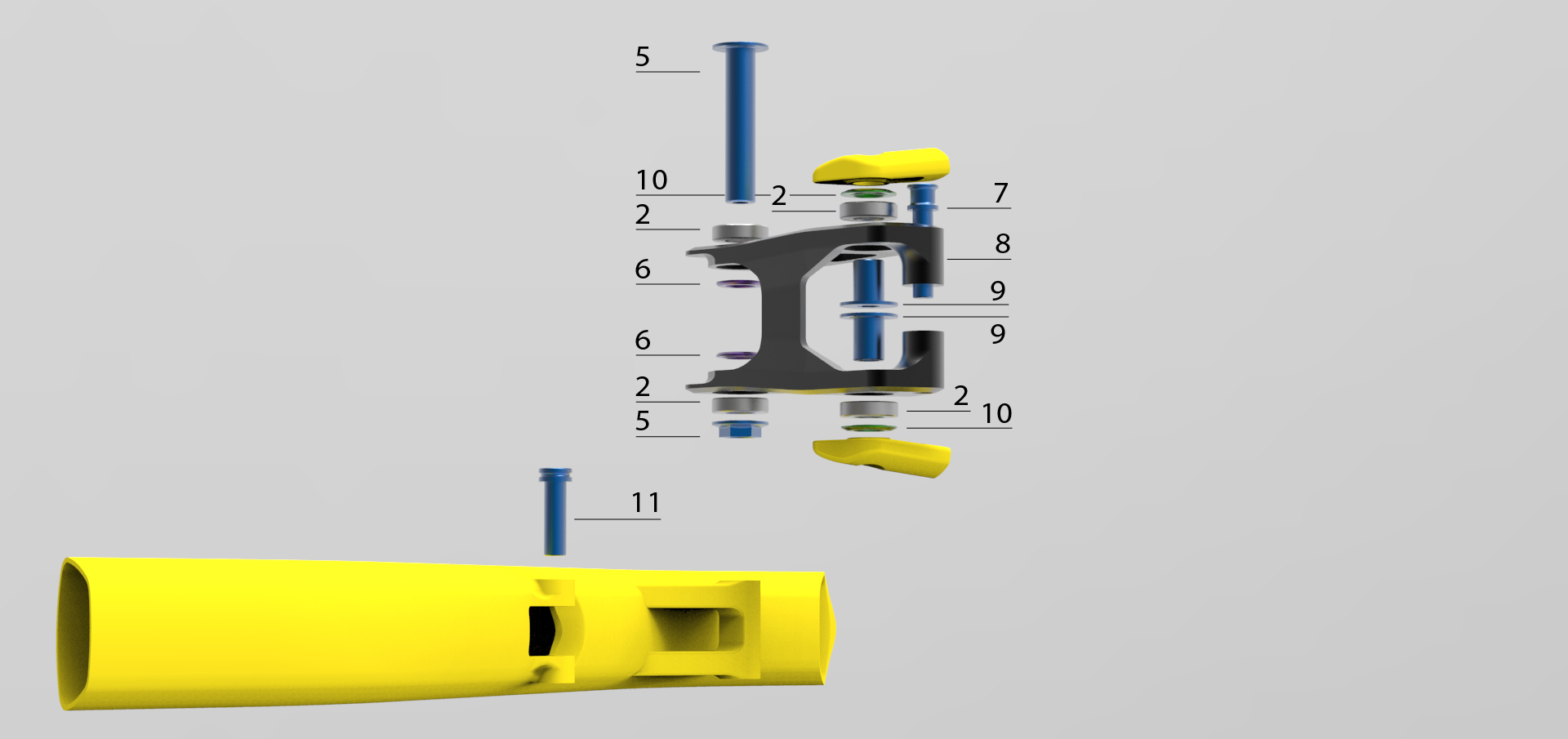

Contact System

Index	Ref	Nom		Photo
10	W17M42WASHERCKSS	ENTRETOISE BASCULEUR / HAUBANS META V4.2
11	W17AXLESHTT	AXE SUPERIEUR D'AMORTISSEUR POUR META V4.2	9 - 12 N.m
2	W19EBSUP24JRV4	ROULEMENTS ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800
5	W15SUPKV4AXLERKFT	AXE BASCULEUR / TRIANGLE AVANT SUPREME 24 ET JR V4	10-15 N.m
6	W15SUPKV4WASHERRKF	UNTERLEGSCHEIBE ROCKER LINK / HAUPTRAHMEN F�R SUPREME 24 UND JR V4
7	W12AXLESHYO	AXE AMORTISSEUR/YOKE 38MM/ 10MM SUPREME DH V3 ET META V3	12 N.m
8	W15SUPKV4ROCKER	BASCULEUR SUPREME 24 ET JR V4
9	W15SUPKV4BOLTRKSS	AXE BASCULEUR / HAUBANS SUPREME 24 ET JR V4	10-15 N.m

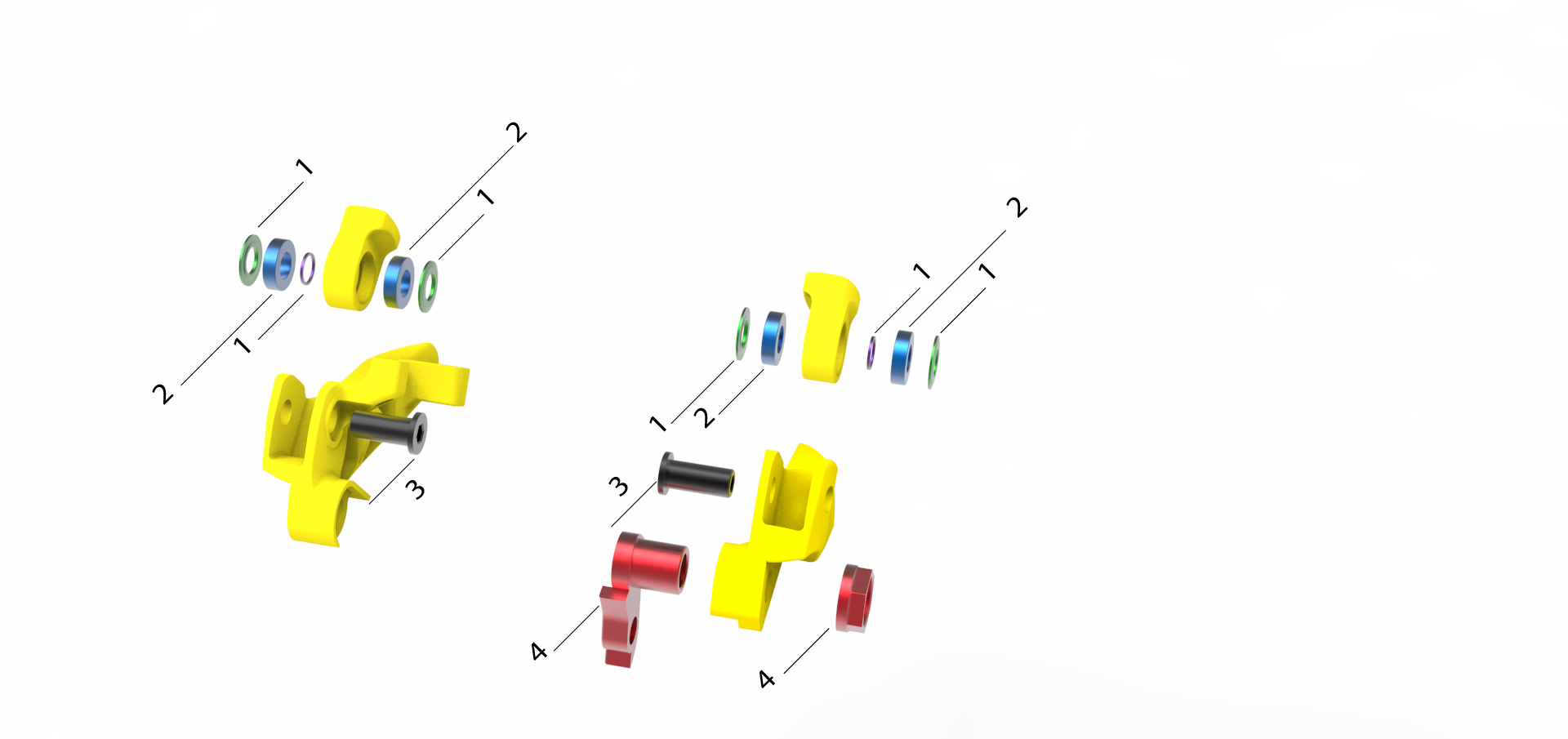

Chainstays / Seatstays

Index	Ref	Nom		Photo
1	W15WASHSTKIT	RONDELLES BASES / HAUBANS POUR META V4
2	W19EBSUP24JRV4	ROULEMENTS ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800
3	W15AXLESTCS	KIT AXE BASES / HAUBANS POUR META V4	10-15 N.m
4	W15RHRMETA	PATTE DE DERAILLEUR POUR META HT / V4 / V4.2 / POWER	15 N.m
