SUPREME FR 2 2014

https://tech.commencal.com/tech/index.php?fiche=106&lang=

SPECS

FRAME SUPREME FR 7005, alloy hydroformed, light version internal routing, 180mm travel.
SHOCK FOX van r, 300lbs on size S, 350lbs on size M, 400lbs on size L
FORK FOX 36 van r 180mm o/b 11/8 qr20
HEADSET NECO semi integrated, tapered zs44/56, 11/8 lower washer sealed bearings
STEM ALPHA, alloy 2014 forged, 50mm, 0° rise, ø31,8mm
BAR ALPHA, alloy 7075 db, 0.75rise, 780mm, ø31,8mm
GRIPS COMMENCAL 2014 lock on, outside ø30mm, soft compound
BRAKES FORMULA rx 200mm/200mm with x7 matchmaker
SHIFTERS SRAM X7 1x10 speed
CHAIN DEVICE e-13 ls1 with bash
REAR MECH SRAM x7 type 2 10 speed
BOTTOM BRACKET RACE FACE Pressfit 107mm sealed bearings
CRANKS RACE FACE Chester, 36th 170mm
CHAIN YABAN SH10CR, with quick link connector
CASSETTE SRAM pg1030 11-28t
RIMS JALCO 26 32h double wall, 32mm, pin joint disc version
HUBS JOYTECH 32h DH, sealed bearings, light steel cassette body
SPOKES stainless steel 2mm black - brass 12mm black, lockseal
TIRES MAXXIS high roller II 26x2.40, 2 ply, Supertacky
SEATPOST COMMENCAL alloy no offset ø31,6mm, 300mm
SADDLE COMMENCAL SUPREME by Velo, CrMo rails

SIZES S / M / L
COLOUR Neon Green matt finish
BIKE WEIGHT(kg/lbs) 17,70
FRAME WEIGHT(kg/lbs) N/A
NOTE WELLGO flat pedals low profile, replacable pins, supreme chainstay protector, SUPREME rear shock mudguard

VIP frame available & frame available

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	259 mm	260 mm
ARRIÈRE	261 mm	259 mm

GEOMETRIE

TAILLE	1 - LONGUEUR TUBE DE SELLE	2 - ANGLE TUBE DE SELLE	3 - ANGLE DE DIRECTION	4 - HAUTEUR DE DOUILLE	5 - EMPATTEMENT	6 - LONGUEUR TUBE SUPERIEUR	7 - LONGUEUR BASES	8 - HAUTEUR BOITIER DE PEDALIER	9 - HAUTEUR DE FOURCHE	10 - HAUTEUR A L'ENTREJAMBE	11 - PROJETE HORIZONTAL BB/TT	12 - PROJETE VERTICAL BB/TT
S	400,0	62,5	64,0	120,0	1142,0	561,0	437,0	4,0	565,0	730,0	365,0	592,0
M	400,0	62,5	64,0	120,0	1162,0	581,0	437,0	4,0	565,0	730,0	385,0	592,0
L	440,0	62,5	64,0	120,0	1184,0	605,0	437,0	4,0	565,0	730,0	410,0	592,0

Dropouts

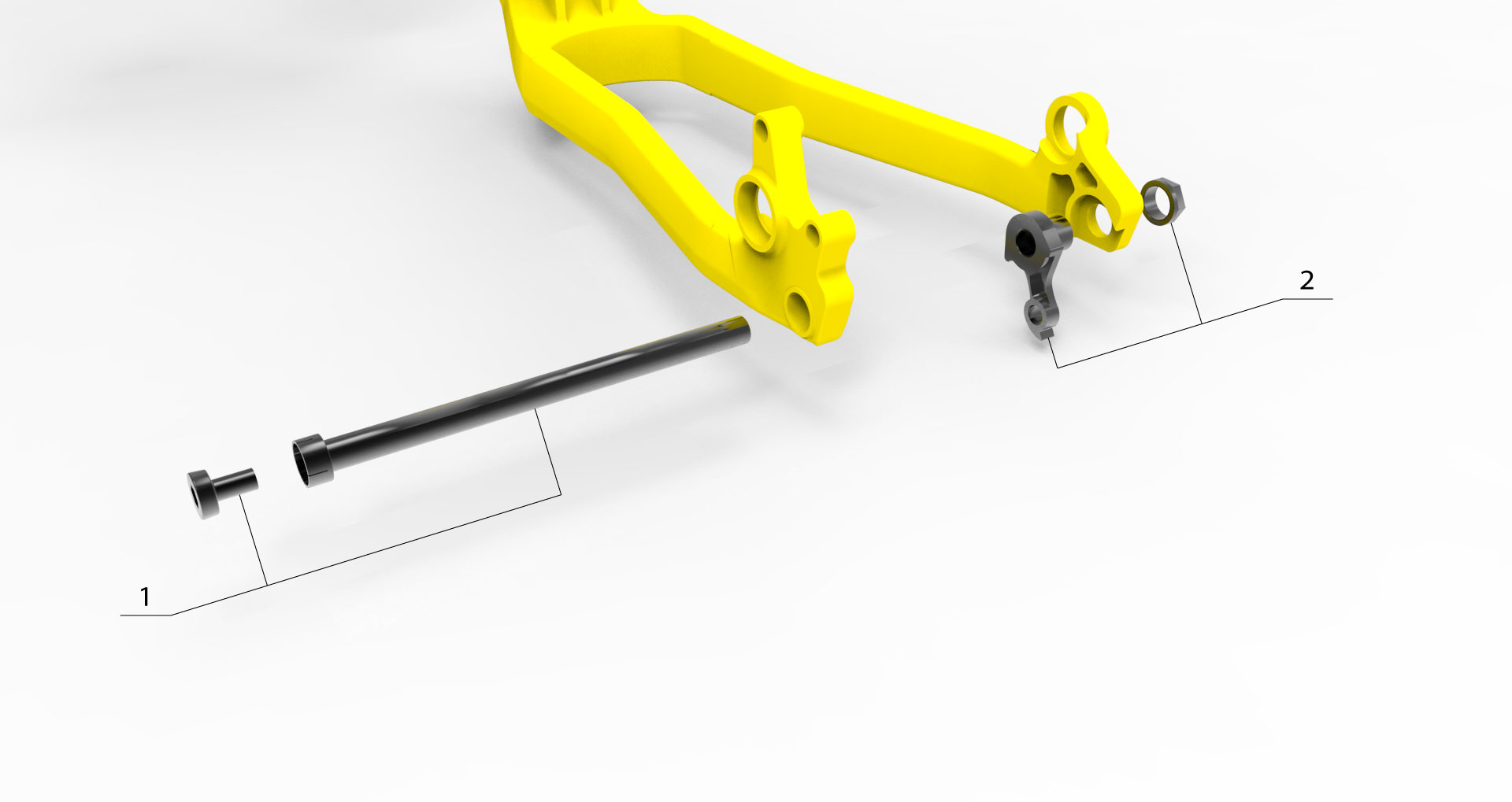

Index	Ref	Nom		Photo
1	W13SUPFRAXLE2	REAR WHEEL AXLE SUPREME FR / PARK	9-12 N.m
2	W13RHRSUPFR	REAR HANGER FOR SUPREME DH V3 / FR / PARK & FURIOUS	20-25 N.m

Rear Triangle

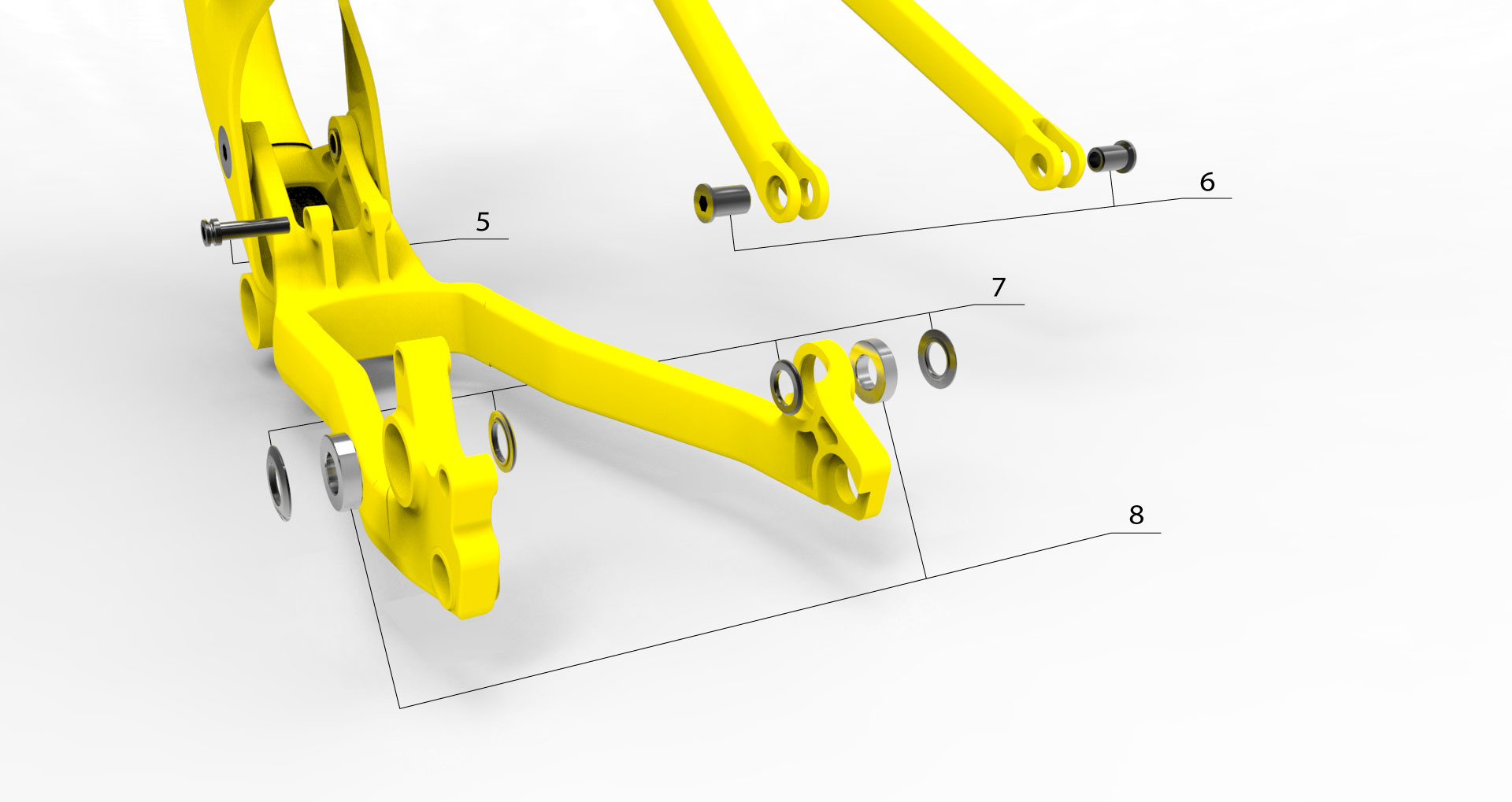

Index	Ref	Nom		Photo
5	W12AXLESHYO	AXE AMORTISSEUR / TRIANGLE ARRIERE SUPREME DH V3 / META V3	12 N.m
6	W12AXLESSCH	AXES CONTACT SYSTEM META V3 ET SUPREME V3	10-15 N.m
7	W12WASHCHST	KIT RONDELLES CONTACT SYSTEM META V3 ET SUPREME V3
8	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

Contact System

Index	Ref	Nom		Photo
10	W12AXLESHLI	AXE AMORTISSEUR / BASCULEUR SUPREME DH V3 / META V3	12 N.m
6	W12AXLESSCH	AXES CONTACT SYSTEM META V3 ET SUPREME V3	10-15 N.m
7	W12WASHCHST	KIT RONDELLES CONTACT SYSTEM META V3 ET SUPREME V3
8	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902
9	W12AXLELINK	AXE BASCULEUR / TRIANGLE AVANT + VIS POUR SUPREME DH V3 et META V3	10-15 N.m

Main Pivot

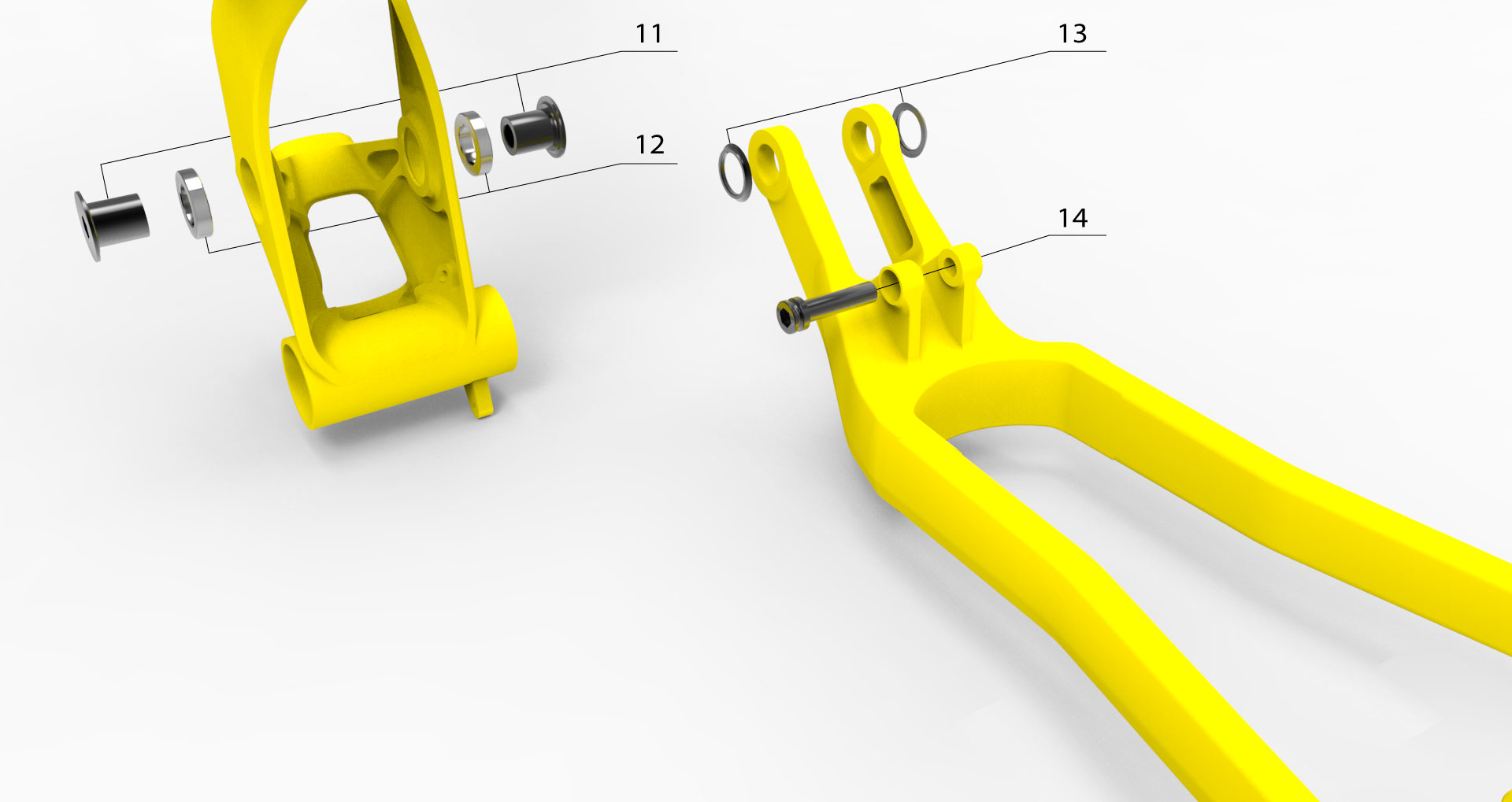

Index	Ref	Nom		Photo
11	W12AXLEMNPVT	MAIN PIVOT AXLE FOR SUPREME DH V3 AND META V3	30-35 N.m
12	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902
13	W12WASHKITMP	MAIN PIVOT WASHERS FOR SUPREME DH V3 AND META V3
14	W12AXLESHYO	AXE AMORTISSEUR / TRIANGLE ARRIERE SUPREME DH V3 / META V3	12 N.m

Rocker

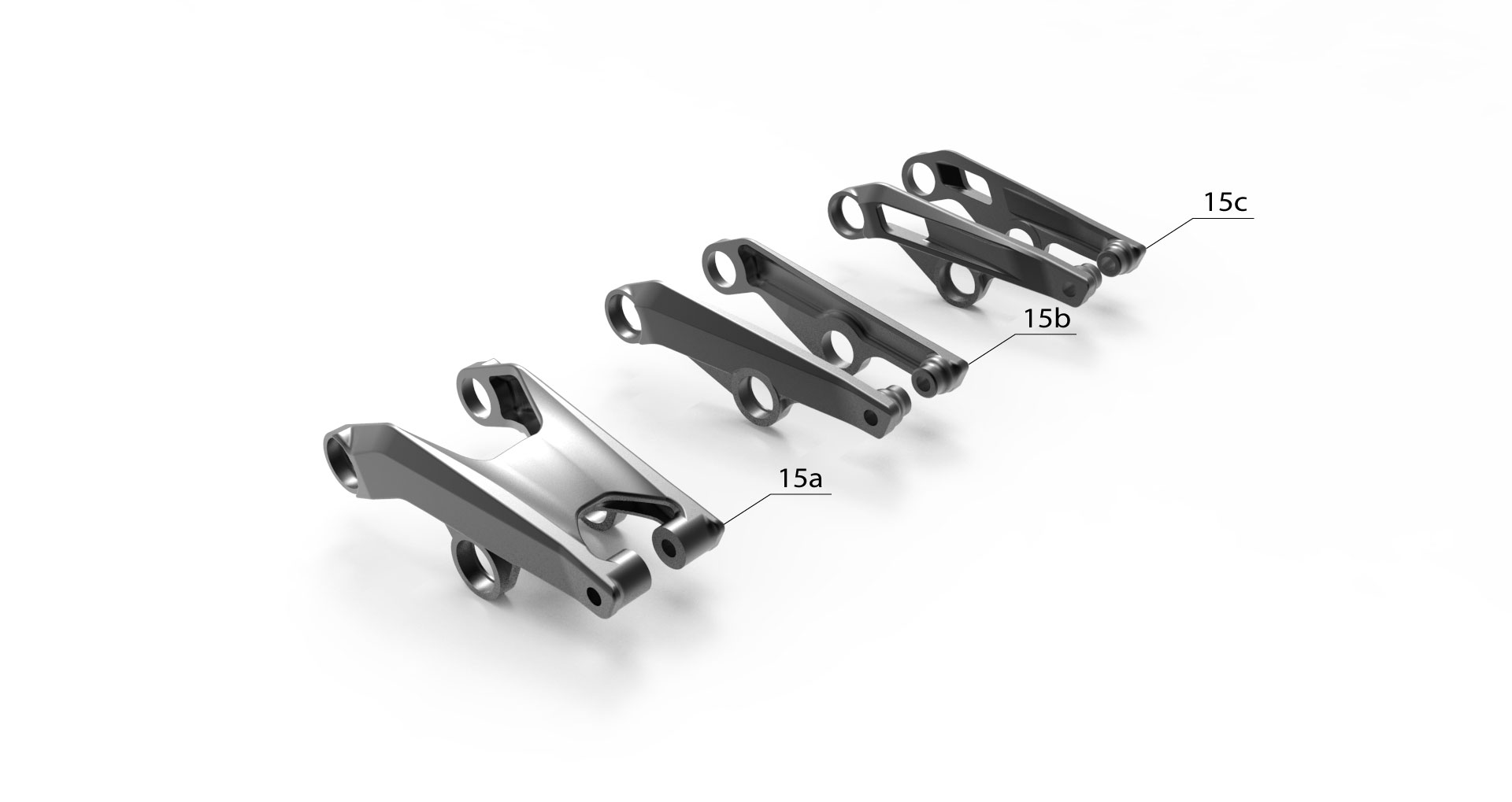

Index	Ref	Nom		Photo
15b	W13ROCKERFR	KIT BASCULEUR POUR SUPREME FR

Mudguard

Index	Ref	Nom		Photo

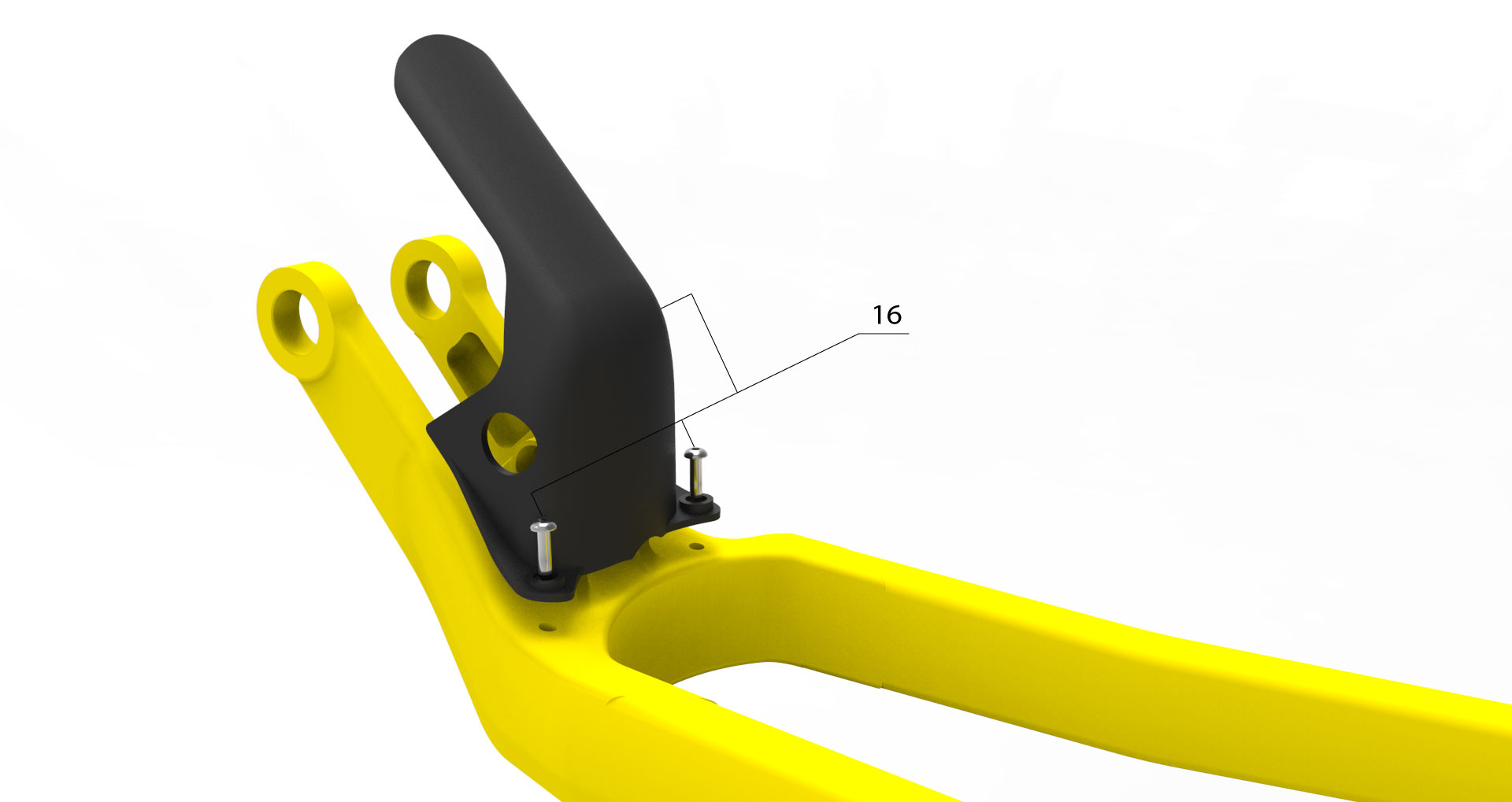

16	W12MUDGUARD	MUD GUARD FOR SUPREME DH V3 / SUPREME FR

Headtube

Index	Ref	Nom		Photo
17	W12HTSEAL	Internal joint passing for Supreme and Meta headtube
