COMMENCAL TECH

2013

VTT COMMENCAL META SL 3 26

https://tech.commencal.com/tech/index.php?fiche=72&lang=

SPECS

FRAME	New Meta SL 120mm
SHOCK	Fox Float CTD
FORK	Fox 32 Float CTD Open cartdrige, QR15, 120mm
HEADSET	FSA Semi integrated Zero Stack tapered
STEM	Commençal VIP OS
BAR	Commençal VIP 0,75" OS 6061, 730mm
GRIPS	New Commençal Lock on
BRAKES	Formula RX 12 180/180
SHIFTERS	NEW Sram Trigger X5 2x10
FRONT / REAR MECH	Sram X7 direct mount 2 speed / Sram X7 10spd
BOTTOM BRACKET	SRAM Included w/crankset
CRANKSET	Sram S1000 39/26 10spd
CHAIN	Yaban 10spd
CASSETTE	Sram PG-1030 11-36
RIMS	Jalco double wall for Commençal
HUBS	Commençal disc by joytech, sealed bearings, 15QR front/142x12 rear
SPOKES	Stainless black 64p 3x lacing
TYRES	Onza Ibex 2,25 front, Onza Canis 2,25 Rear, Skinwall
SEATPOST	Commençal VIP 31,6mm
SADDLE	NEW Commençal Race by Velo
PEDALS INCLUDED	No

TECH

BICYCLE TYPE	Full suspended Trail
FRAME MATERIAL	NEC + ULTRA SL (Aluminium 6066 Triple butted
SHOCK TRAVEL	120mm
SHOCK LENGTH / STROKE	190x51mm
PIGGY BACK SHOCK COMPATIBLE	No
SHOCK SPACER DIMENSION	22,2x10mm
RECOMMENDED / MAX FORK HEIGHT	490 mm / 500 mm
HEADSET DIMENSION	Tapered 1"1/8, 1/5"
HEADSET TYPE	Semi-integrated ZS44 / ZS56
MAXIMUM TYRE WIDTH (ETRTO)	57mm
DISC BRAKE STANDARD	Postmount 160mm
REAR ROTOR MAX SIZE	180mm
SEATPOST / SEAT CLAMP DIAMETER	31,6mm / 34,9mm
BOTTOM BRACKET TYPE	Press fit BB 92
ISCG	ISCG05
FRONT DERAILLEUR TYPE	Direct Mount
REAR HUB COMPATIBILITY	142x12mm

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	255 mm	258 mm
ARRIÈRE	257 mm	255 mm

GEOMETRIE

Dropouts

Index	Ref	Nom		Photo
1	W12AXLESSCH	AXES CONTACT SYSTEM META V3 ET SUPREME V3	10-15 N.m
2	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902
3	W12WASHCHST	KIT RONDELLES CONTACT SYSTEM META V3 ET SUPREME V3
4	W12RHRMETA	REAR HANGER FOR META V3, SX, SL, SUP JR & 24	15 N.m

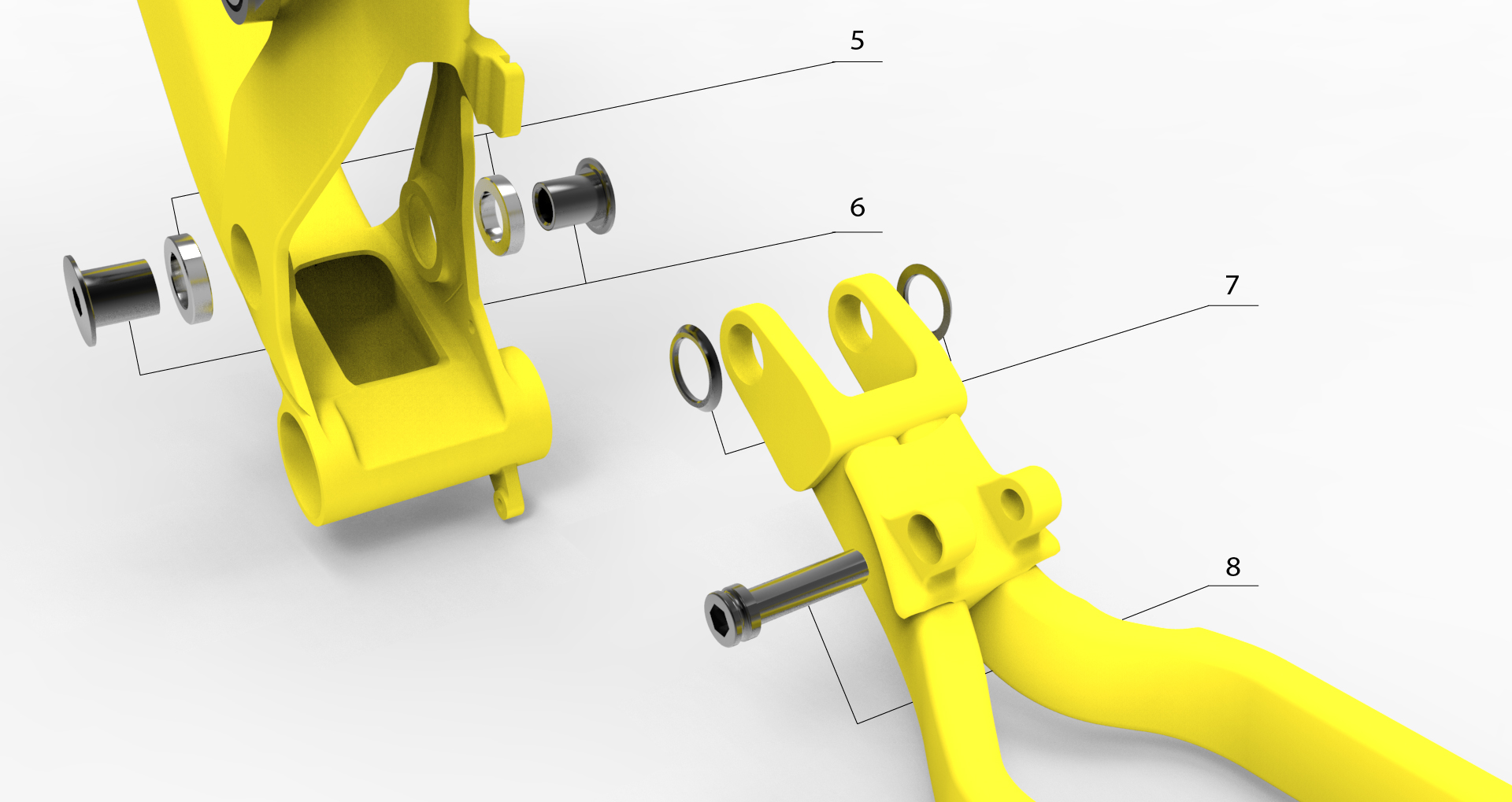

Main Pivot

Index	Ref	Nom		Photo
5	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902
6	W12AXLEMNPVT	MAIN PIVOT AXLE FOR SUPREME DH V3 AND META V3	30-35 N.m
7	W12WASHKITMP	MAIN PIVOT WASHERS FOR SUPREME DH V3 AND META V3
8	W12AXLESHYO	AXE AMORTISSEUR / TRIANGLE ARRIERE SUPREME DH V3 / META V3	12 N.m

Contact System

Index	Ref	Nom		Photo
1	W12AXLESSCH	AXES CONTACT SYSTEM META V3 ET SUPREME V3	10-15 N.m
10	W12AXLESHLI	AXE AMORTISSEUR / BASCULEUR SUPREME DH V3 / META V3	12 N.m
11	W13ROCKERSL	KIT BASCULEUR POUR META SL
2	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902
3	W12WASHCHST	KIT RONDELLES CONTACT SYSTEM META V3 ET SUPREME V3
9	W12AXLELINK	AXE BASCULEUR / TRIANGLE AVANT + VIS POUR SUPREME DH V3 et META V3	10-15 N.m

PARTS
