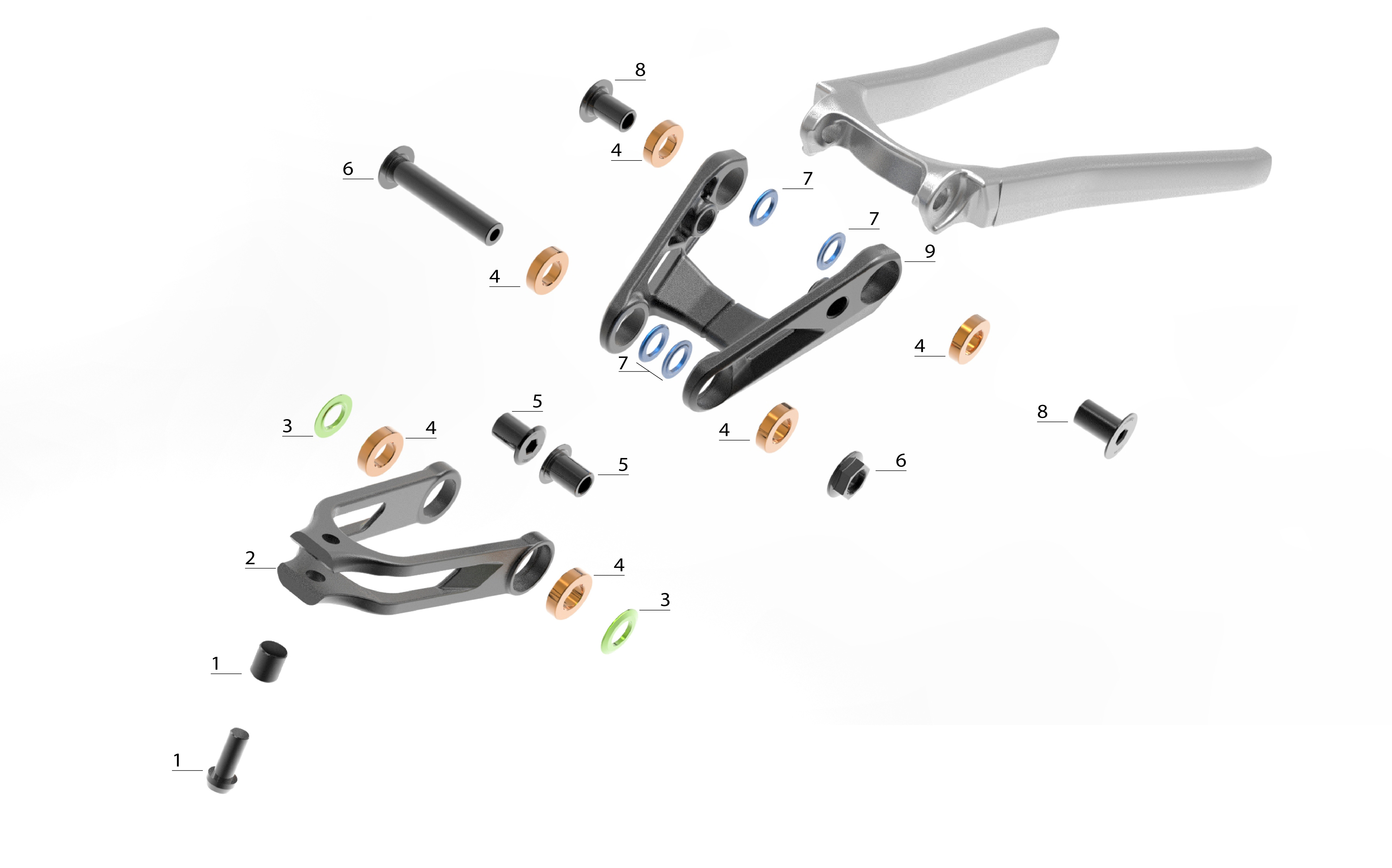

| Index | Ref | Nom | Photo | |
| 1 | W19MPWAXLESHCL | SHOCK / CLEVIS AXLE META POWER | 9 N.m |
|
| 2 | W20MPWCLEVIS | CLEVIS META POWER V2 |
|
|
| 3 | W20MPWWASHERRKCL | ROCKER / CLEVIS WASHERS |
|
|
| 4 | W19EB6902 | BEARING ENDURO BEARING 6902 LLU MAX | 15 x 28 x 7 |
|
| 5 | W20MPWAXLERKCL | ROCKER / CLEVIS AXLES META POWER V2 | 10-12 N.m |
|
| 6 | W20MPWAXLERKST | ROCKER / SEAT TUBE AXLES META POWER V2 | 10-12 N.m |
|
| 7 | W20MPWWASHERRK | ROCKER WASHERS META POWER V2 |
|
|
| 8 | W20MPWAXLERKSS | ROCKER / SEAT STAYS AXLES META POWER V2 | 10-12 N.m |
|
| 9 | W20MPWROCKER | BASCULEUR META POWER V2 |
|
|
| BEARING KIT | W21EBMETA29 | ENDURO BEARINGS META 29 | 2 x 6804 / 6 x 6902 / 4 x 6800 |
|

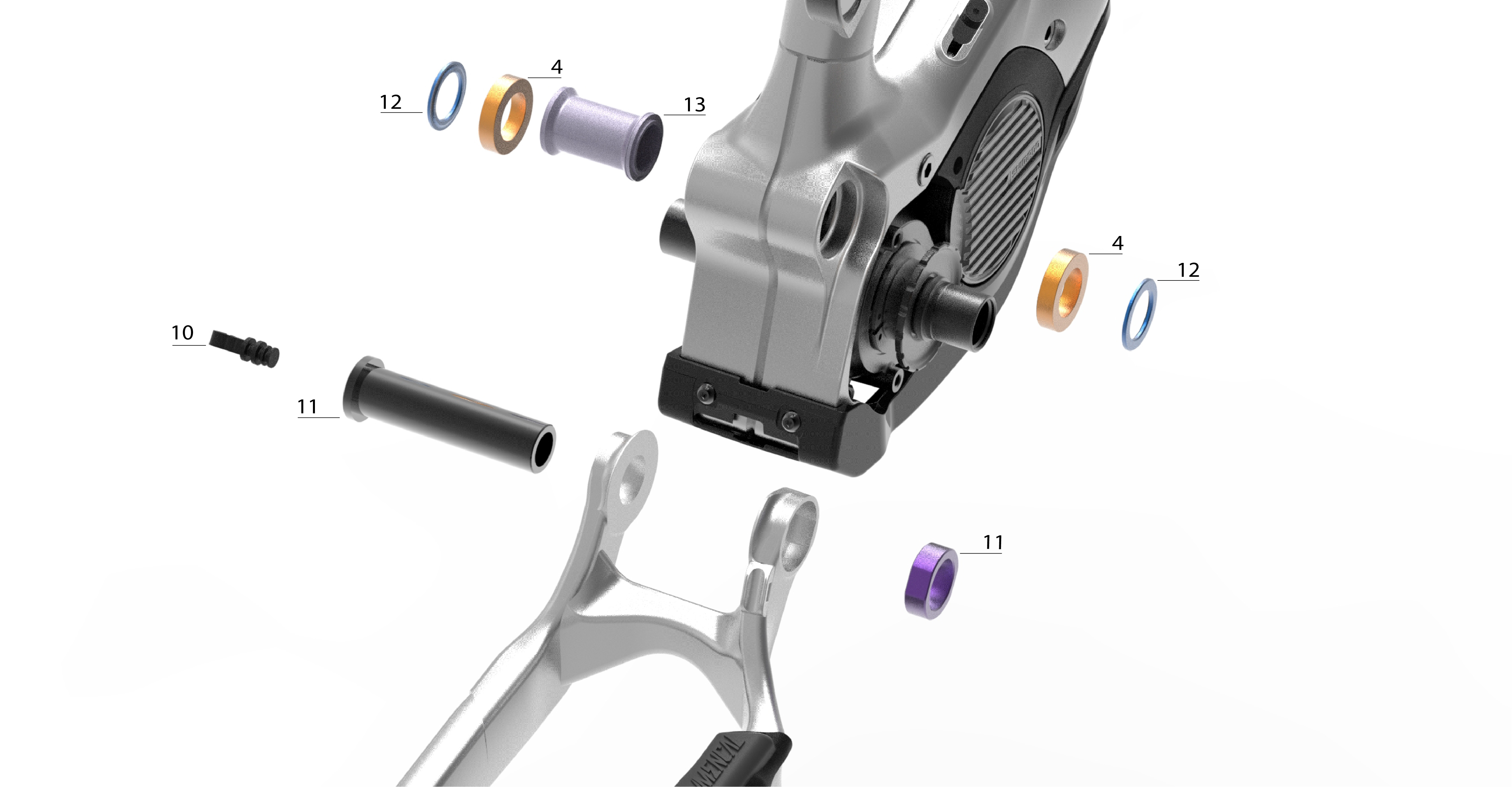

| Index | Ref | Nom | Photo | |
| 10 | W20MPWHOSEGUIDE | HOSE GUIDE FOR MAIN PIVOT META POWER |
|
|
| 11 | W18MPWAXLEMP | MAIN PIVOT AXLE META POWER | 30-35 N.m |
|
| 12 | W18MPWWASHERMP | MAIN PIVOT WASHER META POWER |
|
|
| 13 | W18MPWMPSPACER | MAIN PIVOT SPACER FOR META POWER |
|
|
| 4 | W19EB6804 | BEARING ENDURO BEARING 6804 LLU MAX | 20 x 32 x 7 |
|
| BEARING KIT | W21EBMETA29 | ENDURO BEARINGS META 29 | 2 x 6804 / 6 x 6902 / 4 x 6800 |
|

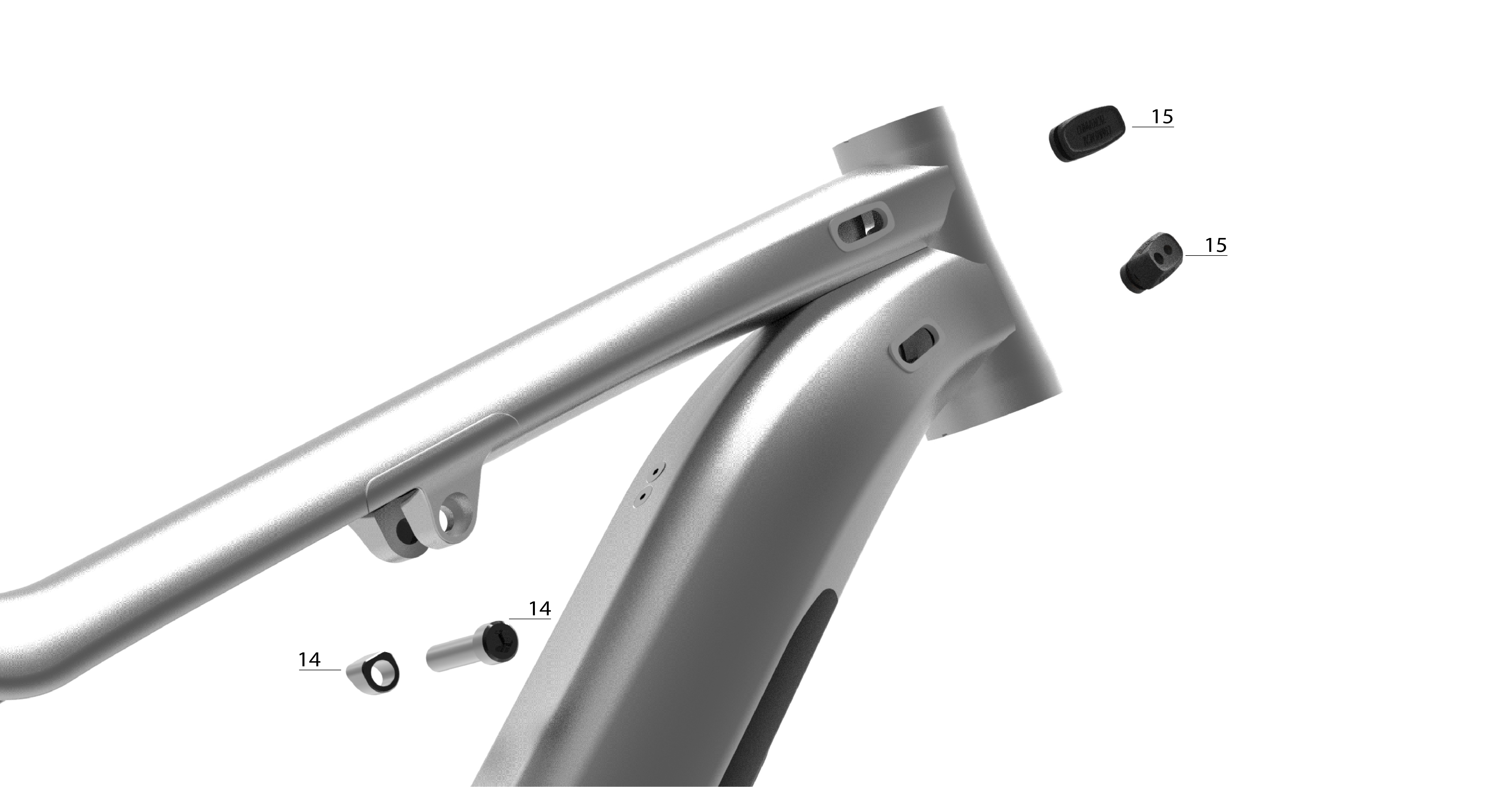

| Index | Ref | Nom | Photo | |
| 14 | W21MPWAXLESHTT | SHOCK / TOP TUBE AXLE KIT META POWER V2.2 | 9-12 N.m |
|
| 15 | W18SEAL1H | INTERNAL ROUTING SEAL - 1 HOLE |
|
|
| 15 | W18SEAL2H | INTERNAL ROUTING SEAL - 2 HOLES |
|
|
| 15 | W18SEALNOH | INTERNAL ROUTING SEAL - NO HOLE |
|
| Index | Ref | Nom | Photo | |

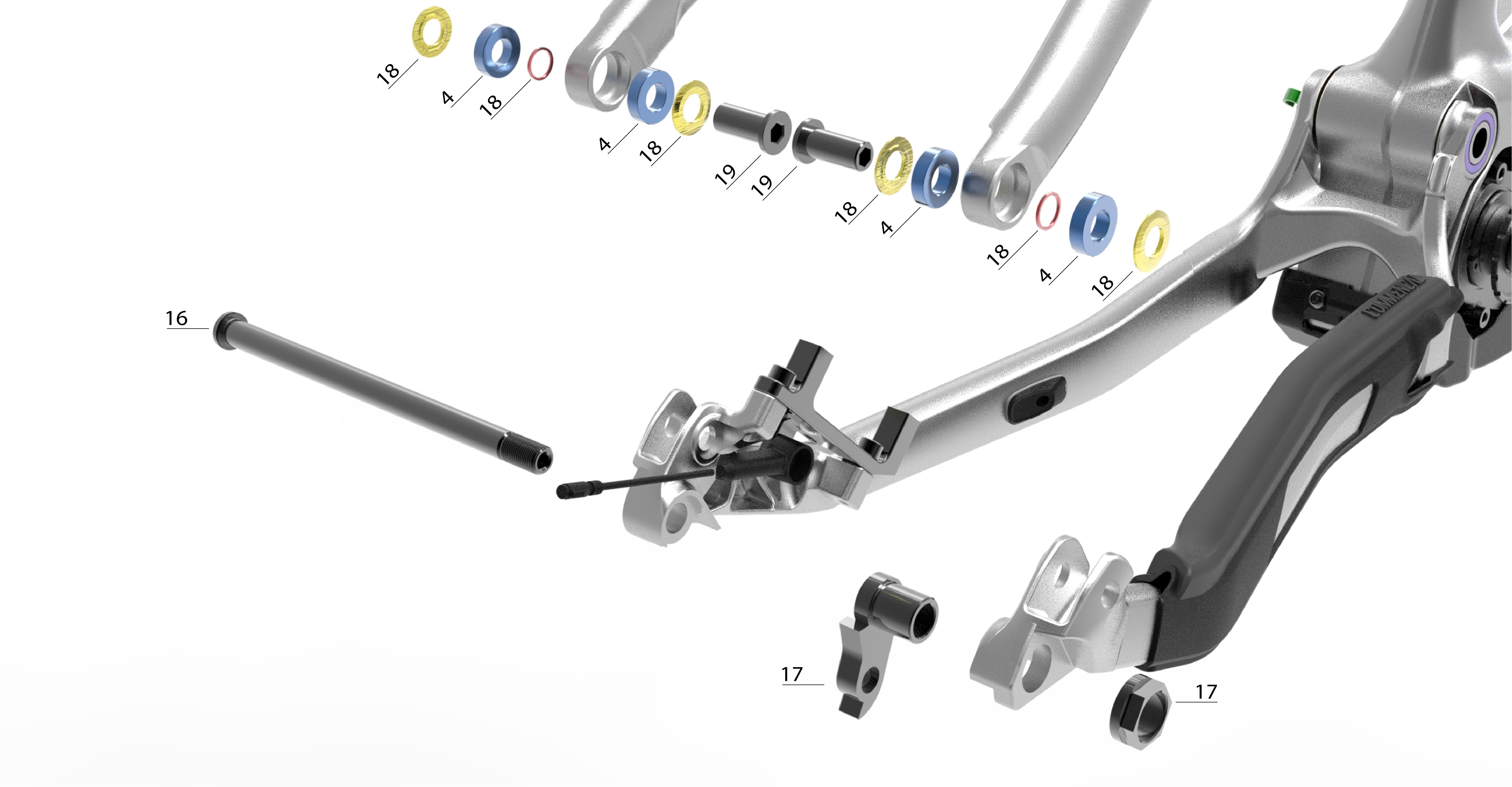

| 16 | W19AXLEWHEELBOOST | REAR WHEEL AXLE - MAXLE BOOST STANDARD | 12 N.m |
|
| 17 | W15RHRMETA | REAR HANGER FOR META HT / V4 / V4.2 / POWER | 15 N.m |
|
| 18 | W15WASHSTKIT | WASHER KIT SEASTSTAY/CHAINSTAY FOR META FROM 2015 |
|
|
| 19 | W15AXLESTCS | AXLE KIT CHAINSTAY SEATSTAY FOR META FROM 2015 | 10-15 N.m |
|
| 4 | W21EB6800 | ENDURO BEARINGS 6800 LLU MAX | 10 x 19 x 5 |
|
| BEARING KIT | W21EBMETA29 | ENDURO BEARINGS META 29 | 2 x 6804 / 6 x 6902 / 4 x 6800 |
|
| Index | Ref | Nom | Photo | |

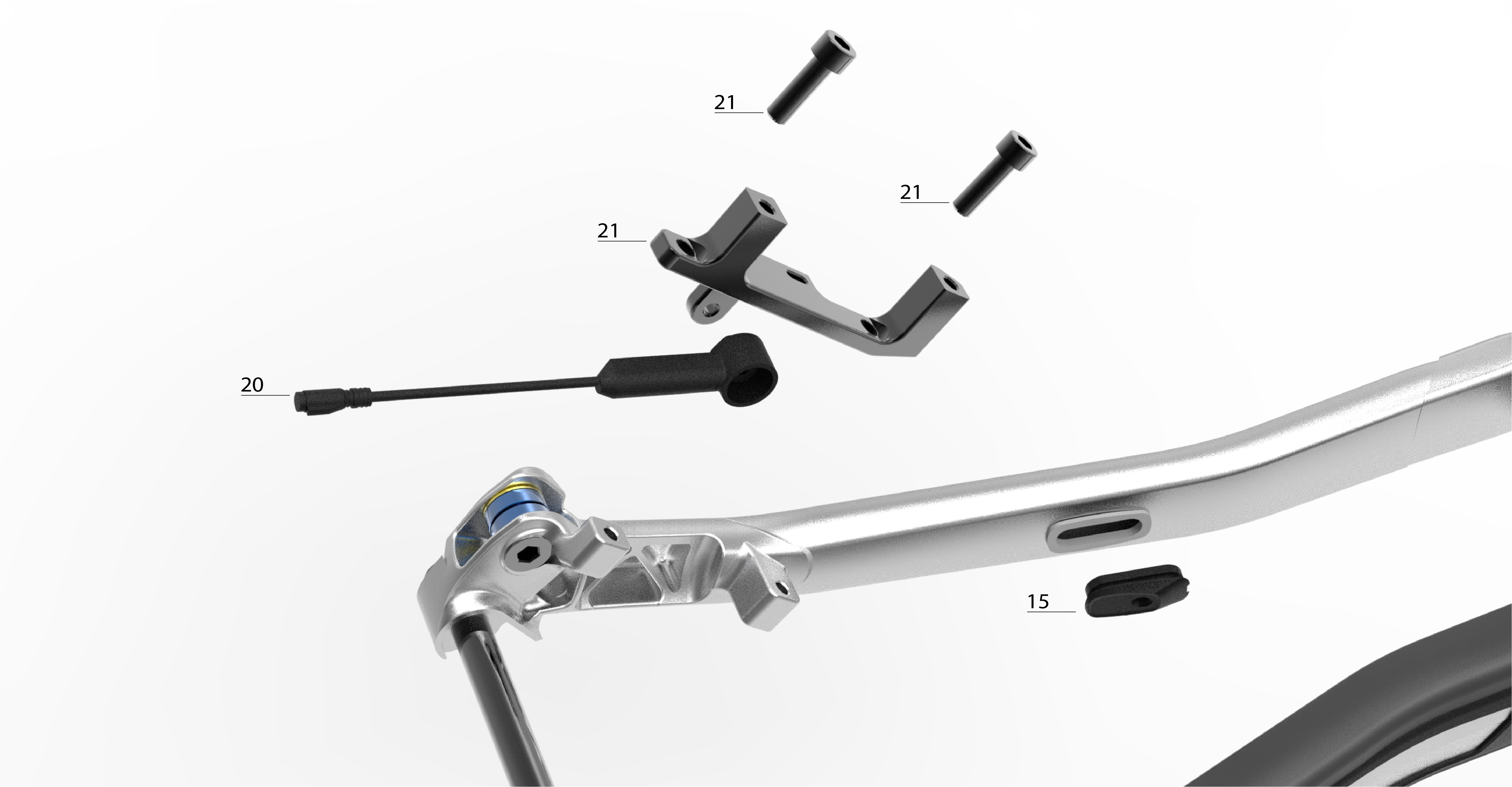

| 15 | W18SEAL1H | INTERNAL ROUTING SEAL - 1 HOLE |
|
|
| 20 | W21SHIMEWSS301 | SPEED SENSOR 800 MM SHIMANO EW-SS301 |
|
|
| 21 | W20MPWBRAKEH200 | 200 MM REAR BRAKE MOUNT META POWER V2 |
|
|
| 21 | W20MPWBRAKEH220 | 220 MM REAR BRAKE MOUNT META POWER V2 |
|

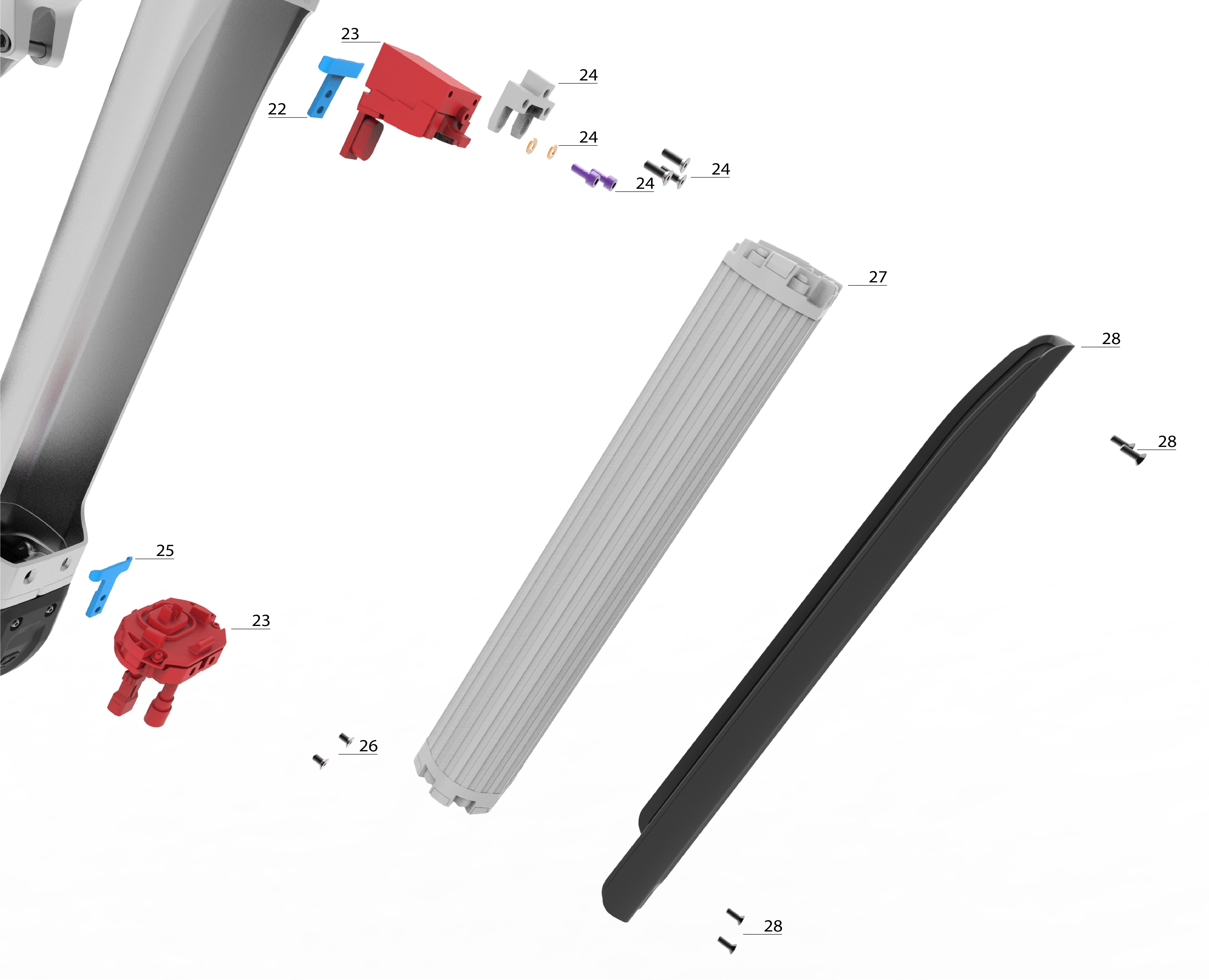

| Index | Ref | Nom | Photo | |
| 22 | W21MPWCABLEGUIDE | CABLE GUIDES META POWER V2.2 |
|
|
| 23 | W20SHIMIBME80311A | INTEGRATED BATTERY MOUNT SHIMANO E8000 META POWER |
|
|
| 24 | W21MPWBATMOUT | SHOCK / TOP TUBE AXLE KIT META POWER V2.2 |
|
|
| 25 | W21MPWCABLEGUIDE | CABLE GUIDES META POWER V2.2 |
|
|
| 26 | W21MPWBOLTBATMOUNT | BOTTOM BATTERY MOUNT ASSEMBLING BOLTS META POWER V2.2 |
|
|
| 27 | A21BATTSHIMI630 | BATTERY SHIMANO STEPS BT-E8036A 630WH |
|
|
| 28 | W21MPWPROTECBAT | INTERNAL BATTERY PROTECTOR META POWER V2.2 |
|
| Index | Ref | Nom | Photo | |

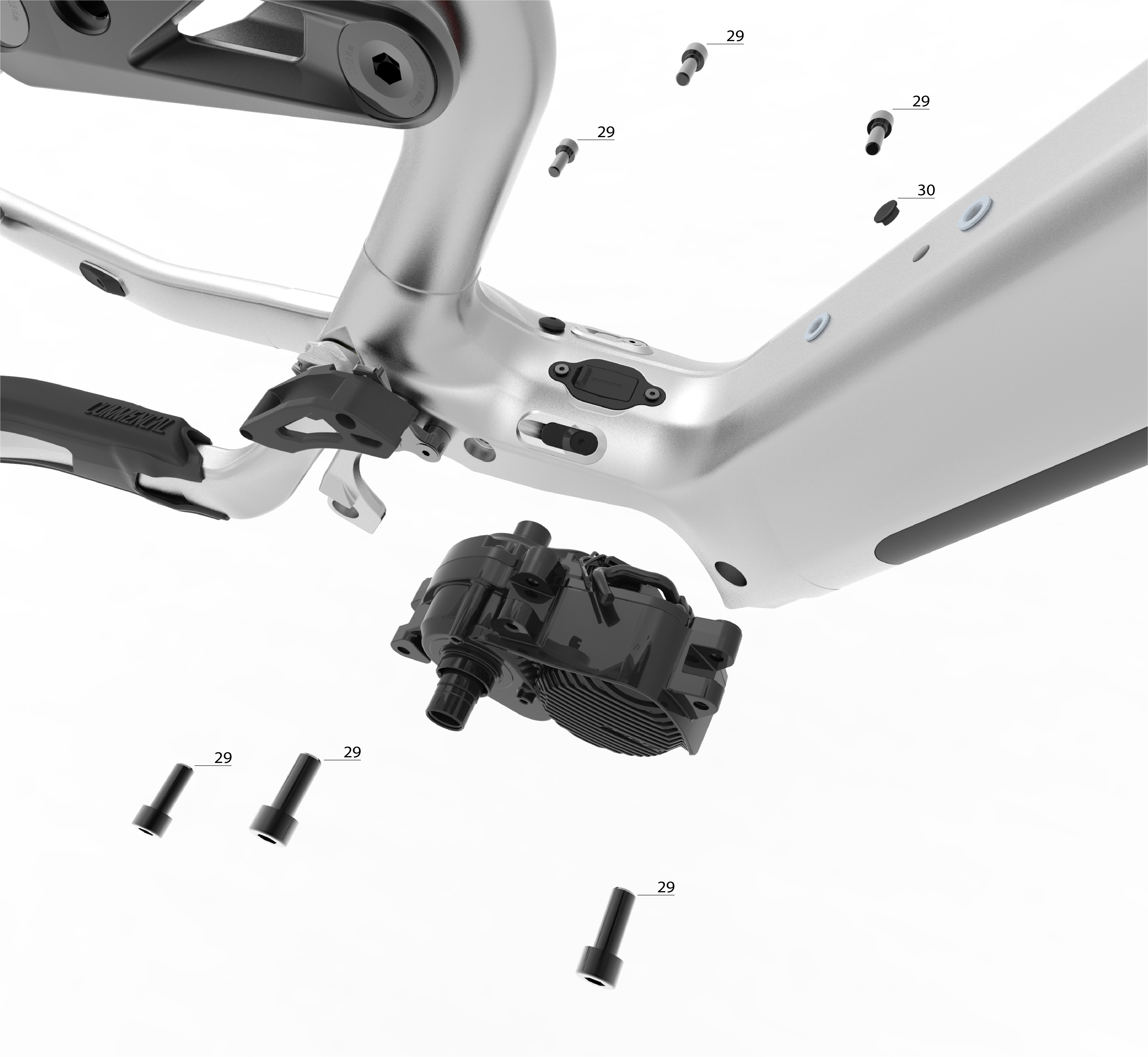

| 29 | W20MPWBOLTMOTOR | FIXING BOLT SHIMANO MOTOR / FRAME META POWER | 15 N.m |
|
| 30 | W21MPWCAP | DOWN TUBE CAP META POWER V2.2 |
|

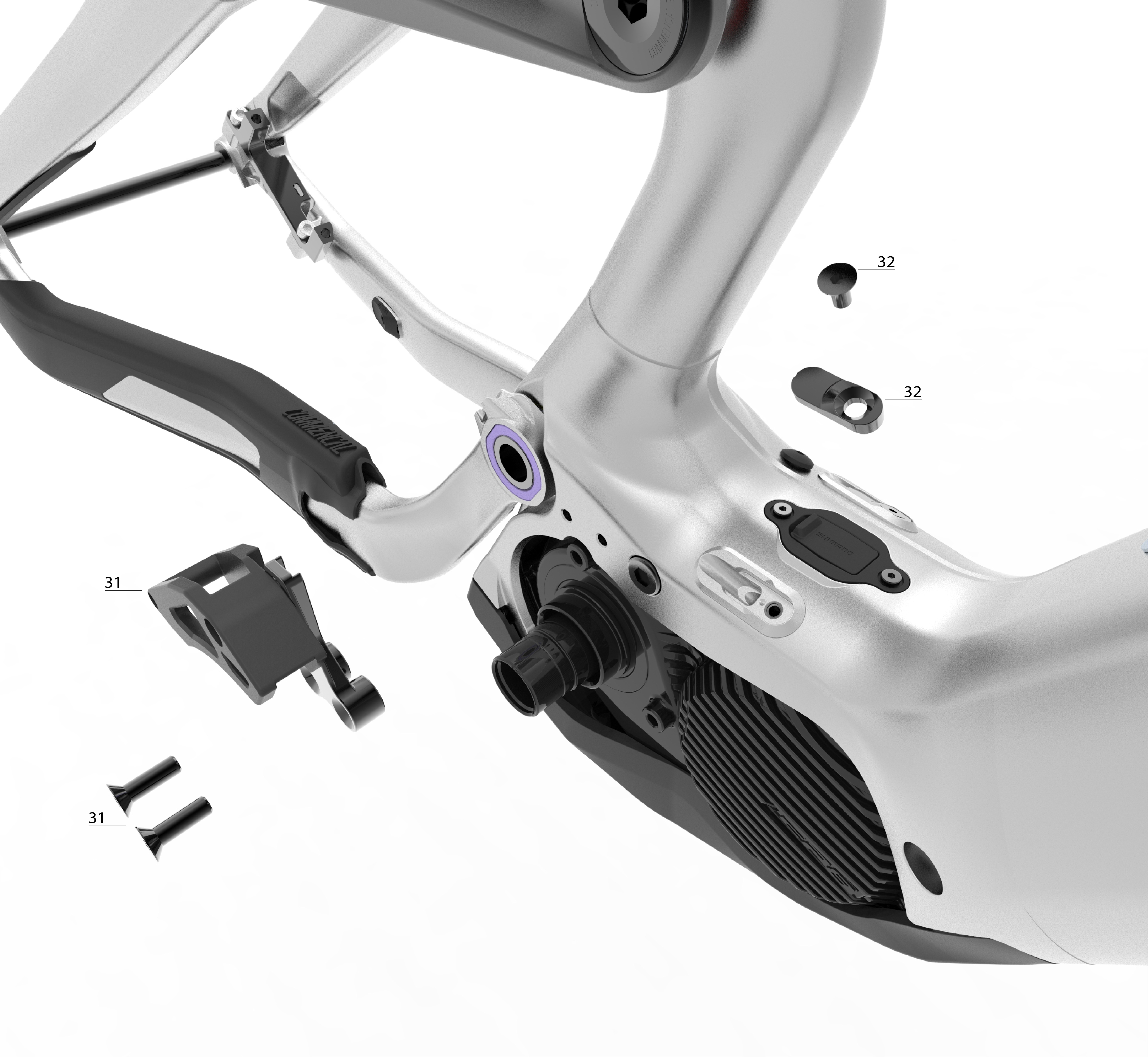

| Index | Ref | Nom | Photo | |
| 31 | A21ALPHACHGUEP8DM | RIDE ALPHA MEDIUM CHAIN GUIDE 34T FOR EP8 |
|
|
| 32 | W19CLHCABLEGUIDEB | BOTTOM CABLE GUIDE CLASH | 3 N.m |
|

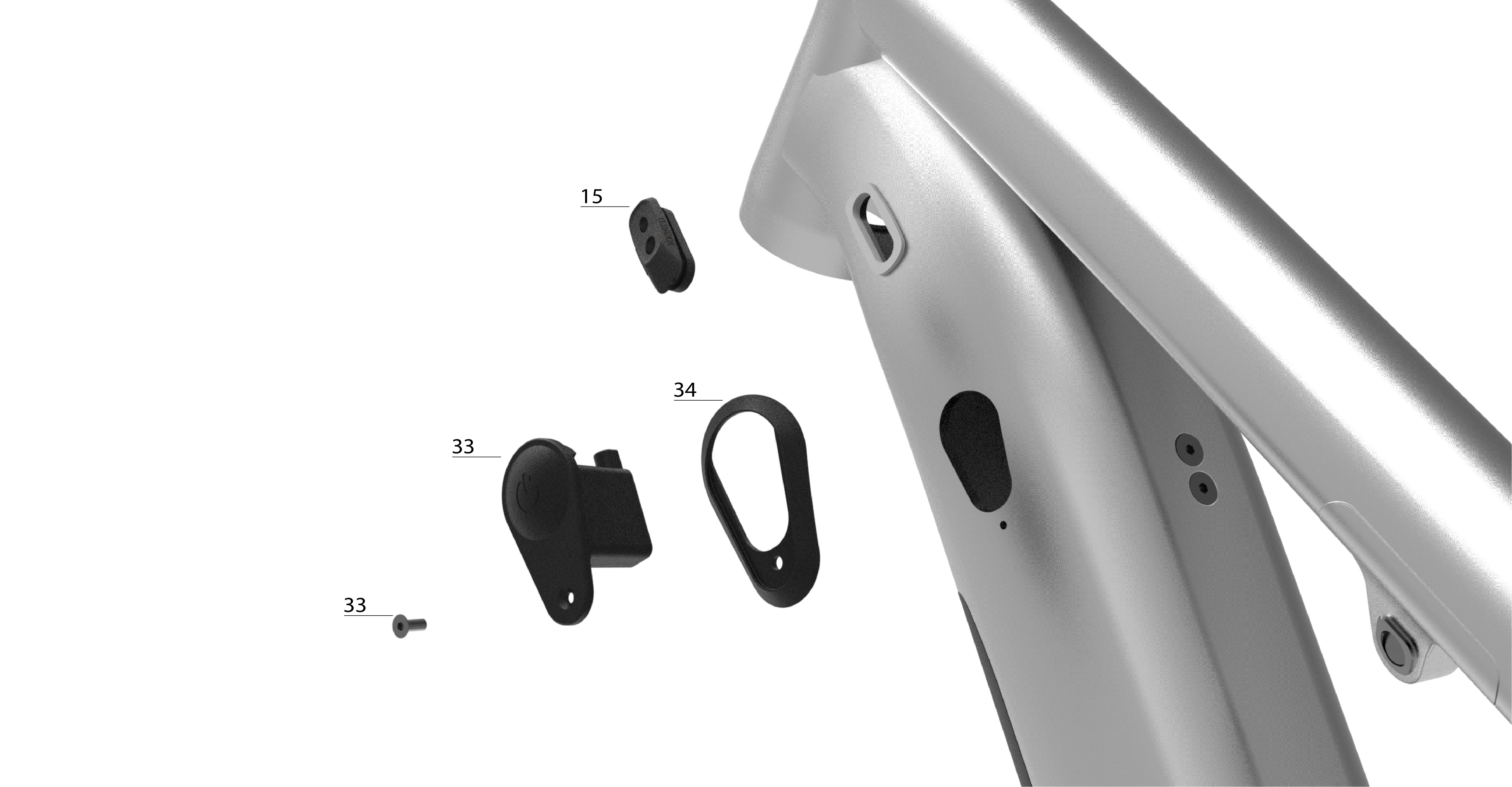

| Index | Ref | Nom | Photo | |
| 15 | W18SEAL2H | INTERNAL ROUTING SEAL - 2 HOLES |
|
|
| 15 | W18SEAL1H | INTERNAL ROUTING SEAL - 1 HOLE |
|
|
| 33 | W20SHIMIEWSW100A | SATELLITE POWER SWITCH SHIMANO E8000 META POWER INTERNAL BATTERY |
|
|
| 34 | W20MPWSEALSWITCH | ON / OFF SWITCH GROMMET META POWER |
|

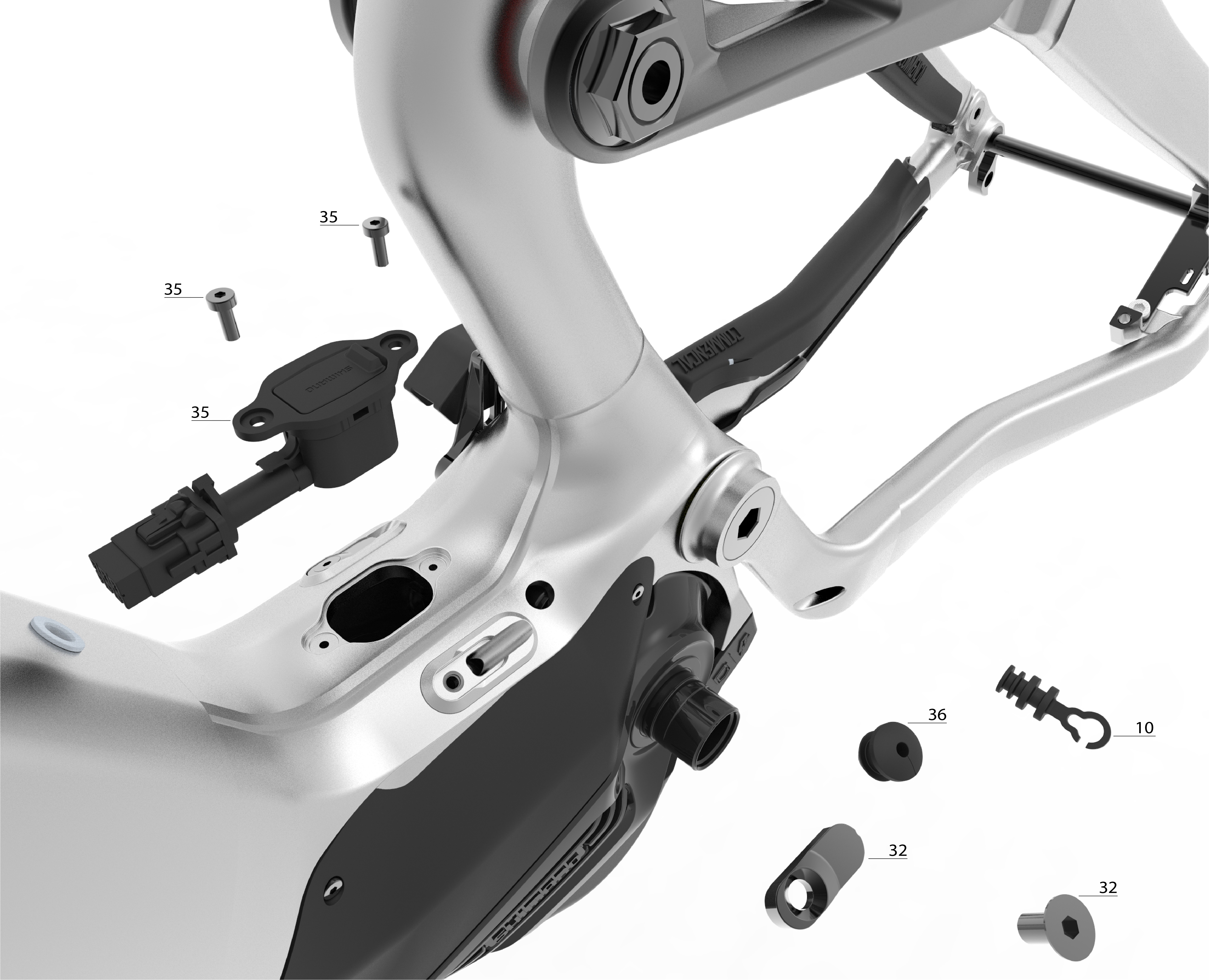

| Index | Ref | Nom | Photo | |
| 10 | W20MPWHOSEGUIDE | HOSE GUIDE FOR MAIN PIVOT META POWER |
|
|
| 32 | W19CLHCABLEGUIDEB | BOTTOM CABLE GUIDE CLASH | 3 N.m |
|
| 35 | W20SHIMIEWCP100A | CHARGING PORT SATELLITE SHIMANO E8000 META POWER |
|
|
| 36 | W20MPWSEALSENSOR | SPEED SENSOR CABLE GROMMET META POWER |
|
| Index | Ref | Nom | Photo | |

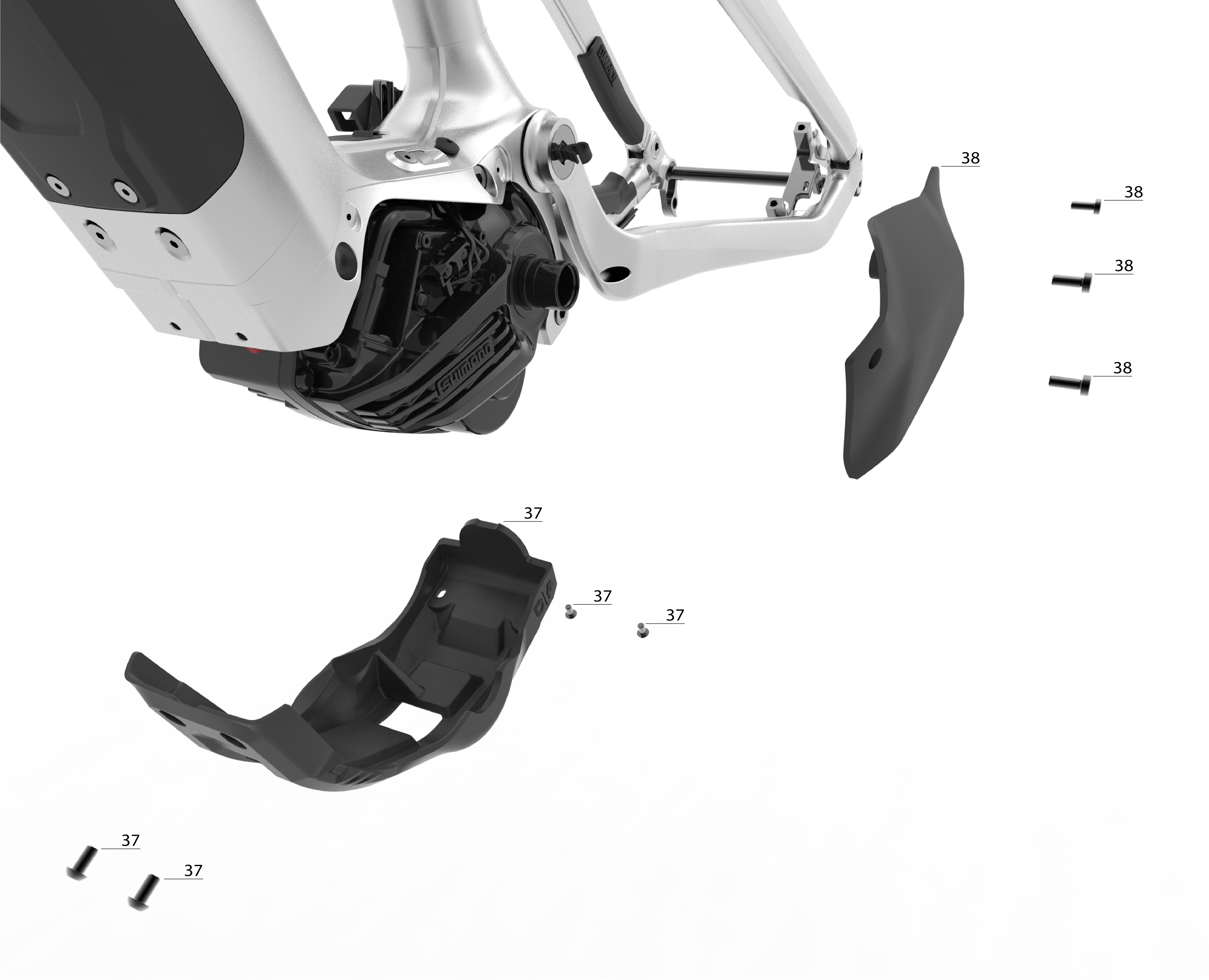

| 37 | W21MPWPROTECMT | DRIVE UNIT PROTECTOR META POWER V2.2 | 3 N.m |
|
| 38 | W21MPWDUCOVER | DRIVE UNIT LEFT COVER SHIMANO EP8 META POWER V2.2 |
|
| Index | Ref | Nom | Photo | |

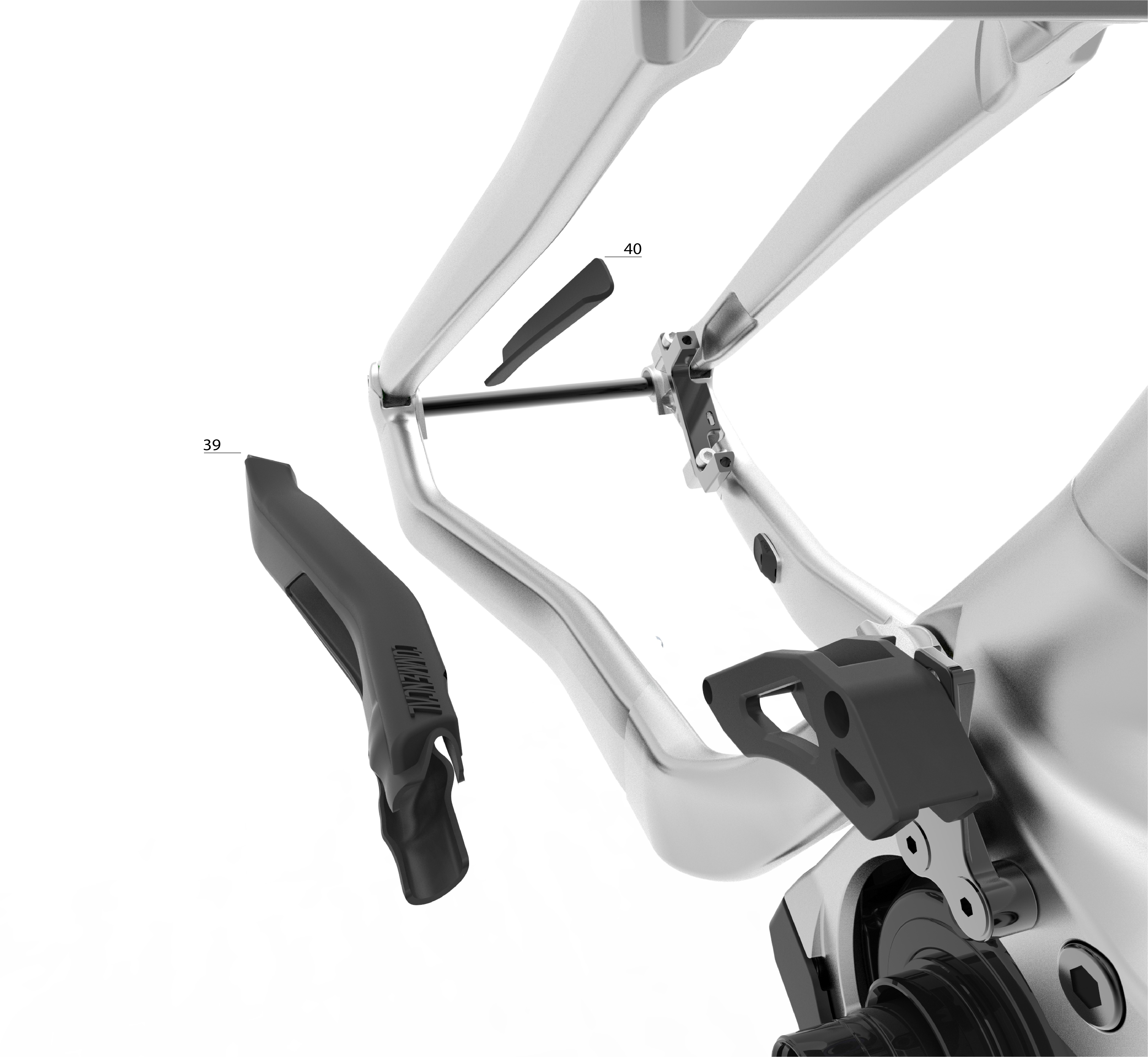

| 39 | W19MPWPROTECCS | CHAIN STAY PROTECTOR META POWER |
|
|
| 40 | A16SSTPROTECMETAV4 | SEATSTAY PROTECTOR FOR META V4 |
|
