META HT SX 26 2014

https://tech.commencal.com/tech/index.php?fiche=88&lang=

SPECS

FRAME META Hardtail SX, alloy 6061 triple butted, top tube hiden cable path
FORK XFUSION velvet RL, 15qr lockx, 140mm
HEADSET NECO semi integrated, zs44
STEM ALPHA Fr, alloy 2014 forged, 50mm, 0° rise, ø31,8mm
BAR ALPHA, alloy 6061db, 0.75rise, 750mm, ø31,8mm
GRIPS COMMENCAL 2014 lock on, outside ø30mm, soft compound
BRAKES TEKTRO HDC330 hydraulic disc brake 180mm/180mm, with reach adjustment
SHIFTERS SRAM x5 1x9 speed
REAR MECH SRAM x5 9 speed
BOTTOM BRACKET NECO isis bb 68mm sealed bearings
CRANKS SAMOX isis, alloy 32th chainring, 170mm
CHAIN DEVICE E13 LS1
CHAIN YABAN S9
CASSETTE SRAM pg950 11-34t
RIMS JALCO 26" 32h double wall, 24,5mm, pin joint, disc version
HUBS JOYTECH 32h, loose ball
SPOKES Steel 1,8mm black - brass 12mm black
TIRES Kenda Nevegal 26x2,35 front and rear
SEATPOST COMMENCAL alloy no offset, ø31,6mm, one piece design, 350mm
SEATPOST CLAMP Quick release
SADDLE COMMENCAL meta, CrMo rails

SIZES S / M / L / XL
COLOUR Neon Pink Matt Finish
BIKE WEIGHT(kg/lbs) N/A
FRAME WEIGHT(kg/lbs) N/A

Frame available

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	268 mm	271 mm
ARRIÈRE	270 mm	268 mm

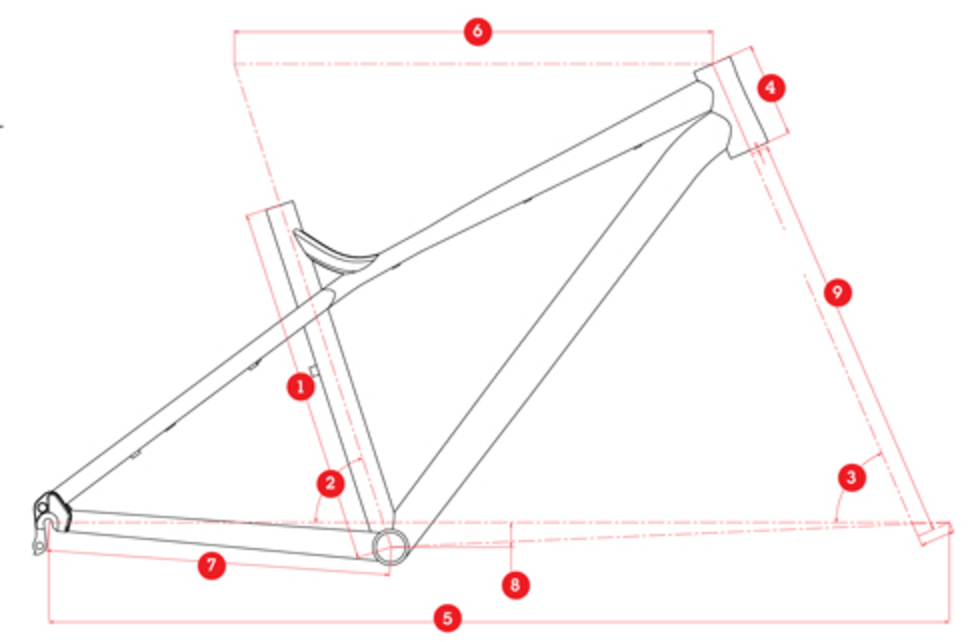

GEOMETRIE

TAILLE	1 - LONGUEUR TUBE DE SELLE	2 - ANGLE TUBE DE SELLE	3 - ANGLE DE DIRECTION	4 - HAUTEUR DE DOUILLE	5 - EMPATTEMENT	6 - LONGUEUR TUBE SUPERIEUR	7 - LONGUEUR BASES	8 - HAUTEUR BOITIER DE PEDALIER	9 - HAUTEUR DE FOURCHE	10 - HAUTEUR A L'ENTREJAMBE	11 - PROJETE HORIZONTAL BB/TT	12 - PROJETE VERTICAL BB/TT
S	400,0	72,0	66,5	110,0	1083,0	567,0	420,0	-30,0	520,0	725,0
M	440,0	72,0	66,5	115,0	1101,0	585,0	420,0	-30,0	510,0	735,0
L	490,0	72,0	66,5	125,0	1120,0	603,0	420,0	-30,0	510,0	747,0
XL	520,0	72,0	66,5	135,0	1140,0	625,0	420,0	-30,0	510,0	760,0

PARTS

Jeu de Direction
	ZS44 / 28,6 - ZS56 / 40
Acheter

Boitier de pédalier
	BSA 68mm
Acheter

Patte de dérailleur
	W09RHRSKIN
Acheter

Corps de roue libre
	D142DSE 8/9/10S - Steel
Acheter
