COMMENCAL META AM 29 SIGNATURE 2020

https://tech.commencal.com/tech/index.php?fiche=404&lang=
SPECS
  • Specs
    FRAME2020 META AM 29, 160 mm travel

    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

    SHOCKFOX Float X2 Factory

    230 x 60 mm, 2 positions lever for compression, rebound, 0,3 spacer

    FORKFOX 36 Float Factory, 170 mm travel

    29", FLOAT, Grip2, high/low speed compression, high/low speed rebound, Boost (QR 15 x 110 mm), 51 mm offset

    HEADSETACROS Alloy cups ZS44/ZS56

    ZS44/ZS56, sealed bearings, IPS Technology

    STEMRIDE ALPHA Freeride, 40 mm

    31,8 mm, 0° angle, 2014 alloy

    BARRIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm

    7050 alloy, double butted

    GRIPSRIDE ALPHA, DH Grips, black

    Ultra soft compound, single clamp

    BRAKESSHIMANO XT, 4 pistons, 200 mm / 200 mm

    SHIFTERSSRAM GX Eagle, 12 sp

    CHAIN GUIDE-

    REAR MECHSRAM XO1 Eagle, 12 sp

    BOTTOM BRACKETSRAM DUB Pressfit

    92 mm

    CRANKSETSRAM Descendant 7K Eagle, 170 mm, 32t chainring

    Boost, DUB

    CHAINSRAM GX Eagle, 12 sp

    114 links

    CASSETTESRAM GX Eagle, 12 sp

    10-50t

    RIMSE13 LG1 EN Plus

    28 holes, 30 mm inner width, tubeless ready

    HUBSE13 LG1 EN Plus

    28 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, XD freehub body

    SPOKES / NIPPLESE13

    TYRESMAXXIS Assegai, 29 x 2.5 front / MAXXIS Aggressor, 29 x 2.5 rear

    3C MaxxTerra, EXO, TR front / EXO, TR rear

    SEATPOSTFOX Transfer Factory

    31.6 mm, RFE lever, 100 mm on S, 125 mm on M, 150 mm on L, 175 mm on XL

    SADDLEWTB SL8 Race

    142 mm width, Cromoly rails

    WEIGHT15,6 kg / 34.3 lbs

    PEDALS INCLUDEDNo

    COLOURFox Orange / Chalk grey

    Shiny clear coat

    ACCESSORIESDown tube protector, chainstay protector, seatstay protector, chainstay cable guide

    • TECH
  • Tech
    BICYCLE TYPEFull suspension Enduro

    FRAME MATERIALNEC + ULTRA SL (aluminium 6066 triple butted)

    FRAME WEIGHT3,7 kg / 8.1 lbs

    REAR TRAVEL160 mmm

    SHOCK LENGTH / STROKEMetric standard 230 x 60 mm

    PIGGY BACK SHOCK COMPATIBLEYes

    SHOCK BUSHINGS20 x 10 mm

    RECOMMENDED / MAX. FORK HEIGHT571 / 581 mm

    HEADSET DIMENSIONTapered 1-1/8" / 1-1/2"

    HEADSET TYPEZS44/ZS56

    MAXIMUM TYRE DIMENSION (ETRTO)70 mm

    DISC BRAKE STANDARD Postmount 160 mm

    REAR ROTOR MAX. SIZE200 mm

    SEATPOST / SEAT CLAMP DIAMETER31,6 mm / 34,9 mm

    BOTTOM BRACKET TYPEPress Fit BB92

    ISCGISCG05

    FRONT DERAILLEUR TYPENo

    REAR HUB COMPATIBILITYStandard Maxle Boost

  • Riders Insight
    The COMMENCAL climbs well, above all thanks to the balanced seating position / The bike will compensate for any lack of riding technique. / The componentry left nothing to desire.ENDURO MTBExcellent parts spec for the price // Excels on rough, steep terrains // the Meta's short back end fit the overall manners of the bike very well, keeping it quick in the corners, and facilitating rapid direction changesPINKBIKEA bike to ride hard! // Compact is the first word that comes to mind. Almost unheard of for a 29er! // The META AM 29 inspires confidence, reliability and strength... In short, stiffness is here!ENDUROTRIBEThe composed ride gives extra confidence when things turn more technical and steep. It's certainly not a bike that's scared of tight corners. I can confidently say I've never ridden a bike so fast.BIKE RADARIf asked to sum up the Meta AM 29 in one word, "balanced" would be a good choice. "Ready for anything" would be another way to describe it. We were impressed with just how easily such a big bike was able to deal with several long and steep climbs. Whether carving turns or getting off the brakes down a rock-strewn single, we found the new bike fun and easy to ride.VITAL MTBThe META AM 29 made me discover new things! Behind the handlebars, I am in control, all the while maintaining grip, the same as through rough sections. No questions asked. Everything is easier with this bike. I really love it and since my injury, I miss it...Cécile RavanelIf asked to sum up the Meta AM 29 in one word, "balanced" would be a good choice. "Ready for anything" would be another way to describe it // we were impressed with just how easily such a big bike was able to deal with several long and steep climbs // Whether carving turns or getting off the brakes down a rock-strewn single, we found the new bike fun and easy to ride.VITAL MTB
    • GEOMETRIE
    TAILLE1 - LONGUEUR TUBE DE SELLE2 - ANGLE TUBE DE SELLE3 - ANGLE DE DIRECTION4 - HAUTEUR DE DOUILLE5 - EMPATTEMENT6 - LONGUEUR TUBE SUPERIEUR7 - LONGUEUR BASES8 - HAUTEUR BOITIER DE PEDALIER9 - HAUTEUR DE FOURCHE10 - HAUTEUR A L'ENTREJAMBE11 - PROJETE HORIZONTAL BB/TT12 - PROJETE VERTICAL BB/TT
    S400,076,565,5105,01183,0573,0432,0-25,0571,0423,0624,5
    M440,076,565,5110,01208,0596,0432,0-25,0571,0445,0629,0
    L465,076,565,5115,01233620432,0-25,0571,0468633,5
    XL495,076,566,0120,01257644432,0-25,0571,0491638,0
    Contact System
    Index Ref Nom Photo
    1 W19M29AXLERKSS ROCKER / SEAT STAYS AXLES META 29 12-15 N.m
    2 W19M29WASHERCS CONTACT SYSTEM WASHERS META 29
    3 W19EB6902 BEARING ENDURO BEARING 6902 LLU MAX 15 x 28 x 7
    4 W19M29ROCKER ROCKER LINK META 29
    BEARING KIT W21EBMETA29 ENDURO BEARINGS META 29 2 x 6804 / 6 x 6902 / 4 x 6800
    Contact System 2
    Index Ref Nom Photo
    2 W19M29WASHERCS CONTACT SYSTEM WASHERS META 29
    3 W19EB6902 BEARING ENDURO BEARING 6902 LLU MAX 15 x 28 x 7
    5 W19M29CLEVIS CLEVIS META 29
    6 W19M29AXLERKCL CLEVIS / ROCKER AXLES META 29 12-15 N.m
    7 W19M29AXLERKST ROCKER / SEAT TUBE AXLE META 29 12-15 N.m
    BEARING KIT W21EBMETA29 ENDURO BEARINGS META 29 2 x 6804 / 6 x 6902 / 4 x 6800
    Chainstays / Seatstays
    Index Ref Nom Photo
    10 W15RHRMETA REAR HANGER FOR META HT / V4 / V4.2 / POWER 15 N.m
    3 W21EB6800 ENDURO BEARINGS 6800 LLU MAX 10 x 19 x 5
    8 W19M29WASHERCSSS CHAIN STAYS / SEAT STAYS WASHERS META 29
    9 W19M29AXLECSSS CHAIN STAYS / SEAT STAYS AXLES META 29 12 N.m
    BEARING KIT W21EBMETA29 ENDURO BEARINGS META 29 2 x 6804 / 6 x 6902 / 4 x 6800
    TopTube
    Index Ref Nom Photo
    11 W19M29AXLESHTT SHOCK / TOP TUBE AXLE META 29 9 N.m
    12 W19M29AXLESHCL SHOCK / CLEVIS AXLE META 29 9 N.m
    Main Pivot
    Index Ref Nom Photo
    13 W19M29WASHERMP MAIN PIVOT WASHERS META 29 / CLASH
    14 W19M29AXLEMP MAIN PIVOT AXLE META 29 / CLASH 30-35 N.m
    3 W19EB6804 BEARING ENDURO BEARING 6804 LLU MAX 20 x 32 x 7
    BEARING KIT W21EBMETA29 ENDURO BEARINGS META 29 2 x 6804 / 6 x 6902 / 4 x 6800

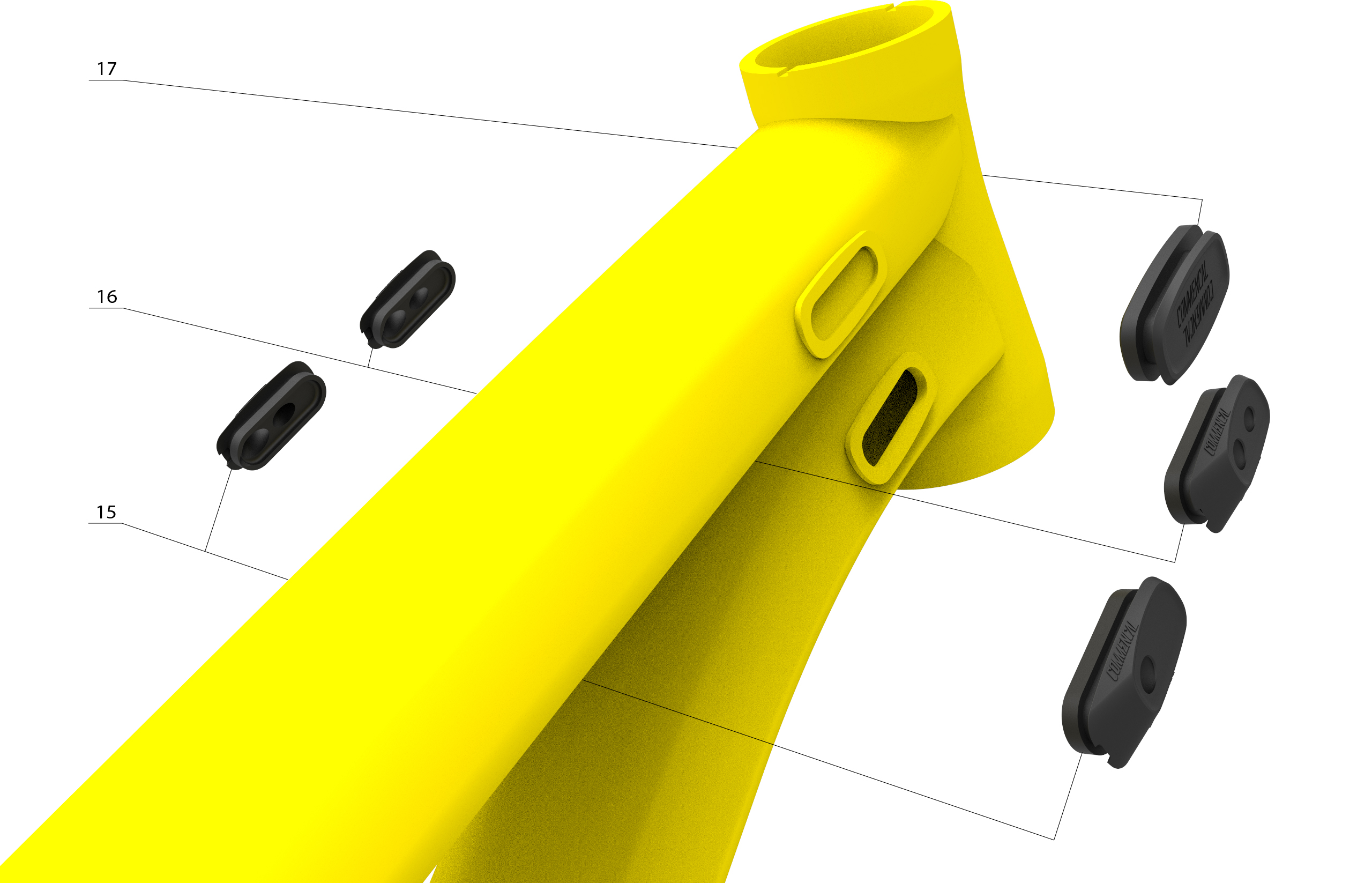

    Seals
    Index Ref Nom Photo
    15 W18SEAL1H INTERNAL ROUTING SEAL - 1 HOLE
    16 W18SEAL2H INTERNAL ROUTING SEAL - 2 HOLES
    17 W18SEALNOH INTERNAL ROUTING SEAL - NO HOLE
    Protectors
    Index Ref Nom Photo
    15 W18SEAL1H INTERNAL ROUTING SEAL - 1 HOLE
    18 A16SSTPROTECMETAV4 SEATSTAY PROTECTOR FOR META V4
    19 W19M29PROTECCS CHAIN STAY PROTECTOR META 29
    20 W19M29HOSEGUIDE HOSE GUIDE FOR MAIN PIVOT META 29
    21 W19M29PROTECDT DOWN TUBE PROTECTOR META / CLASH 3 N.m
    Fender
    Index Ref Nom Photo
    15 W18SEAL1H INTERNAL ROUTING SEAL - 1 HOLE
    22 W19M29FENDER FENDER META 29
    Fender
    Index Ref Nom Photo
    22 W19M29FENDER FENDER META 29
    PARTS
    Jeu de Direction
    ZS44 / 28,6 - ZS56 / 40
    Acheter
    Boitier de pédalier
    PressFit BB92
    Acheter
    Patte de dérailleur
    W15RHRMETA
    Acheter
    Corps de roue libre
    E13 LG1+
    11 -
