COMMENCAL SUPREME SX 650B BLACK 2018

https://tech.commencal.com/tech/index.php?fiche=287&lang=

SPECS

FRAME	2018 SUPREME SX 650b Travel 180 mm
SHOCK	ROCKSHOX SUPER DELUXE RC3, 230 x 65 mm, 3 positions
FORK	ROCKSHOX LYRIK RCT3 180 mm, solo air, boost
HEADSET	RIDE ALPHA, semi integrated, COMMENCAL standard
STEM	NEW RIDE ALPHA, aluminium 6061, 40 mm, 31.8 mm, 0° angle
BAR	RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, Ø31.8mm
GRIPS	RIDE ALPHA, ergonomic grips, plastic one lock, super soft compound
BRAKES	SRAM GUIDE RE, 200 mm / 200 mm
SHIFTERS	SRAM GX 1 x 11 speed
FRONT / REAR MECH	/ SRAM GX 11 speed
BOTTOM BRACKET	SRAM GXP Press Fit BB92
CRANKSET	SRAM DESCENDANT, 32T, direct mount, boost, 170 mm on S/M, 175 mm on L/XL
CHAIN	KMC X11EL-1
CASSETTE	SRAM XG 1150, 10-42, 11 speed
RIMS	MAVIC 427, 32 holes, hookless, tubeless ready, 27 mm inner
HUBS	FORMULA, 32 holes, sealed bearings
SPOKES / NIPPLES	PILLAR Spokes, Stainless steel, 2 mm black, Nylock
TYRES	MAXXIS HRII 650 x 2.4 EXO TR front and MAXXIS DHRII 650 x 2.3 EXO TR rear
SEATPOST	ROCKSHOX REVERB STEALTH, 31.6 mm, 125 mm on S/M and 150 mm on L/XL
SADDLE	RIDE ALPHA Super Light foam, CrMo rails
WEIGHT	15 kg
PEDALS INCLUDED	No
ACCESSORIES	Down tube protector, seatstay protector, roller cover

TECH

BICYCLE TYPE	Full suspension Enduro
FRAME MATERIAL	NEC + ULTRA SL (aluminium 6066 triple butted)
FRAME WEIGHT	4 kg
SHOCK TRAVEL	180 mm
SHOCK LENGTH / STROKE	230 x 65 mm
PIGGY BACK SHOCK COMPATIBLE	Yes
SHOCK BUSHINGS	30 x 8 mm / 20 x 8 mm
RECOMMENDED / MAX FORK HEIGHT	562 mm / 580 mm
HEADSET DIMENSION	1 1/2"
HEADSET TYPE	IS41 / ZS56
MAXIMUM TYRE DIMENSION (ETRTO)	60 mm
DISC BRAKE STANDARD	180 mm Postmount
REAR ROTOR MAX SIZE	200 mm
SEATPOST / SEAT CLAMP DIAMETER	31.6 mm / 34.9 mm
BOTTOM BRACKET TYPE	Press fit BB92
ISCG	Yes
FRONT DERAILLEUR TYPE	No
REAR HUB COMPATIBILITY	148 x 12 mm maxle standard boost

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	268 mm	270 mm
ARRIÈRE	270 mm	268 mm

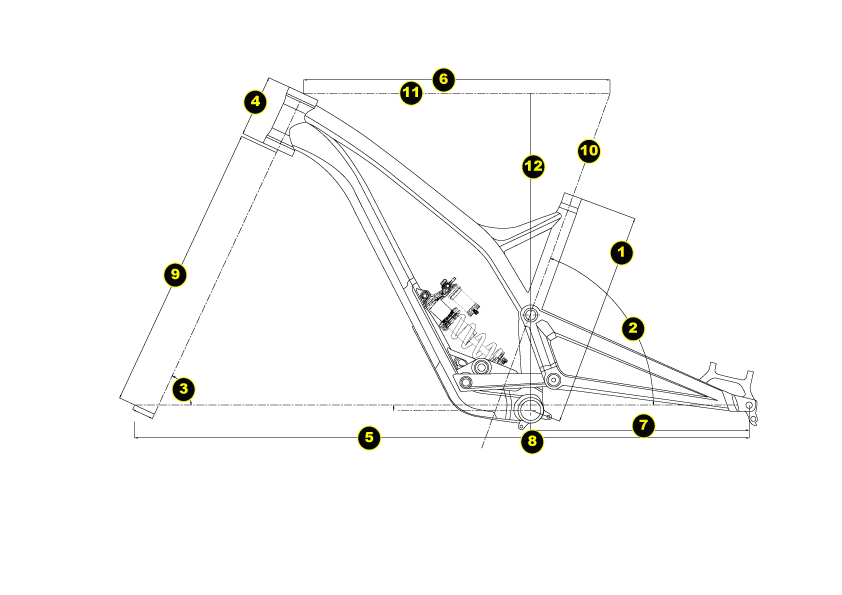

GEOMETRIE

Main Pivot

Index	Ref	Nom		Photo
1	W18SUPSXSPACERMP	ENTRETOISE PIVOT PRINCIPAL SUPREME SX
2	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902
3	W16DHV4WASHERMP	WASHER KIT FOR SUPREME DH V4 MAIN PIVOT

Contact System

Index	Ref	Nom		Photo
4	W18SUPSXAXLEMP	MAIN PIVOT AXLE SUPREME SX
5a	W18SUPSXAXLEULINK	U LINK AXLE SUPREME SX
5b	W17DHV42BOLTULINK	U-LINK BOLT FOR SUPREME DH V4 AND V4.2
6	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902
7	W18SUPSXULINK	U LINK SUPREME SX

Contact System 2

Index	Ref	Nom	Photo
8	W18SUPSXROCKER	ROCKER SUPREME SX
9	W16DHV4WASHERCS	WASHER KIT FOR SUPREME DH V4 CONTACT SYSTEM

Contact System 3

Index	Ref	Nom		Photo
10	W16DHV4ROCKERAXLE2	ROCKER / U-LINK AXLE FOR DH V4 (X1)
11	W18SUPSXAXLERKSH	SHOCK / ROCKER AXLE SUPREME SX
12	W16DHV4ROCKERAXLE	AXES BASCULEUR / TRIANGLE AVANT DH V4 ET V4.2
6	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

Dropouts

Index	Ref	Nom		Photo
13	W15RHRMETA	REAR HANGER FOR META HT / V4 / V4.2 / POWER	15 N.m

DownTube

Index	Ref	Nom		Photo
14	W16DHV4SHOCKAXLE	REAR SHOCK SCREW FOR SUPREME DH V4	9 N.m

Idler

Index	Ref	Nom		Photo
15	W18SUPSXIDLER	IDLER SUPREME SX	10-15 N.m

Protectors

Index	Ref	Nom		Photo
16	A16DTPROTECTOR	DOWN TUBE PROTECTOR FOR DH V4	3 N.m

Chainstay Protector
