COMMENCAL SUPREME JUNIOR 650B YELLOW 2016

https://tech.commencal.com/tech/index.php?fiche=24&lang=

SPECS

FRAME	NEW SUPREME JR 6066 alloy hydroformed
SHOCK	ROCKSHOX Monarch RT, 200x57 mm, 160 mm travel
FORK	ROCKSHOX Yari RC, Tapered, 160 mm travel
HEADSET	Semi integrated,tapered ZS44/56, 11/8 lower washer, sealed bearing
STEM	RIDE ALPHA Kids, alloy 6061 CNC, 50mm, 0° rise, 31,8mm
BAR	RIDE ALPHA Kids, 6061 Alloy series, 720mm 30mm rise, 31,8mm
GRIPS	COMMENCAL Lock On, Ø32mm, soft compound
BRAKES	SRAM DB1 180mm / 180mm
SHIFTERS	SRAM X5 9 speed
FRONT / REAR MECH	- / SRAM X5 9 speed
BOTTOM BRACKET	RIDE ALPHA BB 68mm, cartridge bearings
CRANKSET / CHAIN GUIDE	RIDE ALPHA 2 pieces Crankset, 32T Narrow Wide Alloy Chainring, 160mm crank arm / E13 LG1
CHAIN	KMC 9 speed
CASSETTE	SRAM PG920 11-34 T
RIMS	RIDE ALPHA Kids 27,5, 32H double wall, 650B
HUBS	RIDE ALPHA Kids, 32H, 15mm Front, 142x12 Rear, sealed bearings
SPOKES	Pillar Spokes 2.0mm (Nylock)
TIRES	MAXXIS HighRoller II, 27,5x2,30, 60 TPI, Kevlar Bead, TLR, EXO
SEATPOST	RIDE ALPHA DH, alloy, 31,6mm , 300mm
SADDLE	RIDE ALPHA DH, Cr-Mo rails

TECH

BICYCLE TYPE	DH / Freeride full suspension
FRAME MATERIAL	NEC + ULTRA SL (6066 Triple Butted)
SHOCK TRAVEL	150mm
SHOCK LENGTH / STROKE	200x57mm
PIGGY BACK SHOCK COMPATIBLE	No
SHOCK SPACER DIMENSION	22,2x10mm
RECOMMENDED / MAX FORK HEIGHT	555mm
HEADSET DIMENSION	ZS44/ZS56
HEADSET TYPE	Semi-integrated ZS44 / ZS56
MAXIMUM TYRE WIDTH (ETRTO)	57mm
DISC BRAKE STANDARD	Postmount 160mm
REAR ROTOR MAX SIZE	180mm
SEATPOST / SEAT CLAMP DIAMETER	31,6mm / 34,9mm
BOTTOM BRACKET TYPE	Press fit BB92
ISCG	ISCG05
FRONT DERAILLEUR TYPE	No
REAR HUB COMPATIBILITY	142x12mm

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	272 mm	274 mm
ARRIÈRE	274 mm	272 mm

GEOMETRIE

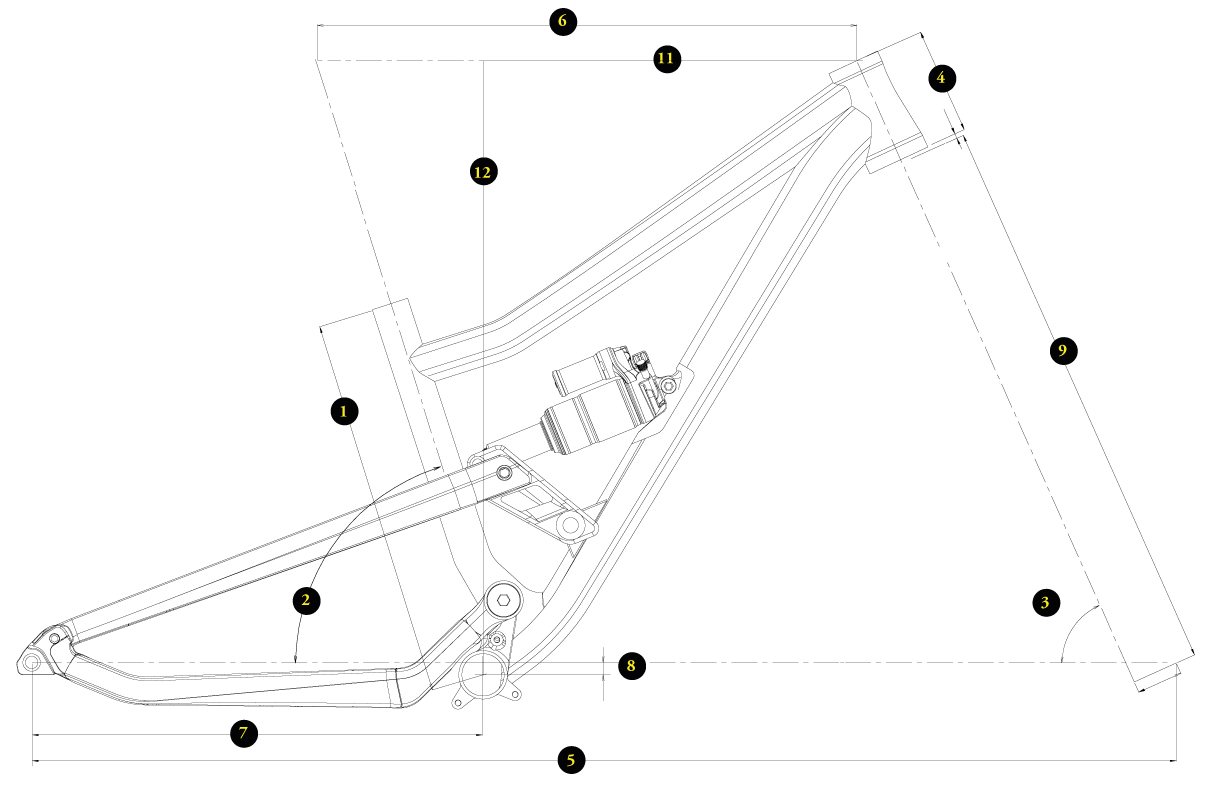

TAILLE	1 - LONGUEUR TUBE DE SELLE	2 - ANGLE TUBE DE SELLE	3 - ANGLE DE DIRECTION	4 - HAUTEUR DE DOUILLE	5 - EMPATTEMENT	6 - LONGUEUR TUBE SUPERIEUR	7 - LONGUEUR BASES	8 - HAUTEUR BOITIER DE PEDALIER	9 - HAUTEUR DE FOURCHE	10 - HAUTEUR A L'ENTREJAMBE	11 - PROJETE HORIZONTAL BB/TT	12 - PROJETE VERTICAL BB/TT
JUNIOR	370,0	74,0	65,0	105,0	1124,0	547,0	437,0	-12,0	555,0	736,0	359,0	594,0

Main Pivot

Index	Ref	Nom		Photo
12	W15AXLEMNPVT	MAIN PIVOT AXLE KIT FOR META FROM 2015	30-35 N.m
13	W15WASHMNPVT	WASHERS FOR MAIN PIVOT FOR META FROM 2015
2	W19EBSUP24JRV4	ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800

Contact System

Index	Ref	Nom		Photo
10	W17M42WASHERCKSS	WASHER ROCKER / SEAT STAYS META V4.2
11	W17AXLESHTT	UPPER SHOCK AXLE FOR META V4.2	9 - 12 N.m
2	W19EBSUP24JRV4	ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800
5	W15SUPKV4AXLERKFT	AXE BASCULEUR / TRIANGLE AVANT SUPREME 24 ET JR V4	10-15 N.m
6	W15SUPKV4WASHERRKF	RONDELLES BASCULEUR / TRIANGLE AVANT SUPREME 24 V4 ET JR V4
7	W12AXLESHYO	AXE AMORTISSEUR / TRIANGLE ARRIERE SUPREME DH V3 / META V3	12 N.m
8	W15SUPKV4ROCKER	BASCULEUR SUPREME 24 ET JR V4
9	W15SUPKV4BOLTRKSS	AXE BASCULEUR / HAUBANS SUPREME 24 ET JR V4	10-15 N.m

Chainstays / Seatstays

Index	Ref	Nom		Photo
1	W15WASHSTKIT	WASHER KIT SEASTSTAY/CHAINSTAY FOR META FROM 2015
2	W19EBSUP24JRV4	ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800
3	W15AXLESTCS	AXLE KIT CHAINSTAY SEATSTAY FOR META FROM 2015	10-15 N.m
4	W15RHRMETA	REAR HANGER FOR META HT / V4 / V4.2 / POWER	15 N.m
