| ROUE | GAUCHE / CÔTÉ SANS TRANSMISSION | DROIT / CÔTÉ TRANSMISSION |
| AVANT | 270 mm | 271 mm |
| ARRIÈRE | 272 mm | 270 mm |
| TAILLE | 1 - LONGUEUR TUBE DE SELLE | 2 - ANGLE TUBE DE SELLE | 3 - ANGLE DE DIRECTION | 4 - HAUTEUR DE DOUILLE | 5 - EMPATTEMENT | 6 - LONGUEUR TUBE SUPERIEUR | 7 - LONGUEUR BASES | 8 - HAUTEUR BOITIER DE PEDALIER | 9 - HAUTEUR DE FOURCHE | 10 - HAUTEUR A L'ENTREJAMBE | 11 - PROJETE HORIZONTAL BB/TT | 12 - PROJETE VERTICAL BB/TT |
| S | 400,0 | 66,0 | 62,5 | 108,0 | 1168,0 | 547,0 | 425,0 | -5,0 | 590,0 | 703,0 | 377,0 | 607,0 |
| M | 400,0 | 66,0 | 62,5 | 108,0 | 1185,0 | 562,0 | 425,0 | -5,0 | 590,0 | 703,0 | 392,0 | 607,0 |
| L | 400,0 | 66,0 | 62,5 | 108,0 | 1204,0 | 577,0 | 425,0 | -5,0 | 590,0 | 703,0 | 407,0 | 607,0 |
| XL | 400,0 | 66,0 | 62,5 | 108,0 | 1222 | 595 | 425,0 | -5,0 | 590,0 | 703,0 | 425 | 607,0 |
| Index | Ref | Nom | Photo | |

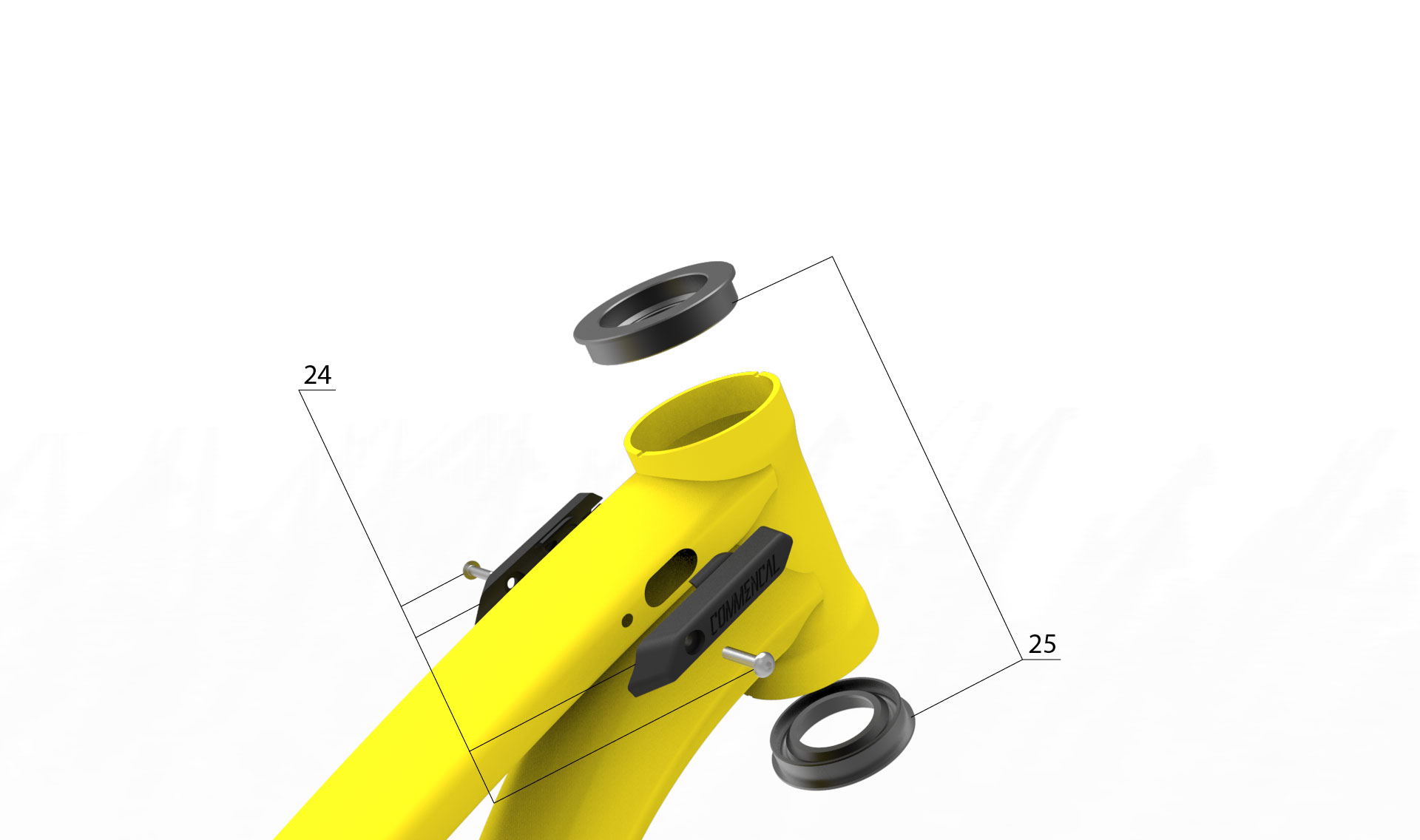

| 24 | A16FORKBUMPDHV4 | FORK BUMPER FOR DH V4 | 2,5 N.m |
|
| Index | Ref | Nom | Photo | |

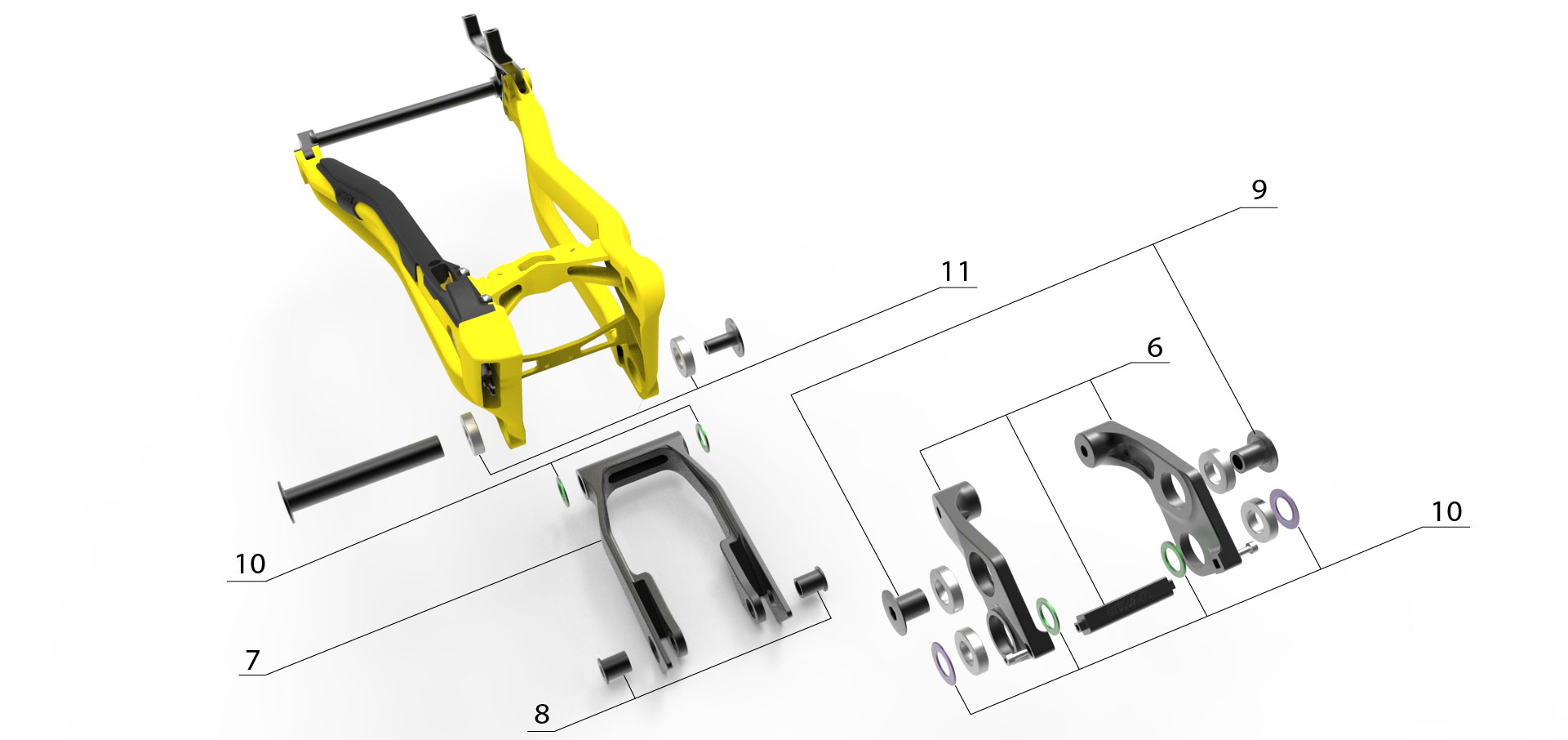

| 10 | W16DHV4WASHERCS | WASHER KIT FOR SUPREME DH V4 CONTACT SYSTEM |
|
|
| 11 | W21EBFURIOUS | ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS | 2 x 6804 / 6 x 6902 |
|
| 6 | W16DHV4ROCKER | ROCKER LINK FOR SUPREME DH V4 |
|
|
| 7 | W16DHV4ULINK | U LINK SUPREME DH V4 |
|
|
| 8 | W16DHV4ROCKERAXLE2 | ROCKER / U-LINK AXLE FOR DH V4 (X1) |
|
|
| 9 | W16DHV4ROCKERAXLE | AXES BASCULEUR / TRIANGLE AVANT DH V4 ET V4.2 |
|
| Index | Ref | Nom | Photo | |

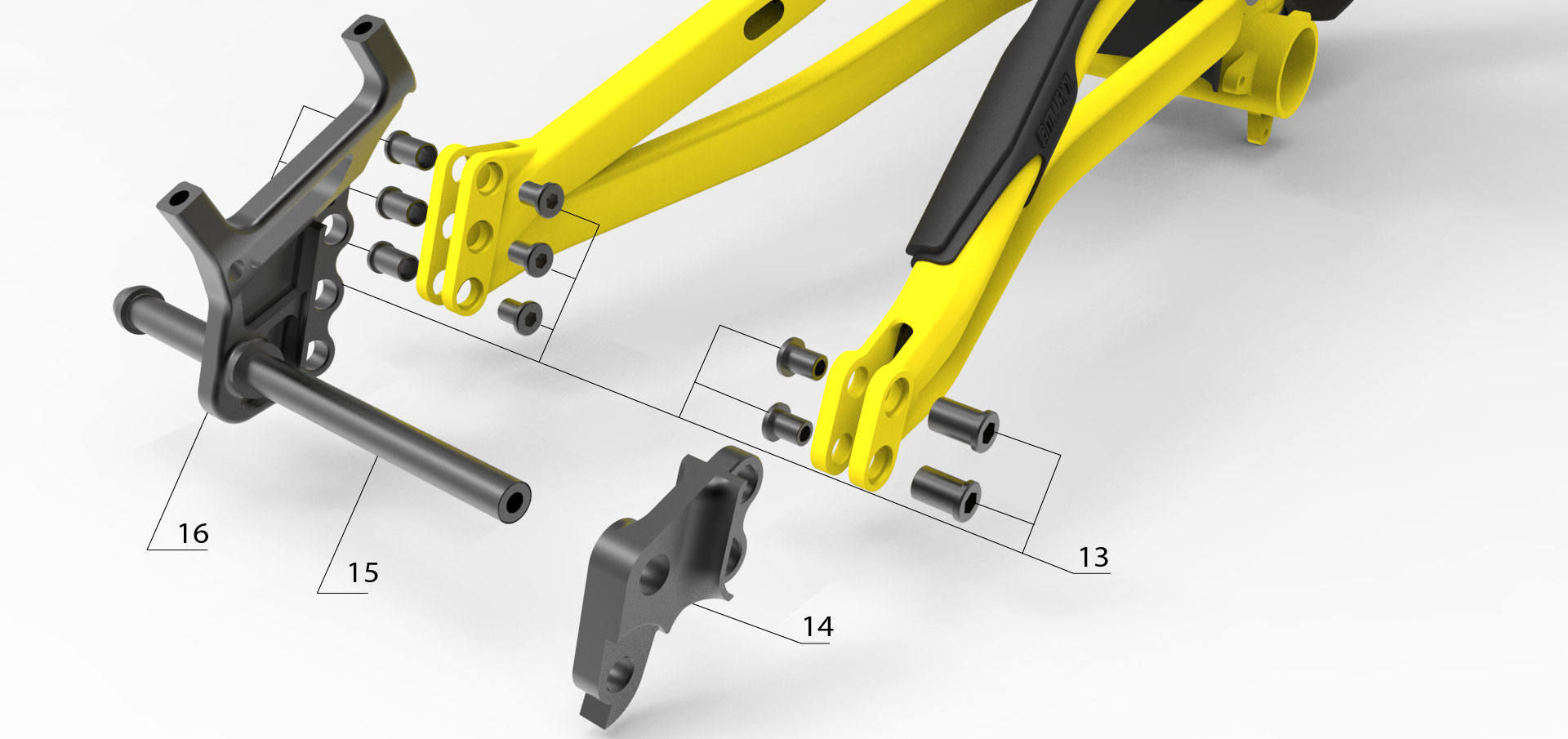

| 13 | W16DHV4HANGERAXLE | KIT VIS FIXATION PATTES SUPREME DH V4 / V4.2 / 29 / V4.3 |
|
|
| 14 | W16RHRSUPDHV4 | RIGHT HANGER 425 MM FOR SUPREME DH V4 / V4.2 |
|
|
| 14 | W16RHRSUPDHV4430 | RIGHT HANGER 430 MM FOR SUPREME DH V4 / V4.2 |
|
|
| 15 | W16DHV4WHEELAXLE | REAR WHEEL AXLE SUPREME DH V4 | 12 N.m |
|
| 16 | W16LRHRSUPDHV4425 | LEFT HANGER 425 MM FOR SUPREME DH V4 / V4.2 |
|
|
| 16 | W16LRHRSUPDHV4430 | LEFT HANGER 430 MM FOR SUPREME DH V4 / V4.2 |
|
| Index | Ref | Nom | Photo | |

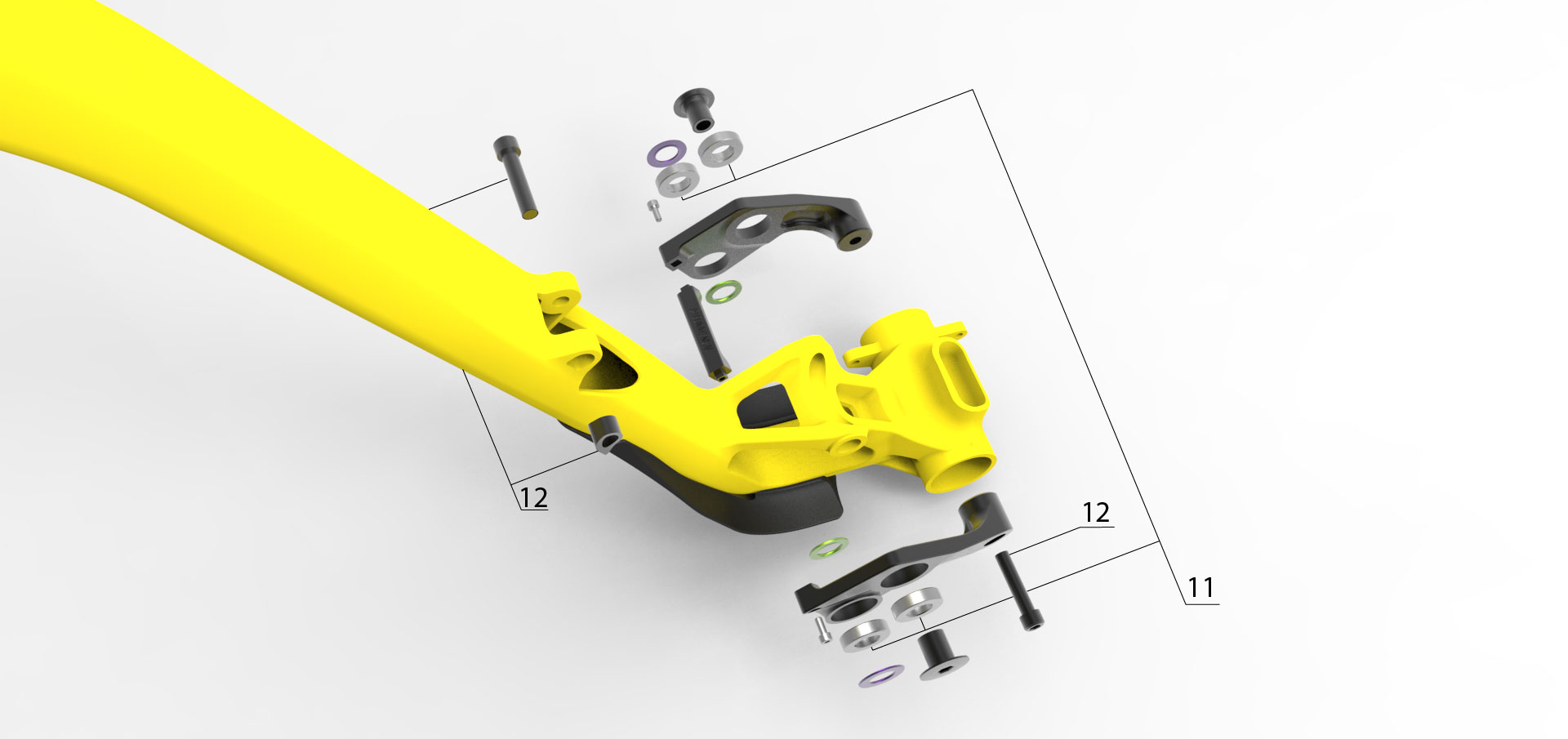

| 11 | W21EBFURIOUS | ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS | 2 x 6804 / 6 x 6902 |
|
| 12 | W16DHV4SHOCKAXLE | REAR SHOCK SCREW FOR SUPREME DH V4 | 9 N.m |
|
| Index | Ref | Nom | Photo | |

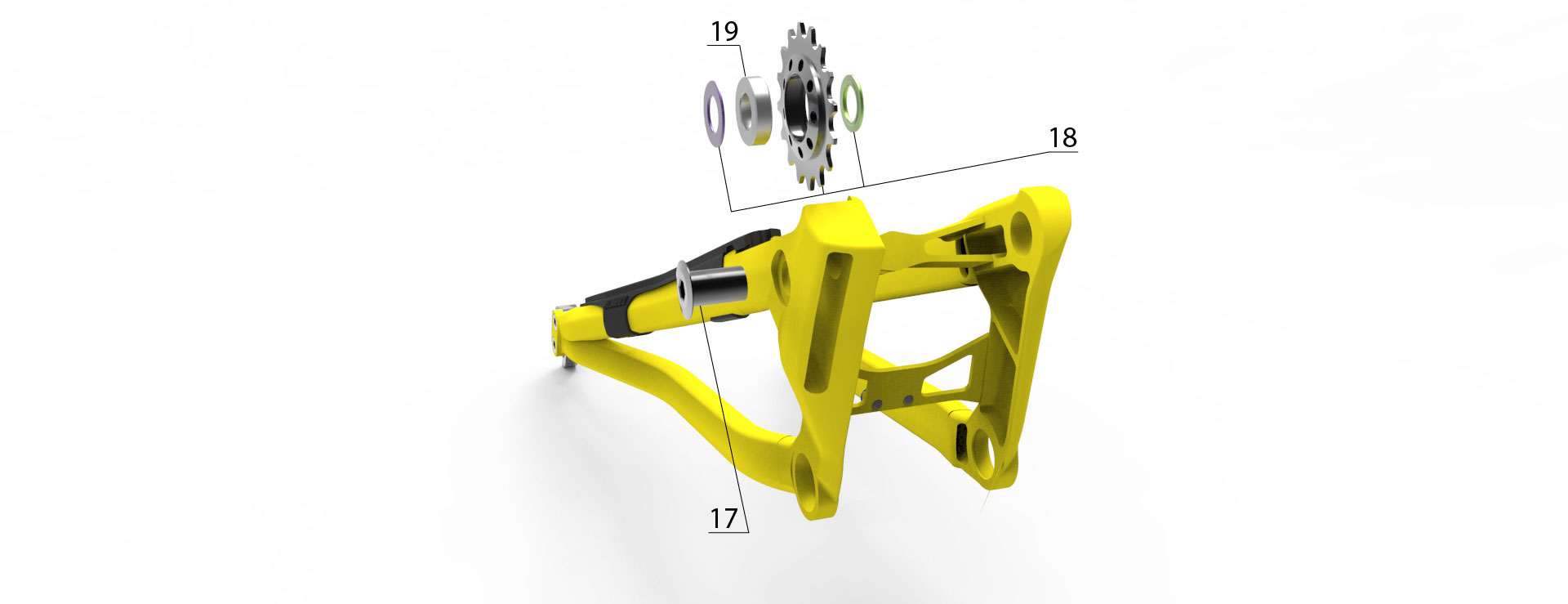

| 18 | W18SUPSXIDLER | IDLER SUPREME SX | 10-15 N.m |
|
| 19 | W16DHV4IDLERSB | ROULEMENT 6902-RS ROULETTE RENVOIE CHAINE SUPREME V4/V4.2 |
|
| Index | Ref | Nom | Photo | |

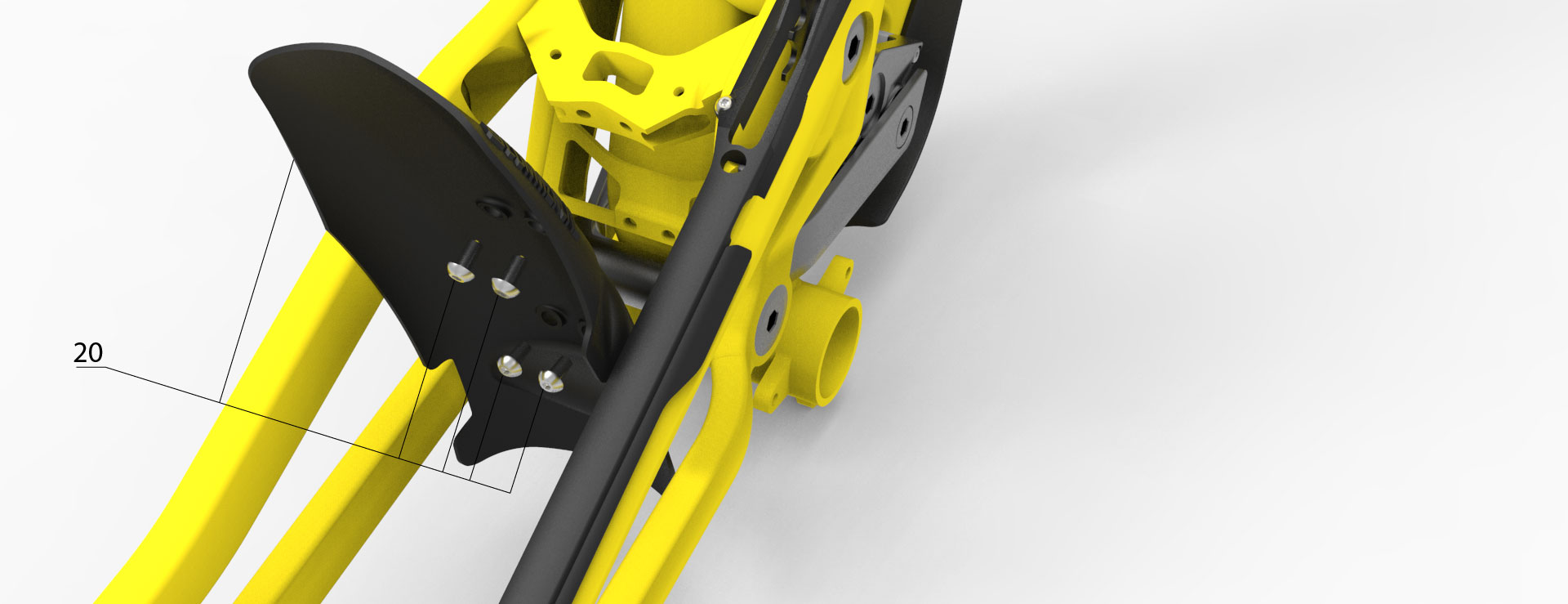

| 20 | A16MGDHV4 | MUDGUARD FOR DH V4 AND V4.2 |
|
| Index | Ref | Nom | Photo | |
| 21 | A16DTPROTECTOR | DOWN TUBE PROTECTOR FOR DH V4 | 3 N.m |
|
| Index | Ref | Nom | Photo | |

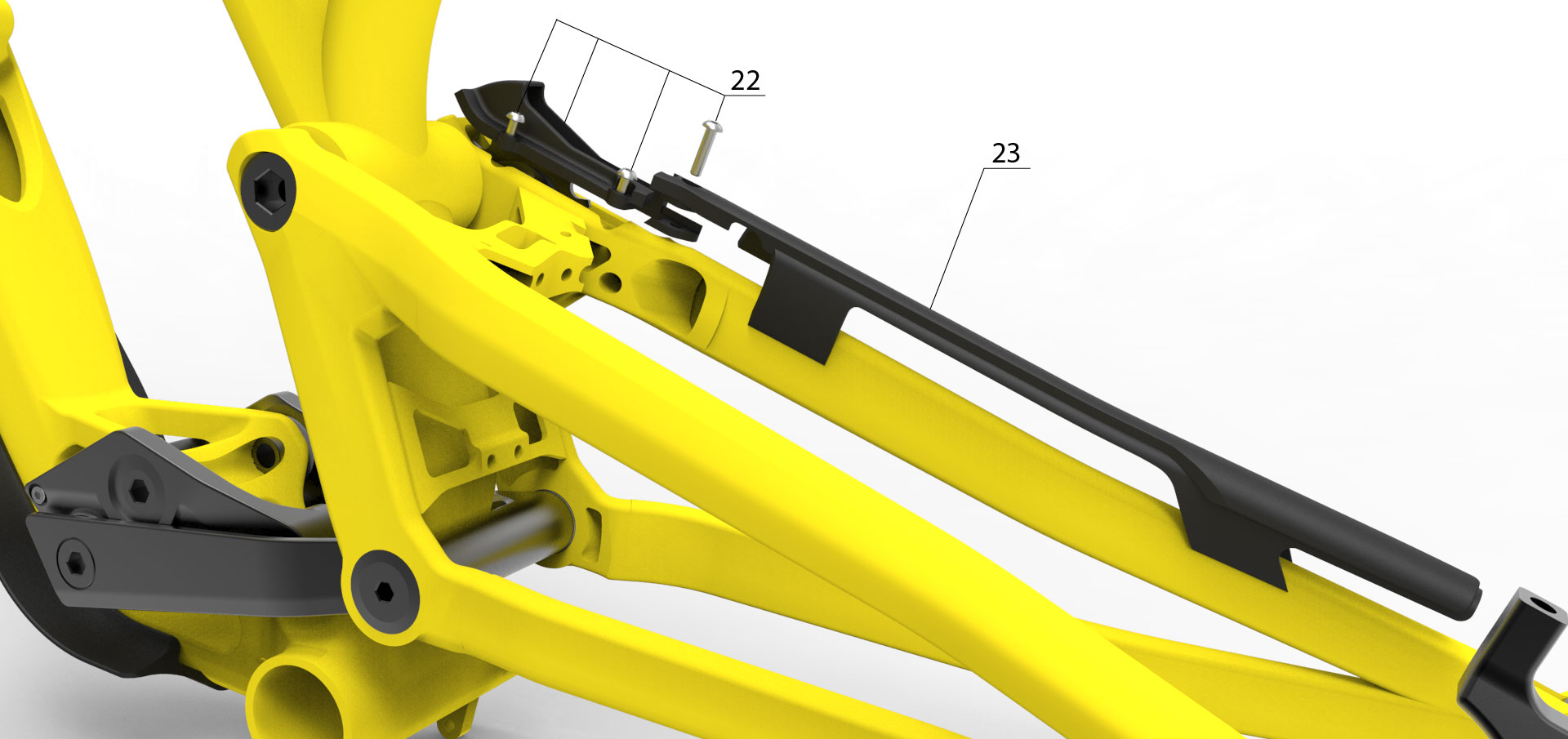

| 22 | A16ROLPROTECTDHV4 | IDLER PROTECTOR FOR DH V4 | 3 N.m |
|
| 23 | A16CSTPROTECTDHV4 | SEATSTAY PROTECTOR FOR DH V4 |
|
| Index | Ref | Nom | Photo | |

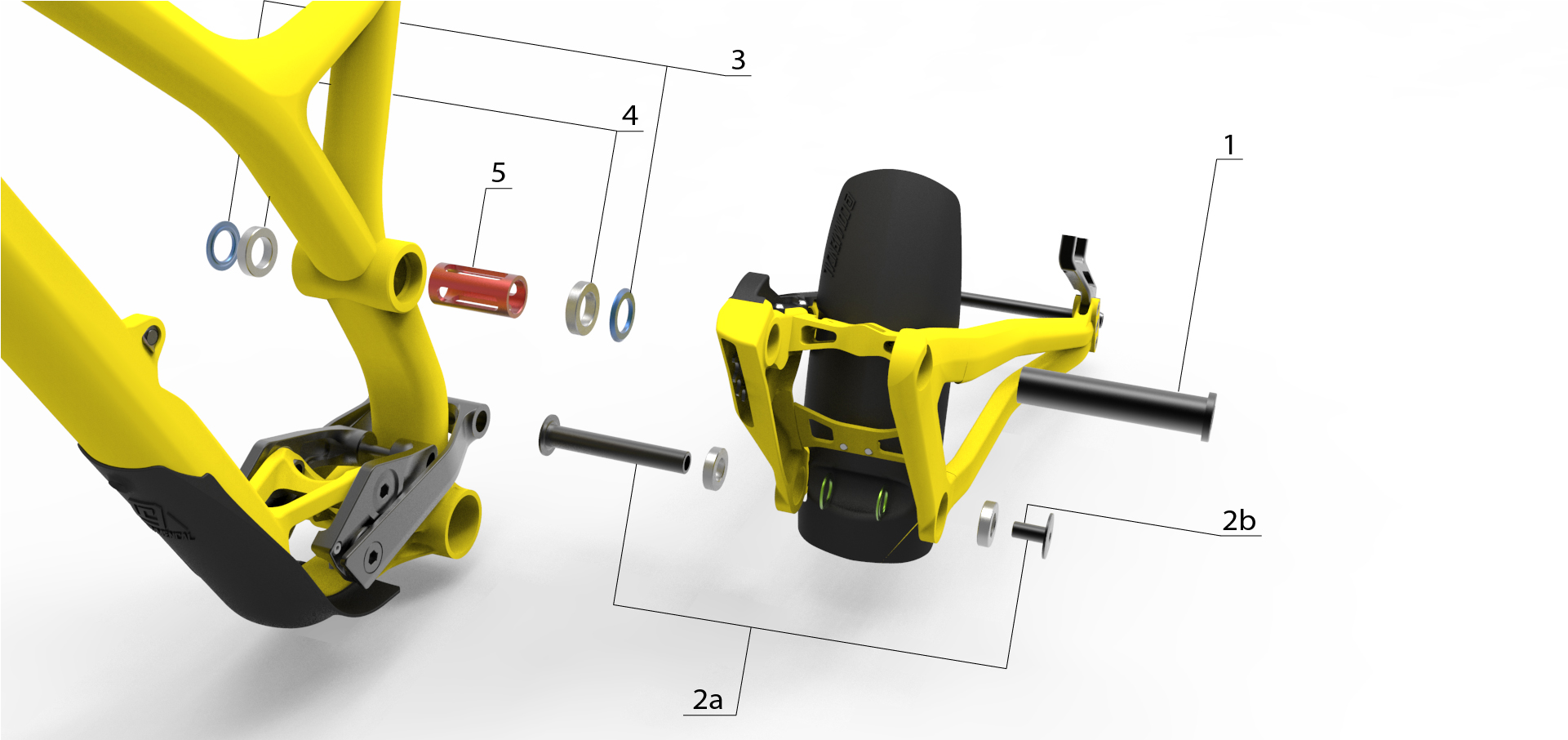

| 1 | W16DHV4MPAXLE | MAIN PIVOT AXLE FOR SUPREME DH V4 AND V4.2 | 25-30 N.m |
|
| 2a | W16DHV4REARTRIAXLE | U-LINK AXLE FOR SUPREME DH V4 AND V4.2 | 10-15 N.m |
|
| 2b | W17DHV42BOLTULINK | U-LINK BOLT FOR SUPREME DH V4 AND V4.2 |
|
|
| 3 | W16DHV4WASHERMP | WASHER KIT FOR SUPREME DH V4 MAIN PIVOT |
|
|
| 4 | W21EBFURIOUS | ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS | 2 x 6804 / 6 x 6902 |
|
| 5 | W16DHV4SPACERMP | ENTRETOISE PIVOT PRINCIPAL SUPREME DH V4 ET V4.2 |
|
Jeu de Direction | |
 |
IS41 / 28,6 - IS41 / 30 |
| Acheter | |
Boitier de pédalier | |
 |
PressFit BB107 |
| Acheter | |
Patte de dérailleur | |
 |
SUPREME DH V4 |
| Acheter | |
Corps de roue libre | |
 |
DH12SB-SS 8/9/10S - Steel |
| Acheter | |
