COMMENCAL SUPREME 24 YELLOW 2016

https://tech.commencal.com/tech/index.php?fiche=23&lang=

SPECS

FRAME	NEW SUPREME 24 6066 alloy hydroformed
SHOCK	X-FUSION O2 PRO RLX 190x51mm
FORK	X-FUSION VELVET RL2 140mm
HEADSET	Semi integrated,tapered ZS44/56, 11/8 lower washer, sealed bearings
STEM	RIDE ALPHA Kids, alloy 6061 CNC, 35mm, 0° rise, 31,8mm
BAR	RIDE ALPHA Kids, alloy 6061, 0,75" rise, 660mm, 31,8mm
GRIPS	COMMENCAL Lock On, Ø32mm, soft compound
BRAKES	SRAM DB1 180mm / 180mm
SHIFTERS	SRAM X5 9 speed
FRONT / REAR MECH	- / SRAM X5 9 speed
BOTTOM BRACKET	RIDE ALPHA BB 68mm, cartridge bearings
CRANKSET	RIDE ALPHA 2 pieces Crankset, 32T Narrow Wide Alloy Chainring, 152mm crankarm
CHAIN	KMC 9 speed
CASSETTE	SRAM PG920 11-34 T
RIMS	RIDE ALPHA Kids 24, 32H Double Wall
HUBS	RIDE ALPHA Kids, 32H, 15mm Front, 142x12 Rear, sealed bearings
SPOKES	Pillar Spokes 2.0mm (Nylock)
TIRES	KENDA KINETICS 24x2,35"
SEATPOST	RIDE ALPHA Kids, alloy Pivotal, 31,6mm , 300mm
SADDLE	RIDE ALPHA Kids Pivotal
PEDALS INCLUDED	Yes

TECH

BICYCLE TYPE	DH / Freeride 24" full suspension
FRAME MATERIAL	NEC + ULTRA SL (6066 Triple Butted)
SHOCK TRAVEL	140mm
SHOCK LENGTH / STROKE	190x51mm
PIGGY BACK SHOCK COMPATIBLE	No
SHOCK SPACER DIMENSION	22,2x10mm
RECOMMENDED / MAX FORK HEIGHT	520mm
HEADSET DIMENSION	Tapered 1"1/8 / 1,5"
HEADSET TYPE	Semi-intégré ZS44 / ZS56
MAXIMUM TYRE WIDTH (ETRTO)	65mm
DISC BRAKE STANDARD	Postmount 160mm
REAR ROTOR MAX SIZE	180mm
SEATPOST / SEAT CLAMP DIAMETER	31,6mm / 34,9mm
BOTTOM BRACKET TYPE	BSA 68mm
ISCG	ISCG05
FRONT DERAILLEUR TYPE	High direct mount - top pull
REAR HUB COMPATIBILITY	142x12mm

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	235 mm	237 mm
ARRIÈRE	237 mm	235 mm

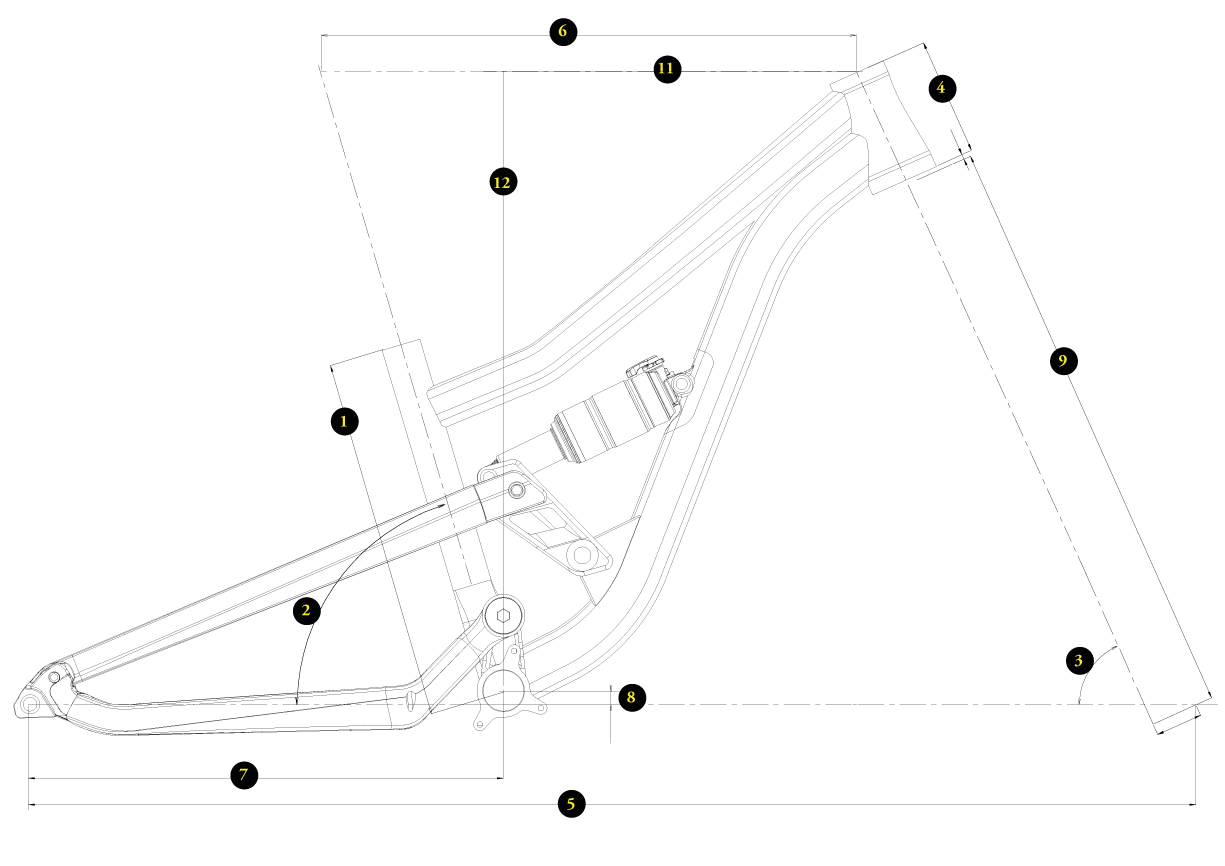

GEOMETRIE

TAILLE	1 - LONGUEUR TUBE DE SELLE	2 - ANGLE TUBE DE SELLE	3 - ANGLE DE DIRECTION	4 - HAUTEUR DE DOUILLE	5 - EMPATTEMENT	6 - LONGUEUR TUBE SUPERIEUR	7 - LONGUEUR BASES	8 - HAUTEUR BOITIER DE PEDALIER	9 - HAUTEUR DE FOURCHE	10 - HAUTEUR A L'ENTREJAMBE	11 - PROJETE HORIZONTAL BB/TT	12 - PROJETE VERTICAL BB/TT
24	320,0	73,5	66,0	105,0	1026,0	476,0	420,0	12,0	520,0	690,0	313,0	548,0

Main Pivot

Index	Ref	Nom		Photo
12	W15AXLEMNPVT	MAIN PIVOT AXLE KIT FOR META FROM 2015	30-35 N.m
13	W15WASHMNPVT	WASHERS FOR MAIN PIVOT FOR META FROM 2015
2	W19EBSUP24JRV4	ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800

Contact System

Index	Ref	Nom		Photo
10	W17M42WASHERCKSS	WASHER ROCKER / SEAT STAYS META V4.2
11	W15AXLESHTT	AXLE SHOCK/TOP TUBE FOR META V4	9-12 N.m
2	W19EBSUP24JRV4	ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800
5	W15SUPKV4AXLERKFT	AXE BASCULEUR / TRIANGLE AVANT SUPREME 24 ET JR V4	10-15 N.m
6	W15SUPKV4WASHERRKF	RONDELLES BASCULEUR / TRIANGLE AVANT SUPREME 24 V4 ET JR V4
7	W12AXLESHYO	AXE AMORTISSEUR / TRIANGLE ARRIERE SUPREME DH V3 / META V3	12 N.m
8	W15SUPKV4ROCKER	BASCULEUR SUPREME 24 ET JR V4
9	W15SUPKV4BOLTRKSS	AXE BASCULEUR / HAUBANS SUPREME 24 ET JR V4	10-15 N.m

Chainstays / Seatstays

Index	Ref	Nom		Photo
1	W15WASHSTKIT	WASHER KIT SEASTSTAY/CHAINSTAY FOR META FROM 2015
2	W19EBSUP24JRV4	ENDURO BEARINGS SUPREME V4 24 / JR	2 x 6804 / 4 x 6902 / 4 x 6800
3	W15AXLESTCS	AXLE KIT CHAINSTAY SEATSTAY FOR META FROM 2015	10-15 N.m
4	W15RHRMETA	REAR HANGER FOR META HT / V4 / V4.2 / POWER	15 N.m
