COMMENCAL META POWER 29 ESSENTIAL 2020

https://tech.commencal.com/tech/index.php?fiche=439&lang=
SPECS
  • Specs
    FRAME2020 META Power 29 (integrated battery), 160 mm travel

    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

    SYSTEMSHIMANO E8000

    250 W, 70 Nm

    BATTERYSHIMANO E8035

    504 Wh

    DISPLAYSHIMANO E8000

    SHOCKFOX DPX2 Performance

    230 x 60 mm, EVOL, 3 positions lever for compression. Rebound. 0,4 air volume spacer

    FORKFOX 36 Performance, 170 mm travel

    29", FLOAT, Grip, 3 positions lever for compression, rebound, Boost (QR 15 x 110 mm), 51 mm offset

    HEADSETACROS Alloy cups ZS44/ZS56

    ZS44/ZS56, BlockLock technology, sealed bearings

    STEMRIDE ALPHA Freeride, 50 mm

    31,8 mm, 0° angle, 2014 alloy

    BARRIDE ALPHA, 20 mm rise, 780 mm, 31,8 mm

    7050 alloy, double butted

    GRIPSRIDE ALPHA, DH Grips, black

    Ultra soft compound, single clamp

    BRAKESSHIMANO SLX 4 pistons, 203 mm rotors

    RT-MT800 rotor front, RT-MT810 rotor rear (with integrated magnet)

    SHIFTERSSHIMANO SLX, 12 sp

    Rapidfire Plus

    CHAIN GUIDERIDE ALPHA 34t

    Shimano Steps specific

    REAR MECHSHIMANO SLX, 12 sp

    BOTTOM BRACKETSHIMANO

    CRANKSSHIMANO XT E8050, 165 mm

    Hollowtech

    RINGSHIMANO, 12 sp, 34t

    CHAINSHIMANO SLX, 12 sp

    118 links

    CASSETTESHIMANO SLX, 12 sp

    10-51t

    RIMSE13 LG1 DH Plus 29''

    32 holes, 30 mm inner width, tubeless ready

    HUBSSHIMANO SLX

    32 holes, Centerlock, 15 x 110 mm front, 12 x 148 mm rear, MicroSpline freehub body

    SPOKES / NIPPLESSAPIM Strong spokes

    Stainless steel, 2.34 mm / 2.0 mm

    TYRESMAXXIS Assegai, 29x2.5, front / MAXXIS Aggressor, 29x2.5, rear

    EXO+, 3C compound, TR, front / Double Down, Dual compound, TR, rear

    SEATPOSTKINDSHOCK Ragei

    31.6 mm, Southpaw alloy lever, 100 mm on S, 125 mm on M, 150 mm on L and XL

    SADDLEWTB SL8 Race

    142 mm width, Cromoly rails

    WEIGHT23,8 kg / 52,4 lb

    PEDALS INCLUDEDYes

    COLOURNardo Gray

    Shiny clear coat

    ACCESSORIESRIDE ALPHA CNC Alloy pedals, motor protector, chainstay protector, seatstay protector, battery charger, user manual

    META POWER bikes are delivered with Shimano Europlug (CEE 7/7 norm) battery charger, a plug adapter is necessary for customers living in countries using different standards.

    BATTERY RECYCLINGpartnership with SHIMANO

    In partnership with SHIMANO, COMMENCAL supports a voluntary battery recycling program for ebike batteries. For each META POWER sold COMMENCAL will contribute 7EUR to fundraising organisation COREPILE. This sum is paid through SHIMANO France. When your battery reaches the end of its life, it would be great if you could send it back to us for recycling. Contact us for more info on the procedure.

    • TECH
  • Tech
    BICYCLE TYPEE-bike Enduro 29"

    FRAME MATERIALAL-6061 + AL-6066

    FRAME WEIGHT-

    REAR TRAVEL160 mm

    SHOCK LENGTH / STROKE230 x 60 mm

    PIGGY BACK SHOCK COMPATIBLEYes

    SHOCK BUSHINGS20 x 10 mm front / 12,7 x 10 mm rear

    RECOMMENDED / MAX. FORK HEIGHT571 mm / 581 mm

    HEADSET DIMENSIONTapered

    HEADSET TYPEZS44 / ZS56

    MAXIMUM TYRE DIMENSION (ETRTO)65 mm - 622

    DISC BRAKE STANDARD Postmount 160 mm

    REAR ROTOR MAX. SIZE220 mm

    SEATPOST / SEAT CLAMP DIAMETER31,6 mm / 34,9 mm

    BOTTOM BRACKET TYPESHIMANO

    ISCGYes (SHIMANO Standard)

    FRONT DERAILLEUR TYPENo

    REAR HUB COMPATIBILITY12 x 148 mm, Maxle standard

  • Riders Insight
    Thanks to its sound performance, the COMMENCAL is an excellent choice for all types of riders. By offering a complete build at an attractive price, the COMMENCAL META POWER 29 TEAM easily wins the "2020 Best Value" award.EMTB Magazine"We never felt like we got to the limits of the bike ??? no matter how hard we pushed, the META POWER 29 still had reserves to give.""Where the new COMMENCAL really comes alive is on demanding descents.""The geometry puts you in a very comfortable and balanced position right from the get-go, and the bike stays confident and controllable no matter how demanding the trails become."E-Mountain BikeIn loose, rocky, rooty downhill chutes, the linear suspension does exactly what COMMENCAL said it would, and helps to ensure your tyre tracks the group and maintain grip.While the motor is giving you a major boost up any climb. the updated geometry of the META POWER Team really comes into its own too.SINGLETRACK"At ease on fast and bumpy terrain, the META POWER 29 also does very well in technical and winding areas." / "On the hill, what surprises us immediately, and what will not stop impressing us, is the grip of this bike."VOJO MAG"Very stable, it avoids zigzagging and stays on course. But it's sure that the bike has the ability to remain grounded both at the front and back, which gives it a perfect traction.""So we quickly realized that the COMMENCAL META POWER 29 is particularly fond of steep and technical terrain. Both uphill and downhill!""It sometimes seems limitless as soon as you start the steepest trails at a good tempo. It tolerates, it takes it, it forgives, it reassures. It sticks to the ground, it preserves the tyres, it adapts to speed and gives confidence. In fact, it gives wings where others start to sound the alarm!"VTTAE.FRI love my META POWER 29!! The bike has a beautiful look. It is well equipped with everything I need for long rides. I was expecting it to be heavier, but in fact, it did not bother me at all. The bike is truly playful, you can jump big, ride real enduro tracks and DH. What I discovered and loved was the ease of nailing uphill technical climbs. I found a lot of similarities with moto in relation to finding grip and balance. I climbed trails that I would not have attempted with my META.Rémi Thirion
    • GEOMETRIE
    TAILLE1 - LONGUEUR TUBE DE SELLE2 - ANGLE TUBE DE SELLE3 - ANGLE DE DIRECTION4 - HAUTEUR DE DOUILLE5 - EMPATTEMENT6 - LONGUEUR TUBE SUPERIEUR7 - LONGUEUR BASES8 - HAUTEUR BOITIER DE PEDALIER9 - HAUTEUR DE FOURCHE10 - HAUTEUR A L'ENTREJAMBE11 - PROJETE HORIZONTAL BB/TT12 - PROJETE VERTICAL BB/TT
    S41577651201224573453-20571763430610
    M44077651251246595453-20571766450615
    L46577651301273622453-20571768475619
    XL49577651351300648453-20571774500624

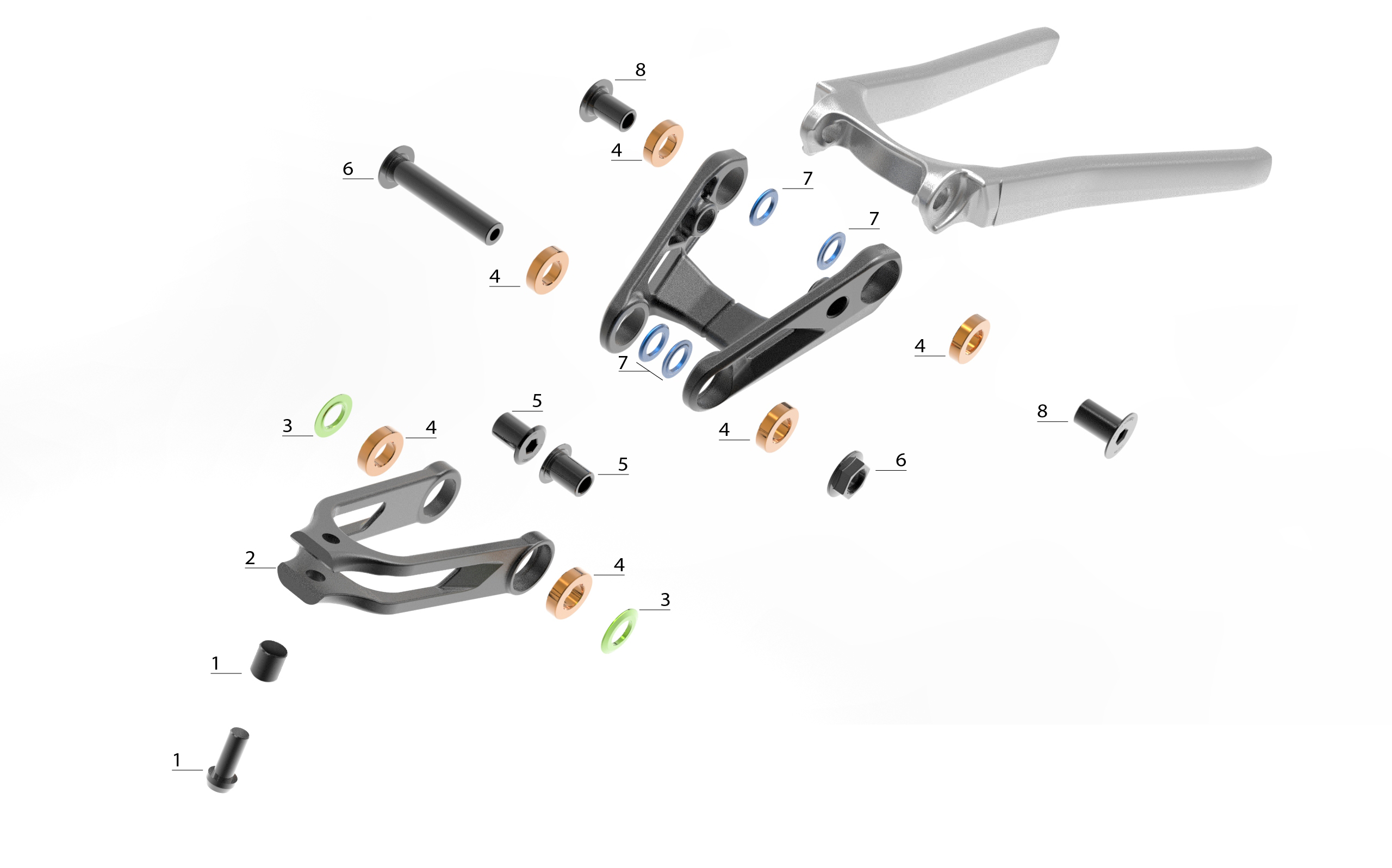

    Contact System
    Index Ref Nom Photo
    - W20MPWROCKER BASCULEUR META POWER V2
    1 W19MPWAXLESHCL SHOCK / CLEVIS AXLE META POWER 9 N.m
    2 W20MPWCLEVIS CLEVIS META POWER V2
    3 W20MPWWASHERRKCL ROCKER / CLEVIS WASHERS
    4 W19EB6902 BEARING ENDURO BEARING 6902 LLU MAX 15 x 28 x 7
    5 W20MPWAXLERKCL ROCKER / CLEVIS AXLES META POWER V2 10-12 N.m
    6 W20MPWAXLERKST ROCKER / SEAT TUBE AXLES META POWER V2 10-12 N.m
    7 W20MPWWASHERRK ROCKER WASHERS META POWER V2
    8 W20MPWAXLERKSS ROCKER / SEAT STAYS AXLES META POWER V2 10-12 N.m
    BEARING KIT W21EBMETA29 ENDURO BEARINGS META 29 2 x 6804 / 6 x 6902 / 4 x 6800

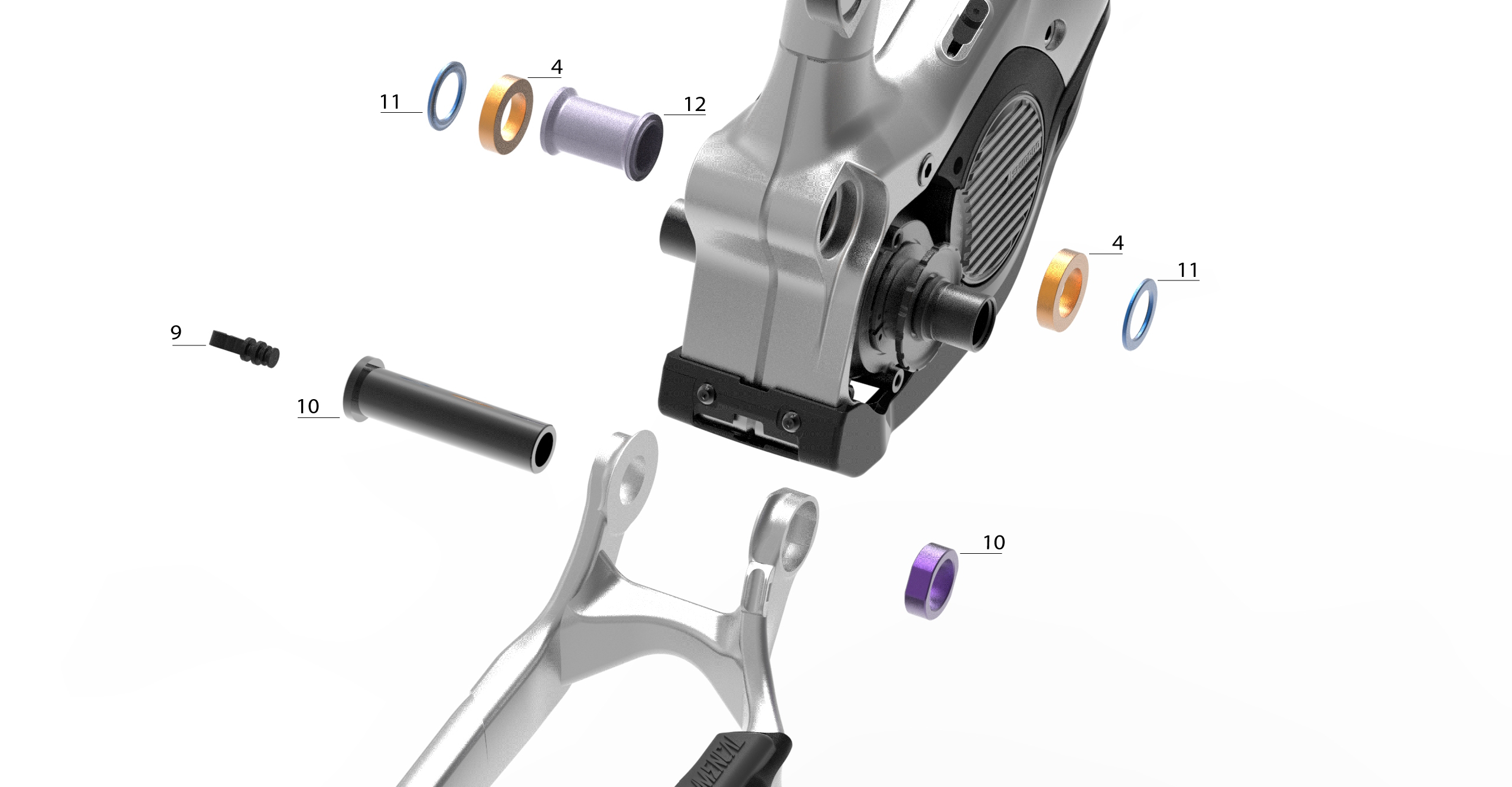

    Main Pivot
    Index Ref Nom Photo
    10 W18MPWAXLEMP MAIN PIVOT AXLE META POWER 30-35 N.m
    11 W18MPWWASHERMP MAIN PIVOT WASHER META POWER
    12 W18MPWMPSPACER MAIN PIVOT SPACER FOR META POWER
    4 W19EB6804 BEARING ENDURO BEARING 6804 LLU MAX 20 x 32 x 7
    9 W20MPWHOSEGUIDE HOSE GUIDE FOR MAIN PIVOT META POWER
    BEARING KIT W21EBMETA29 ENDURO BEARINGS META 29 2 x 6804 / 6 x 6902 / 4 x 6800

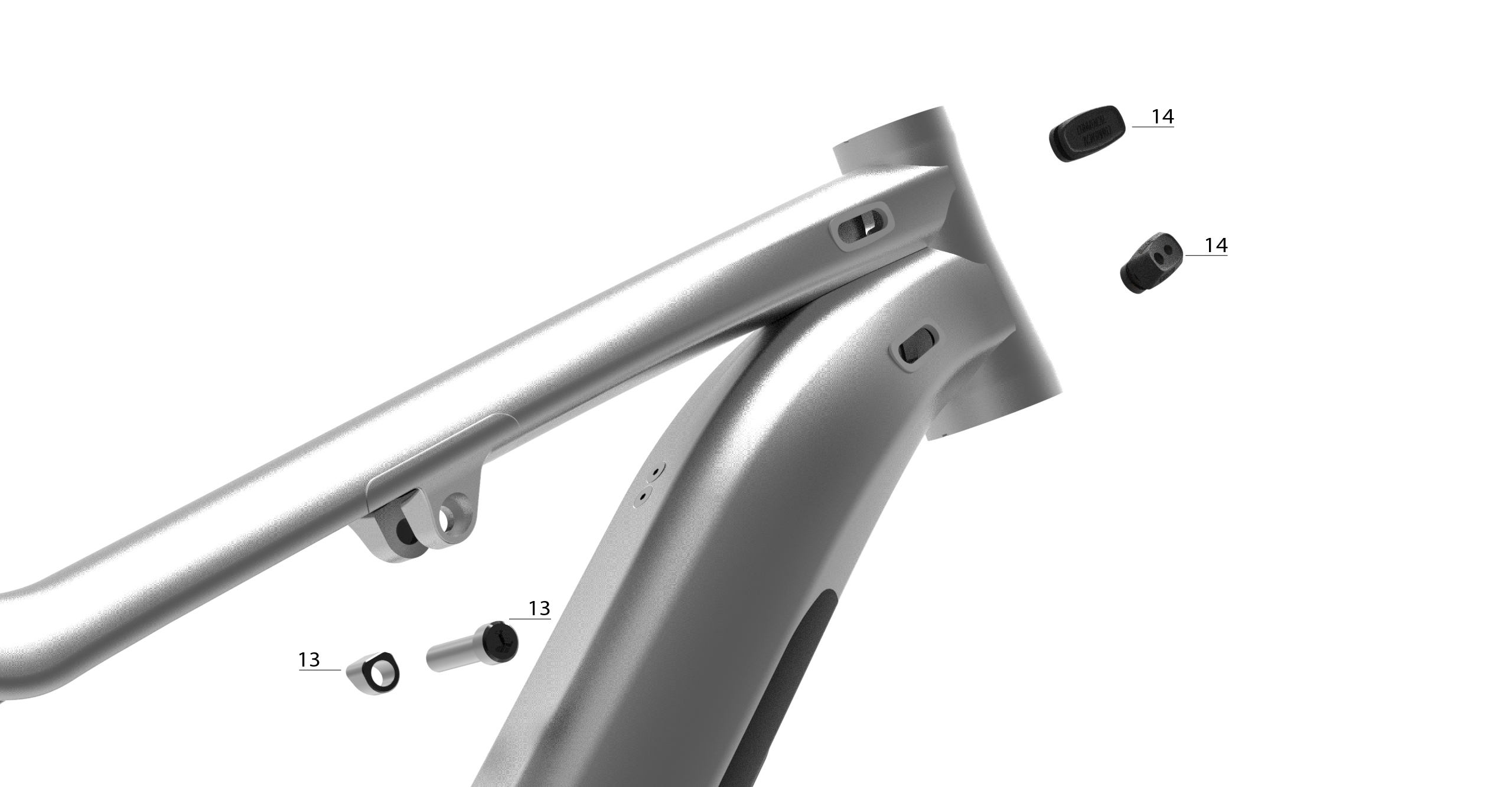

    Seals
    Index Ref Nom Photo
    13 W17AXLESHTT UPPER SHOCK AXLE FOR META V4.2 9 - 12 N.m
    14 W18SEAL1H INTERNAL ROUTING SEAL - 1 HOLE
    14 W18SEAL2H INTERNAL ROUTING SEAL - 2 HOLES
    14 W18SEALNOH INTERNAL ROUTING SEAL - NO HOLE

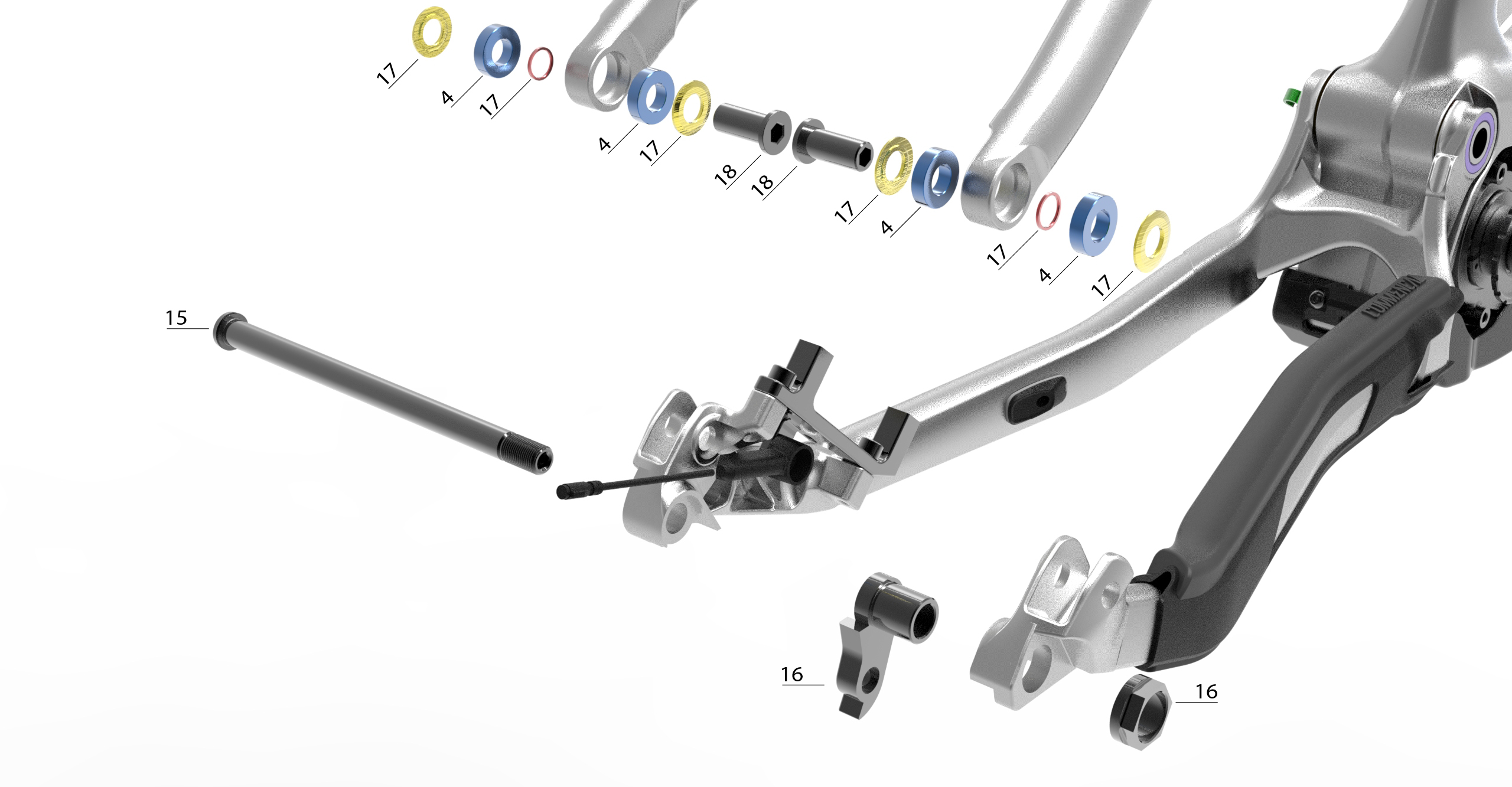

    Chainstays / Seatstays
    Index Ref Nom Photo
    15 W19AXLEWHEELBOOST REAR WHEEL AXLE - MAXLE BOOST STANDARD 12 N.m
    16 W15RHRMETA REAR HANGER FOR META HT / V4 / V4.2 / POWER 15 N.m
    17 W15WASHSTKIT WASHER KIT SEASTSTAY/CHAINSTAY FOR META FROM 2015
    18 W15AXLESTCS AXLE KIT CHAINSTAY SEATSTAY FOR META FROM 2015 10-15 N.m
    4 W21EB6800 ENDURO BEARINGS 6800 LLU MAX 10 x 19 x 5
    BEARING KIT W21EBMETA29 ENDURO BEARINGS META 29 2 x 6804 / 6 x 6902 / 4 x 6800

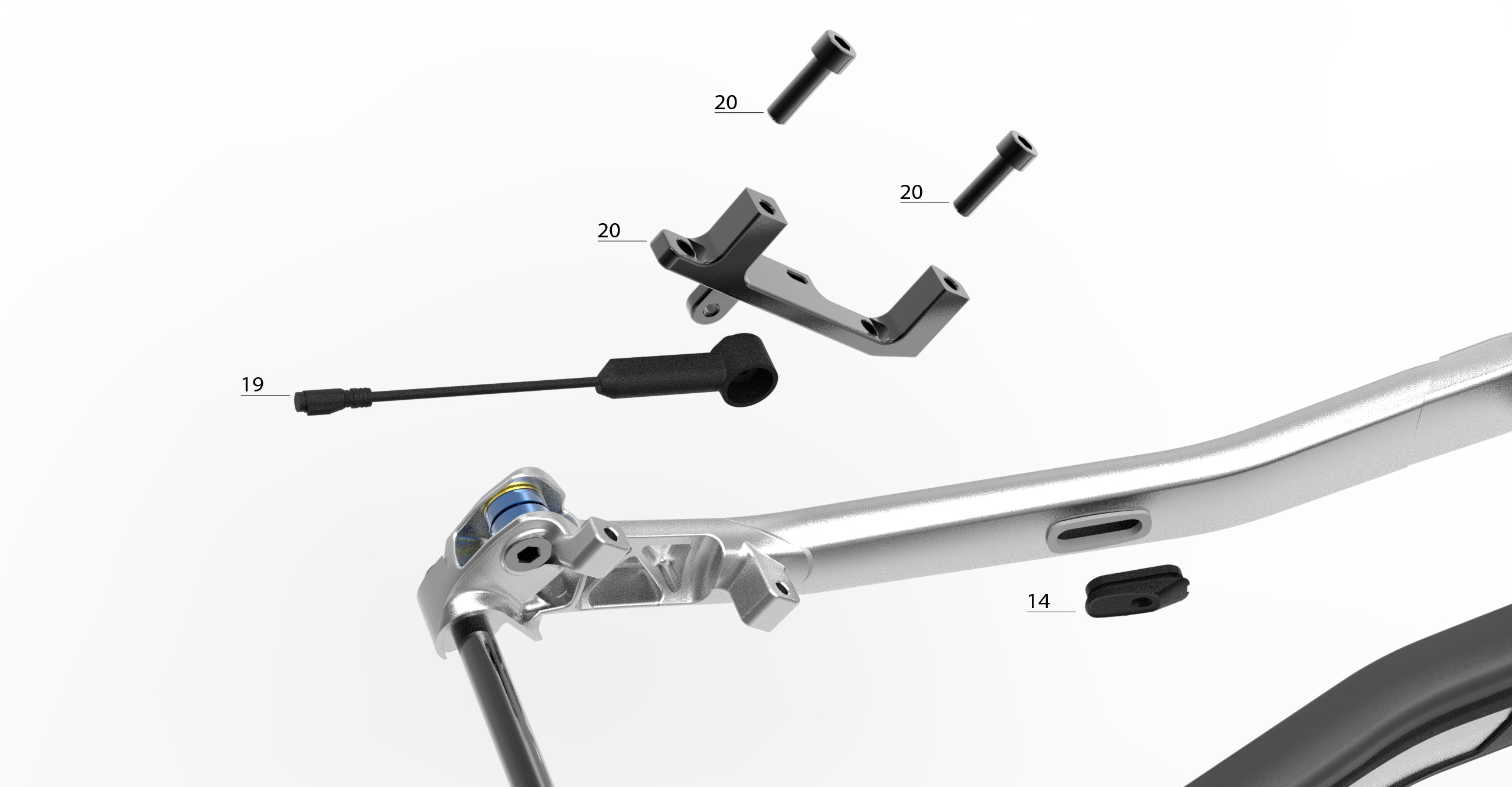

    Brake Hanger
    Index Ref Nom Photo
    14 W18SEAL1H INTERNAL ROUTING SEAL - 1 HOLE
    19 W20SHIMISMDUE10A SPEED SENSOR 1400 MM SHIMANO E8000 META POWER
    20 W20MPWBRAKEH200 200 MM REAR BRAKE MOUNT META POWER V2
    20 W20MPWBRAKEH220 220 MM REAR BRAKE MOUNT META POWER V2

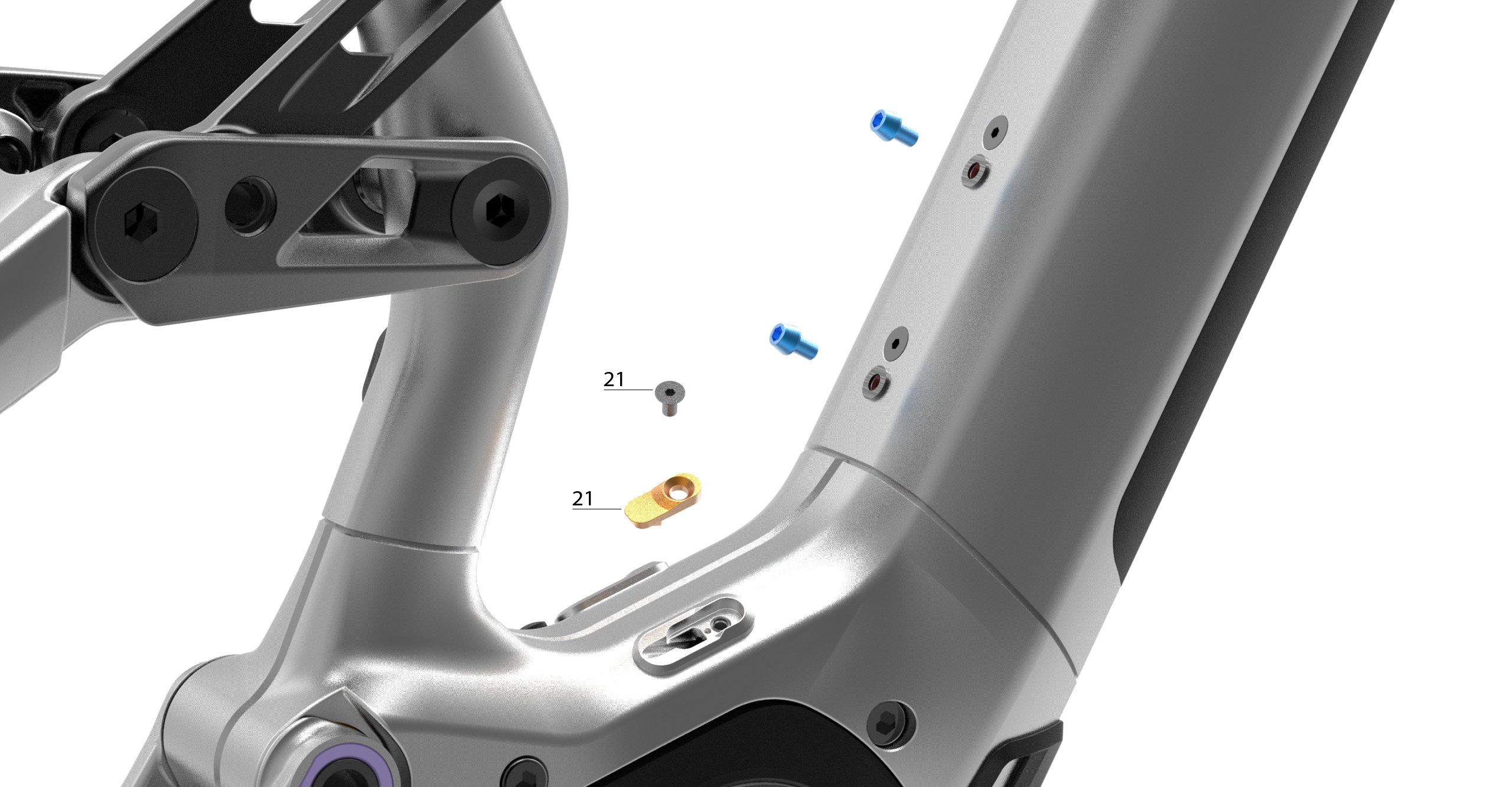

    Hose Guide
    Index Ref Nom Photo
    21 W19CLHCABLEGUIDEB BOTTOM CABLE GUIDE CLASH 3 N.m

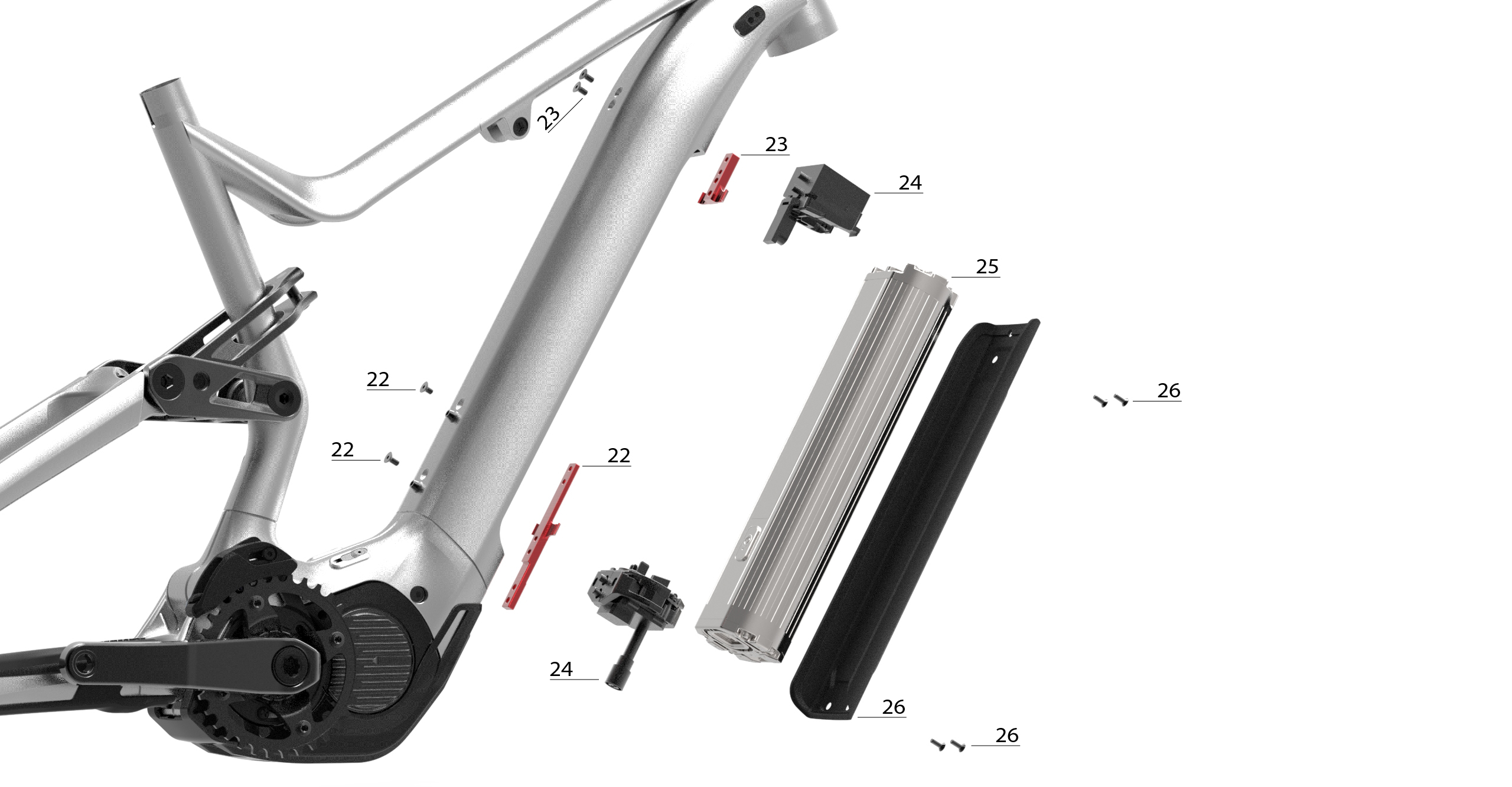

    Battery
    Index Ref Nom Photo
    22 W20MPWBATMOUNTB BOTTOM BATTERY MOUNT ASSEMBLING KIT META POWER V2
    23 W20MPWBATMOUNTT TOP BATTERY MOUNT ASSEMBLING KIT META POWER V2
    24 W20SHIMIBME80311A INTEGRATED BATTERY MOUNT SHIMANO E8000 META POWER
    25 A20BATTERYSHIMI SHIMANO STEPS BT-E8035 BATTERY
    26 W20MPWPROTECBAT INTERNAL BATTERY PROTECTOR

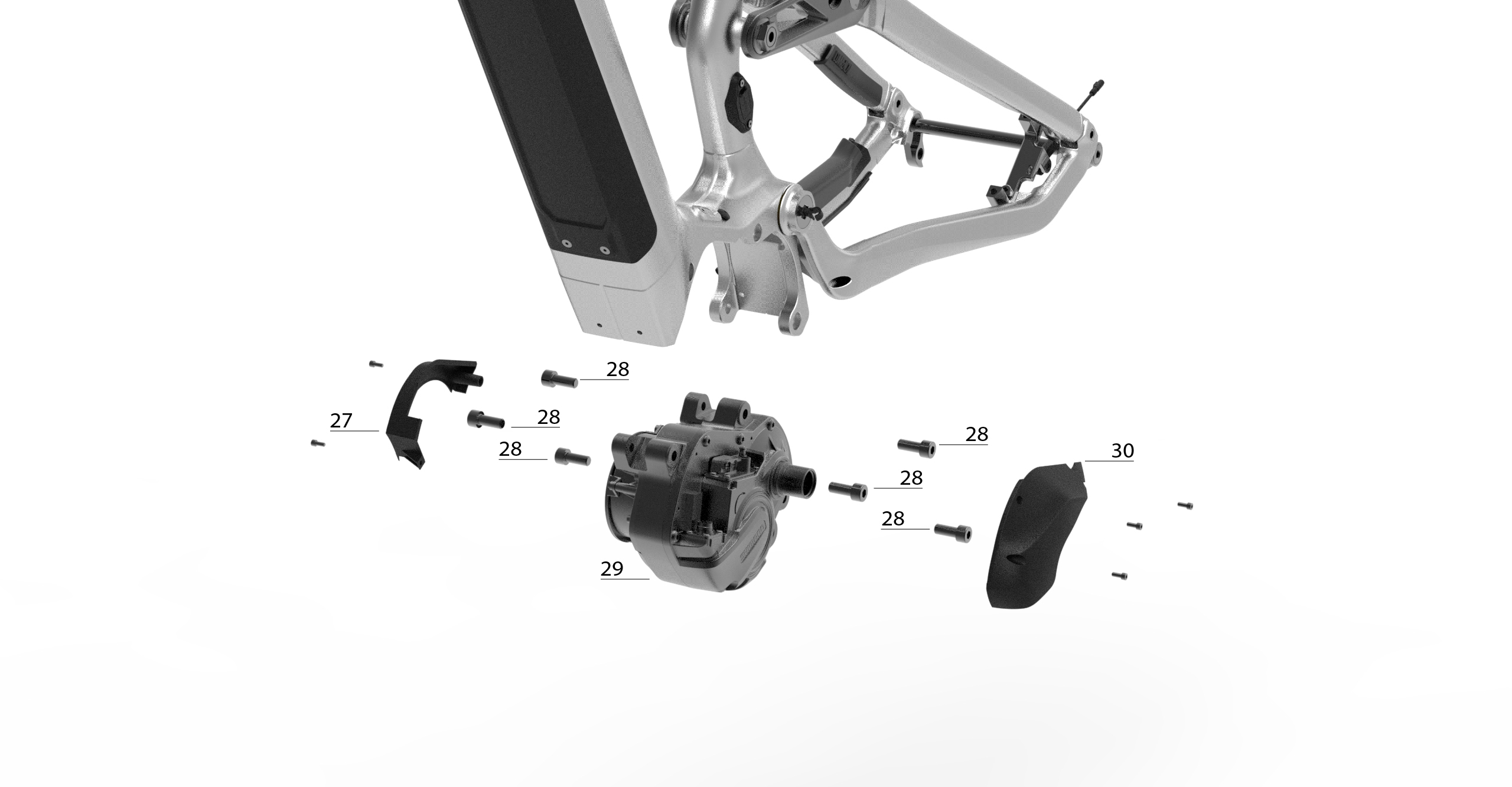

    Motor
    Index Ref Nom Photo
    27 W20MPWDUCOVER DRIVE UNIT RIGHT COVER SHIMANO E8000 META POWER
    28 W20MPWBOLTMOTOR FIXING BOLT SHIMANO MOTOR / FRAME META POWER 15 N.m
    29 W19SHIMDUE8000 DRIVE UNIT SHIMANO E8000 META POWER

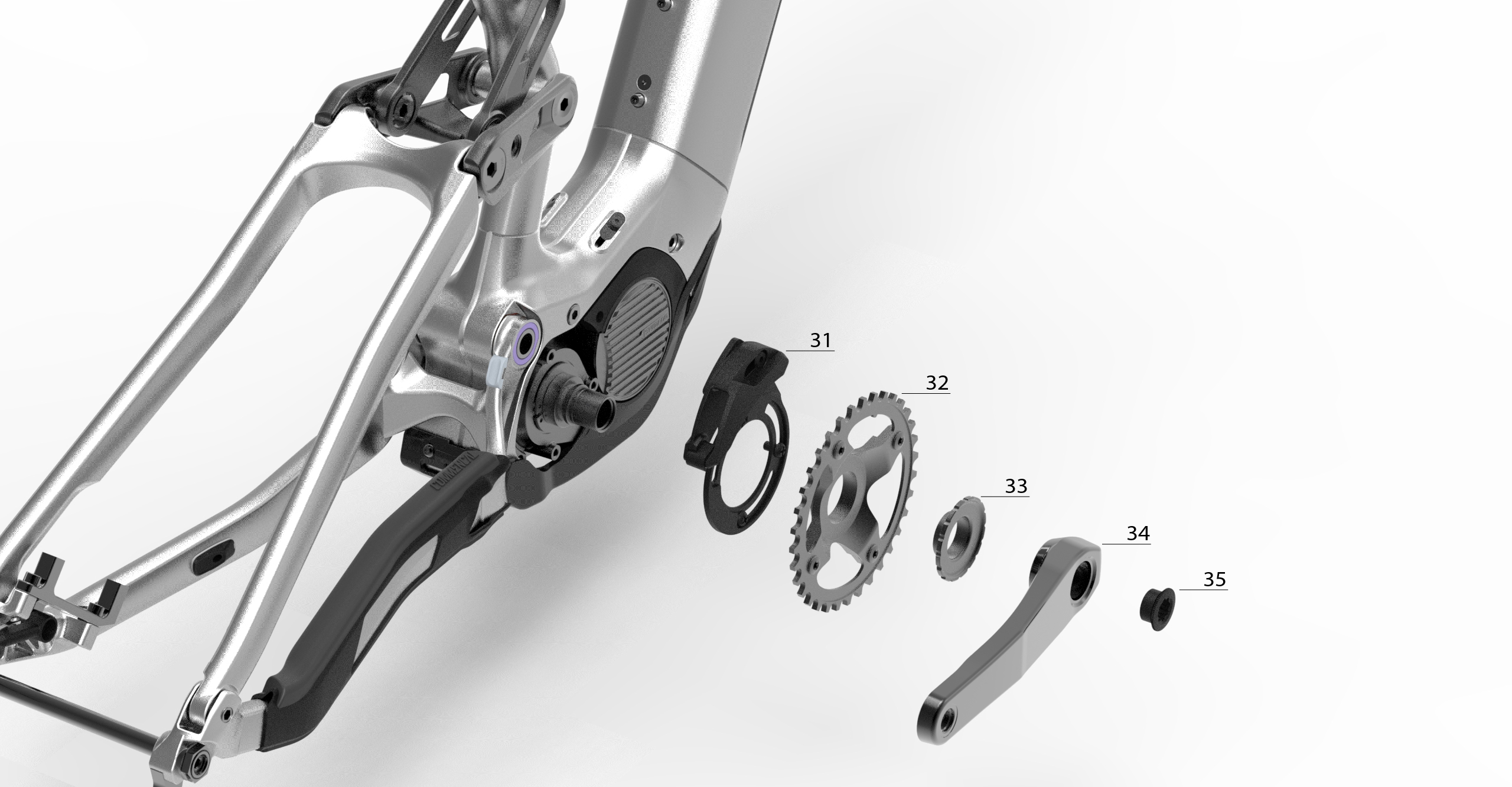

    CrankSet
    Index Ref Nom Photo
    31 A19ALPHACHGUE8000 RIDE ALPHA E8000 CHAIN GUIDE
    35 W19SHIMFCM582 CRANK ARM BOLT SHIMANO FCM582

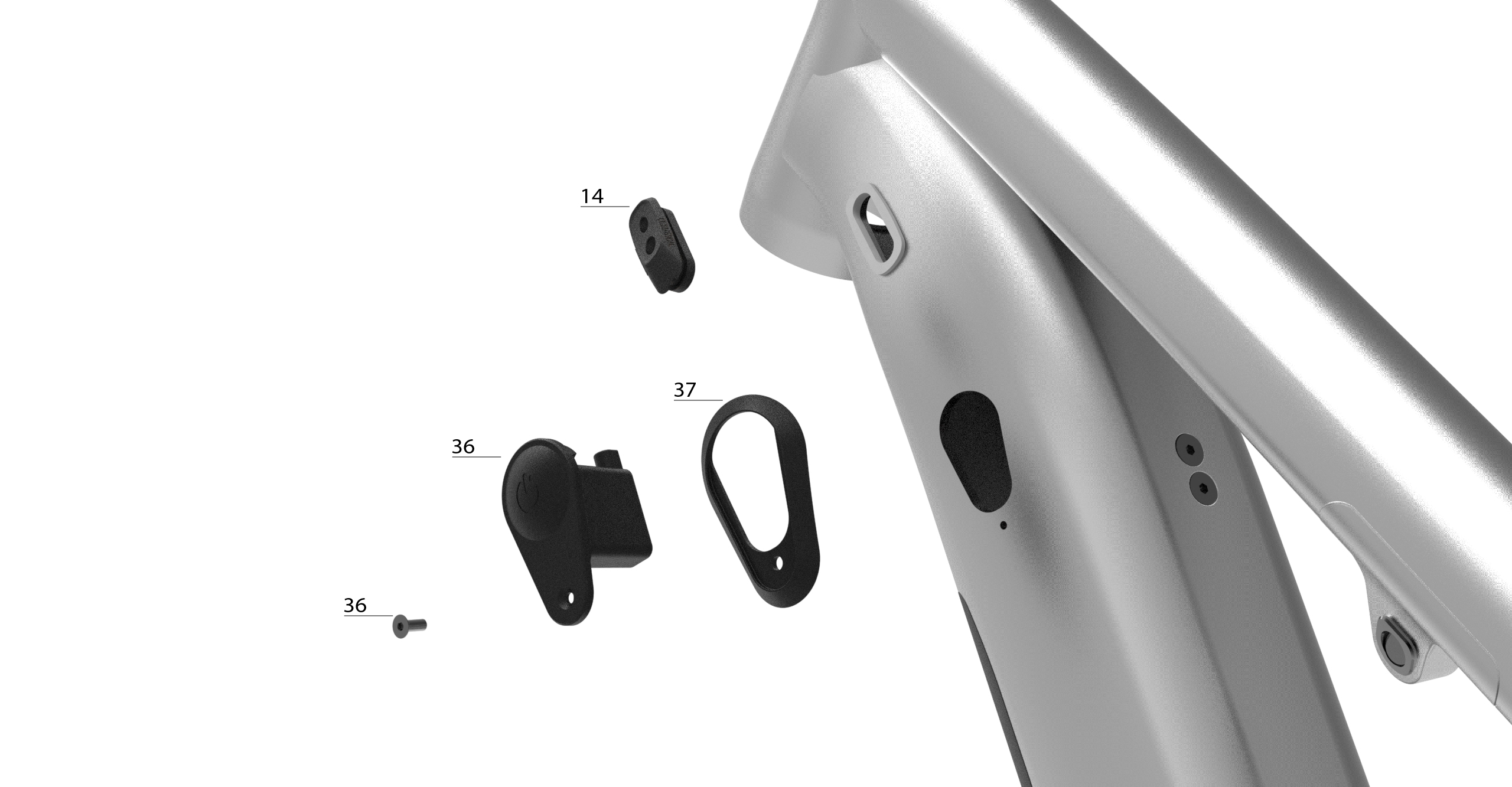

    Switch
    Index Ref Nom Photo
    14 W18SEAL2H INTERNAL ROUTING SEAL - 2 HOLES
    36 W20SHIMIEWSW100A SATELLITE POWER SWITCH SHIMANO E8000 META POWER INTERNAL BATTERY
    37 W20MPWSEALSWITCH ON / OFF SWITCH GROMMET META POWER

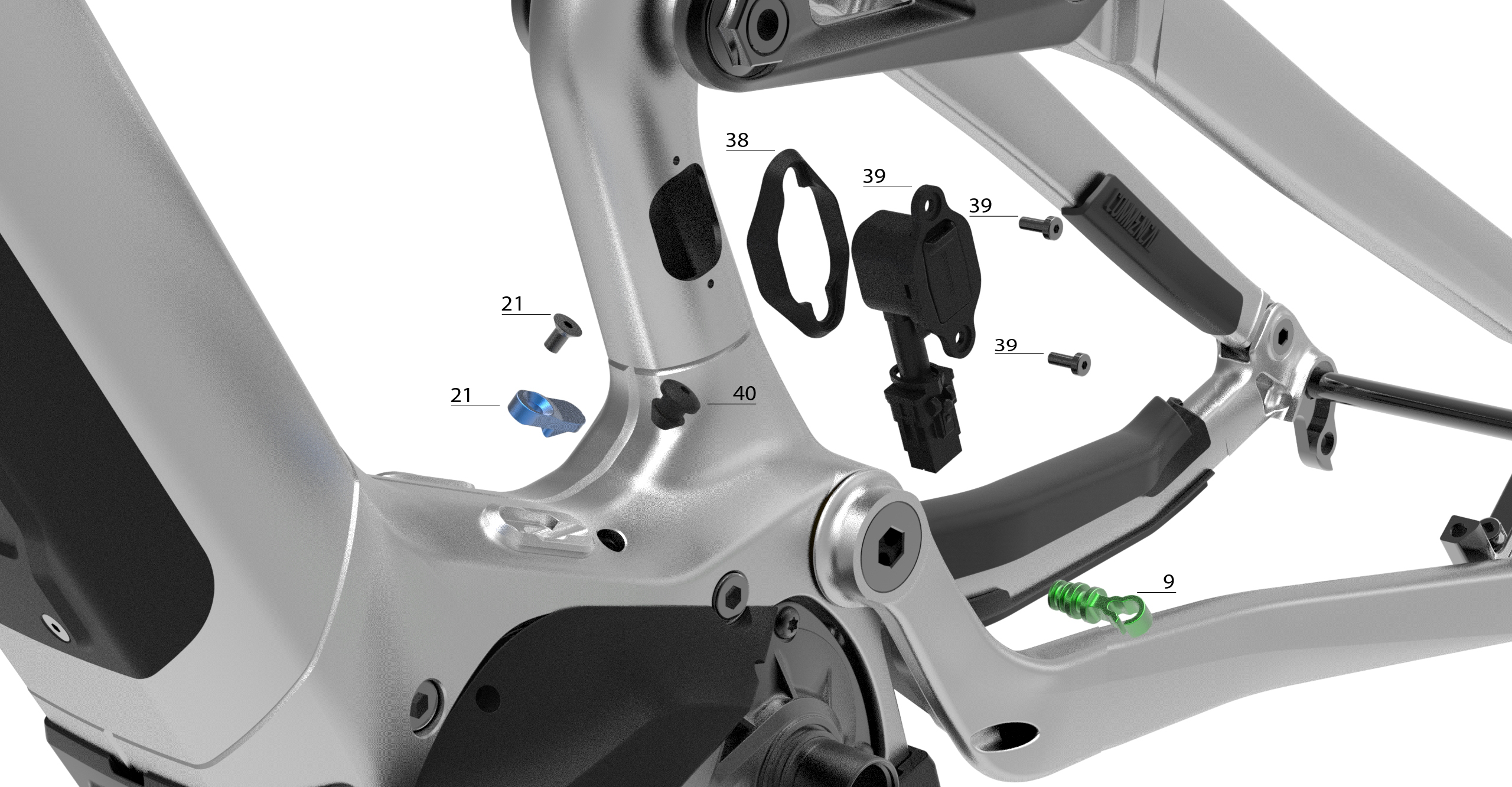

    Charge Port
    Index Ref Nom Photo
    21 W19CLHCABLEGUIDEB BOTTOM CABLE GUIDE CLASH 3 N.m
    38 W20MPWSEALCHARGE BATTERY CHARGING SLOP GROMMET
    39 W20SHIMIEWCP100A CHARGING PORT SATELLITE SHIMANO E8000 META POWER

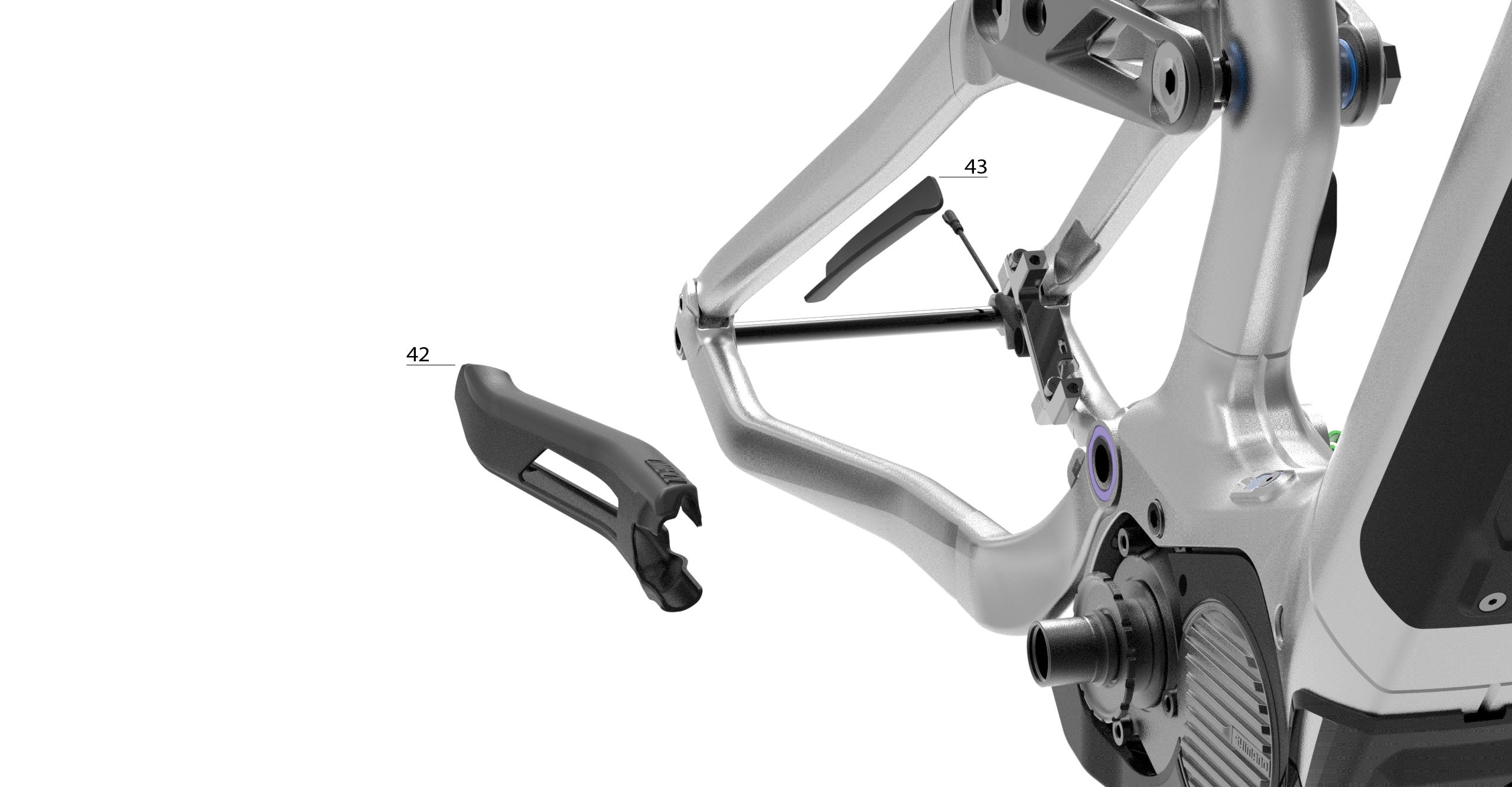

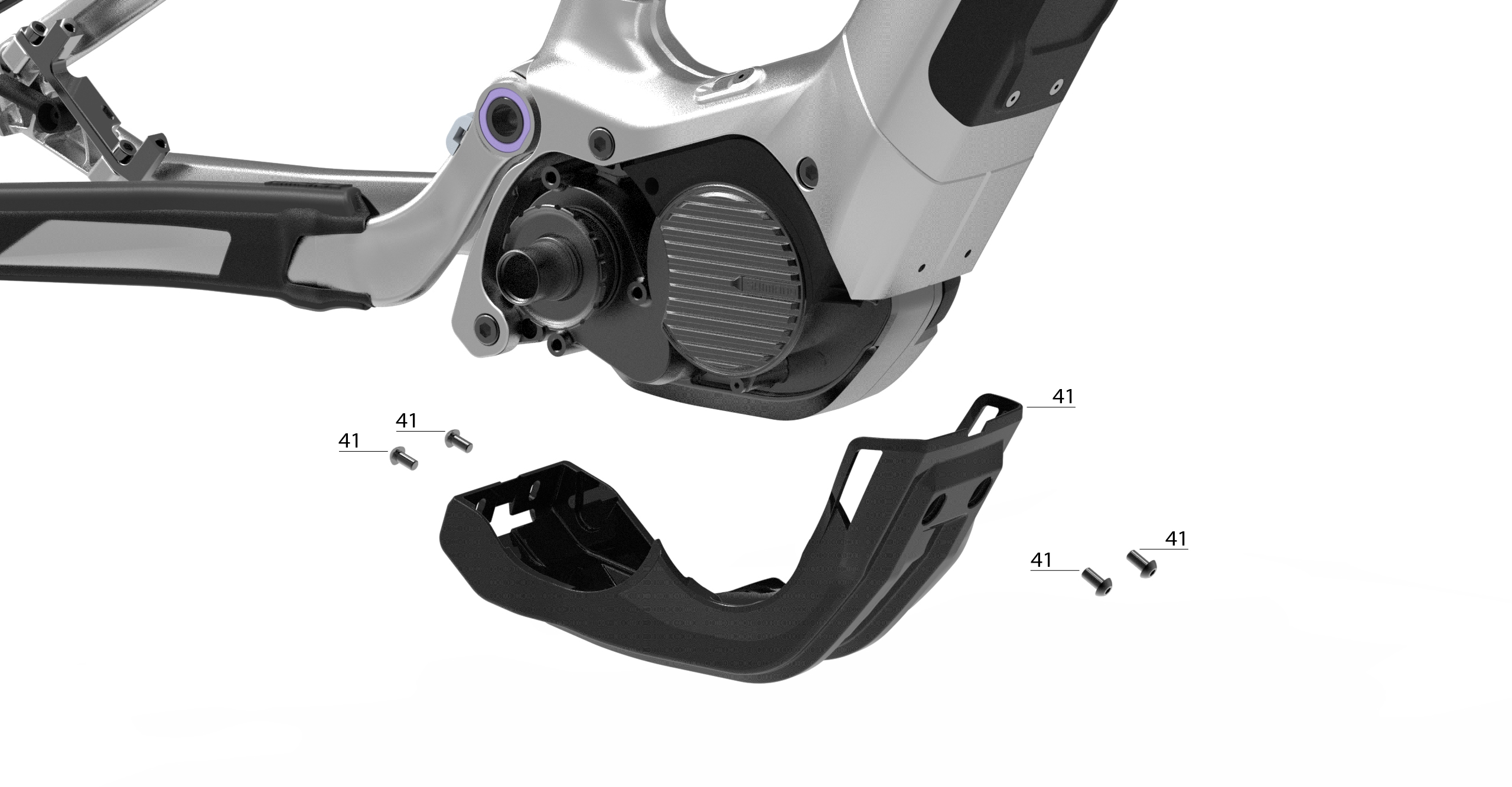

    Protectors
    Index Ref Nom Photo
    41 W20MPWPROTECMT DRIVE UNIT PROTECTOR META POWER
    Protectors
    Index Ref Nom Photo
    42 W19MPWPROTECCS CHAIN STAY PROTECTOR META POWER
    43 A16SSTPROTECMETAV4 SEATSTAY PROTECTOR FOR META V4
    PARTS
    Jeu de Direction
    ZS44 / 28,6 - ZS56 / 40
    Acheter
    Boitier de pédalier
    /
    Acheter
    Patte de dérailleur
    W15RHRMETA
    Acheter
    Corps de roue libre
    SHIMANO FHM7110B
    12 -
