COMMENCAL FURIOUS RACE BOXXER RED 2020

https://tech.commencal.com/tech/index.php?fiche=428&lang=

SPECS

Specs

FRAMENEW 2020 FURIOUS, 200 mm travel

27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

SHOCKROCKSHOX SuperDeluxe Ultimate DH

250 x 75 mm, compression, rebound

FORKROCKSHOX Boxxer Ultimate, 200 mm travel

27.5", Charger 2 damper, Debonair, high/low speed compression, rebound, Boost (20 x 110 mm), 46 mm offset

HEADSETACROS Alloy cups ZS44/ZS56

ZS44/ZS56, sealed bearings

STEMTRUVATIV Descendant DH 35 mm, 50 mm

35 mm, direct mount, 0° angle, Boxxer Gray

BARTRUVATIV Descendant DH 35 mm, 25 mm rise, 800 mm

7050 alloy, double butted

GRIPSRIDE ALPHA, DH Grips, black

Ultra soft compound, single clamp

BRAKESSRAM Code RSC, 220 mm front and 200 mm rear

4 pistons

SHIFTERSSRAM GX DH, 7 sp

CHAIN GUIDEE13 TRS

ISCG05, 32-34t

REAR MECHSRAM XO1 DH, 7 sp

Medium cage

BOTTOM BRACKETSRAM DUB Pressfit

107 mm

CRANKSETSRAM Descendant DH, 165 mm, 34t chainring

Boost, DUB

CHAINKMC X11EL

Extra-light, black

CASSETTESRAM GX DH, 7 sp

11-25t

RIMSDT SWISS FR 1950

32 holes, 30 mm inner width, tubeless ready

HUBSDT SWISS 240

32 holes, 6 bolts, Boost 20 x 110 mm front, 12 x 150 mm rear, Ratchet System 18

SPOKES / NIPPLESDT SWISS Competition

TYRESSCHWALBE Magic Mary, 27.5x2.35, Front / SCHWALBE Magic Mary, 27.5x2.35, Rear

Super Gravity, Addix Soft compound, front / Super Gravity, Addix Soft compound, rear

SEATPOSTSDG Alloy Micro

31,6 mm, 250 mm, alloy 2014, Micro I-Beam

SADDLESDG Patriot

Micro I-Beam

WEIGHT15,7 kg / 34.6 lbs

PEDALS INCLUDEDNO

COLOURBoxxer Red

Shiny clear coat

ACCESSORIESDown tube protector, chainstay protector, seatstay protector, shuttle protector

TECH

Tech

BICYCLE TYPECadre Descente / Freeride

FRAME MATERIALAl 6066T6

FRAME WEIGHT- kg

REAR TRAVEL200 mm

SHOCK LENGTH / STROKE250 mm / 75 mm

PIGGY BACK SHOCK COMPATIBLEYES

SHOCK BUSHINGS20 x 8 mm / 30 x 10 mm

RECOMMENDED / MAX. FORK HEIGHT581 mm / 595 mm

HEADSET DIMENSIONTAPERED 1-1/8" / 1-1/2"

HEADSET TYPEZS44/ZS56

MAXIMUM TYRE DIMENSION (ETRTO)65 mm

DISC BRAKE STANDARD Post Mount

REAR ROTOR MAX. SIZE203 mm

SEATPOST / SEAT CLAMP DIAMETER31,6 mm / 34,9 mm

BOTTOM BRACKET TYPEPress Fit BB 107

ISCGISCG 05

FRONT DERAILLEUR TYPENO

REAR HUB COMPATIBILITY150 x 12 mm

Riders Insight

The FURIOUS is top notch! It matches my style. I use it on DH tracks as well on big freeride jumps. Because of my riding style I like to attack and jump when exiting corners. We can really play with this bike, it suits me perfectly.Kyle StraitThis bike is perfect. My favorite bike I've ridden!dj BrandtI've already done a lot of trails and I feel extremely good on this bike. I am surprised how light it is!Andreu lacondeguyTo be honest, in terms of first feelings, it's just so easy to pick up speed!Andreu lacondeguyThe FURIOUS is really the perfect bike to ride bike park! At the same time it's crazy playful, stable and strong??? It's the ideal bike if you want to shred the bike park all summer long!Hugo FRIXTALON

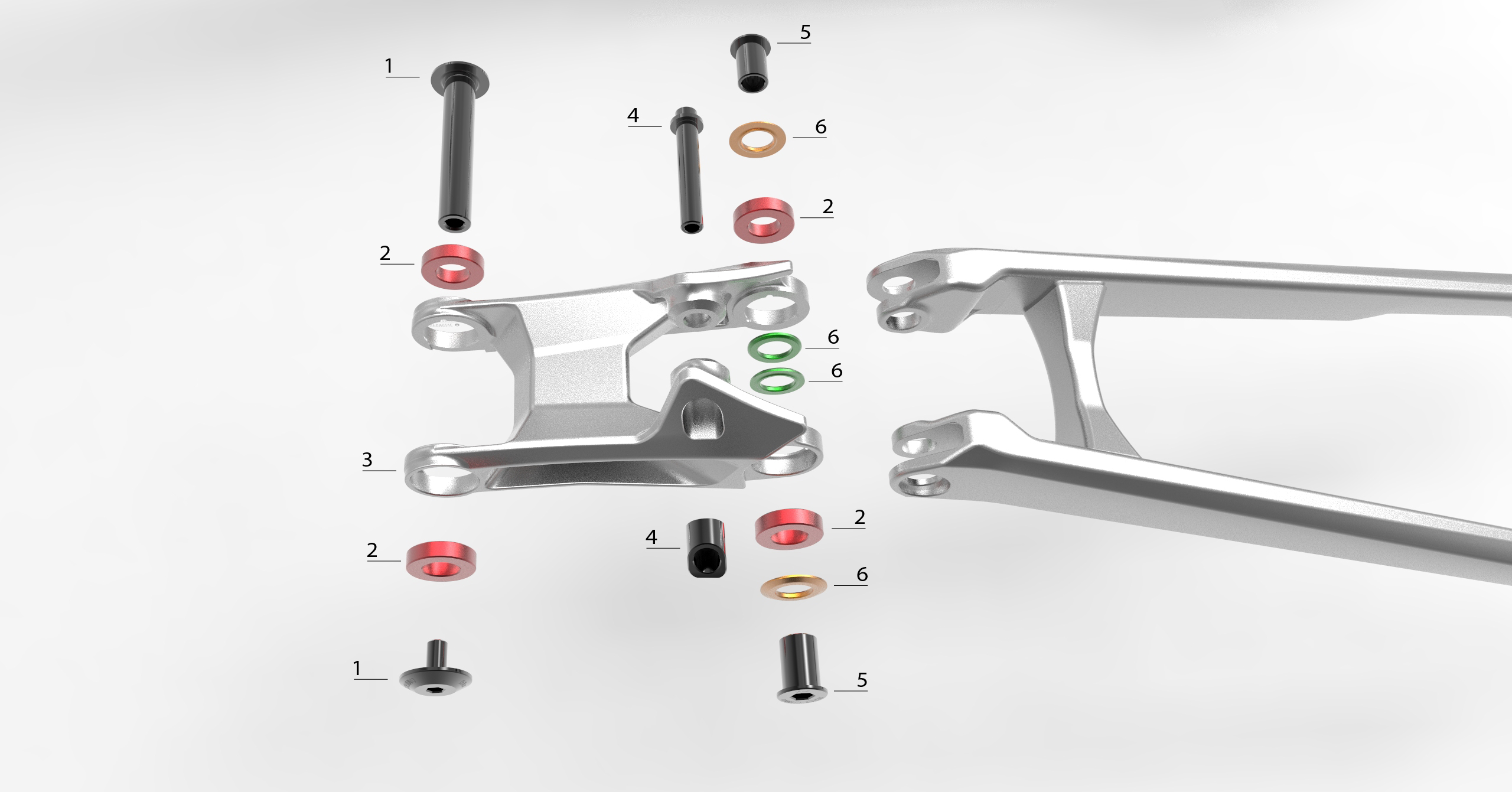

Contact System

Index	Ref	Nom		Photo
1	W20FUV3AXLERKFT	ROCKER / FRONT TRIANGLE AXLE FURIOUS V3	12 N.m
2	W19EB6902	BEARING ENDURO BEARING 6902 LLU MAX	15 x 28 x 7
3	W20FUV3ROCKER	BASCULEUR FURIOUS V3
4	W20FUV3AXLERKSH	SHOCK / ROCKER AXLE FURIOUS V3	12 N.m
5	W20FUV3AXLECS	SEAT STAY AXLE FURIOUS V3	15 N.m
6	W20FUV3WASHERCS	CONTACT SYSTEM WASHERS FURIOUS V3
BEARING KIT	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

Main Pivot

Index	Ref	Nom		Photo
2	W19EB6804	BEARING ENDURO BEARING 6804 LLU MAX	20 x 32 x 7
7	W20FUV3AXLEMP	MAIN PIVOT AXLE KIT FURIOUS V3	30-35 N.m
BEARING KIT	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

Chainstays / Seatstays

Index	Ref	Nom		Photo
2	W19EB6902	BEARING ENDURO BEARING 6902 LLU MAX	15 x 28 x 7
5	W20FUV3AXLECS	SEAT STAY AXLE FURIOUS V3	15 N.m
6	W20FUV3WASHERCS	CONTACT SYSTEM WASHERS FURIOUS V3
BEARING KIT	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

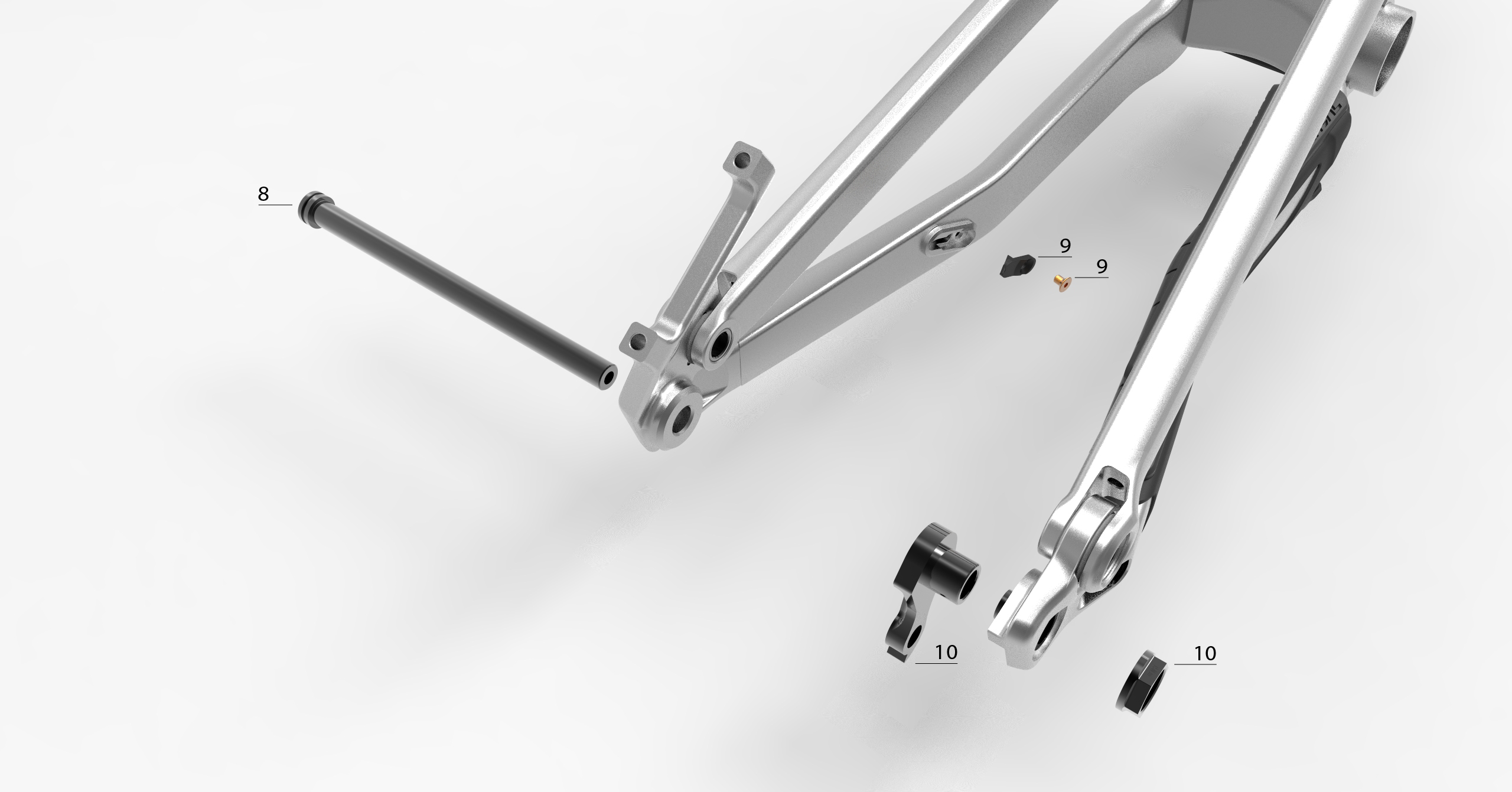

Dropouts

Index	Ref	Nom		Photo
10	W20FUV3RHR	MECH HANGER FURIOUS V3	10 N.m
8	W20FUV3AXLEWHEEL	REAR WHEEL AXLE FURIOUS V3	12 N.m
9	W19CLHCABLEGUIDEB	BOTTOM CABLE GUIDE CLASH	3 N.m

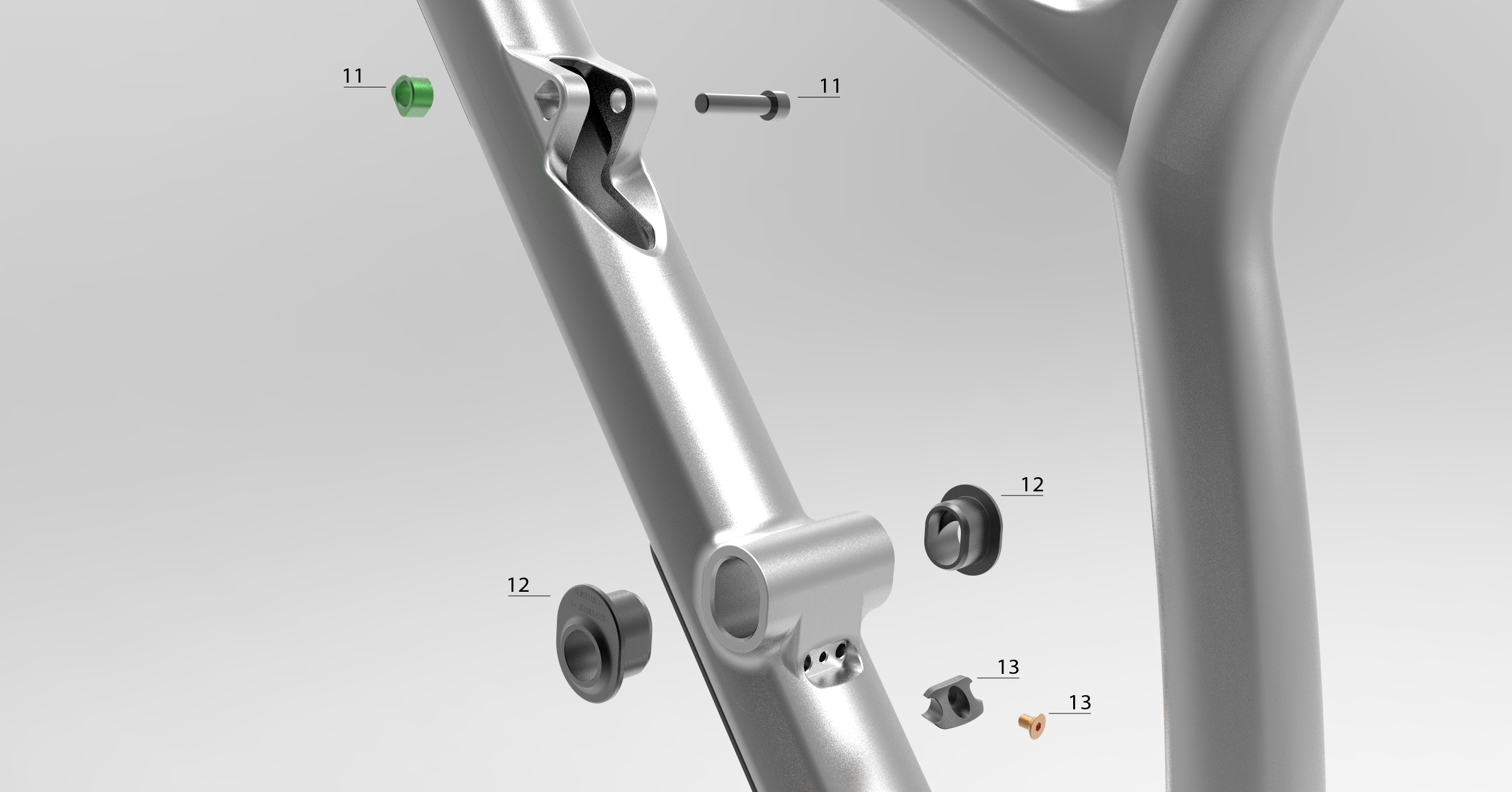

Downtube

Index	Ref	Nom		Photo
11	W16DHV4SHOCKAXLE	REAR SHOCK SCREW FOR SUPREME DH V4	9 N.m
12	W20FUV3INSRKFT	FLIP CHIP FURIOUS V3
13	W20FUV3CABLEGUIDET	TOP CABLE GUIDE FURIOUS V3	3 N.m

Downtube

Index	Ref	Nom		Photo
14	W20FUV3BUMPER	FORK BUMPER FURIOUS V3	1 N.m

Protectors

Index	Ref	Nom		Photo
15	W19CLHPROTECSS	SEAT STAY PROTECTOR CLASH
16	W19CLHPROTECCS	CHAIN STAY PROTECTOR CLASH
17	W20FUV3PROTECDT	DOWN TUBE PROTECTOR FURIOUS V3	3 N.m
18	W19PROTECPICKUP	DOWN TUBE PROTECTOR FOR TAIL GATE SHUTTLE
