COMMENCAL FURIOUS ORIGIN 2019

https://tech.commencal.com/tech/index.php?fiche=348&lang=

SPECS

FRAME	2019 FURIOUS 27.5 200 mm travel
SHOCK	SUPER DELUXE R, 250 x 75 mm, Rebound. Bottomless Tokens: 2 / Internal Tune (Rebound/Compression): Medium/Medium
FORK	ROCKSHOX BOXXER RC, Rebound, Compression, Air, Boost 110 x 20 mm. Bottomless Tokens: 0
HEADSET	ACROS Fiber ZS44/ZS56, sealed bearings
STEM	RIDE ALPHA DH Direct Mount, 40 mm, 31.8 mm
BAR	RIDE ALPHA, Alloy 7075, double butted, 30 mm rise, 780 mm, 31.8 mm
GRIPS	RIDE ALPHA, DH Grips, ultra soft compound, single clamp
BRAKES	SRAM GUIDE RE, 200 mm / 200 mm
SHIFTERS	SRAM X5, 9 speed
CHAIN GUIDE	E13 TRS, steel
REAR MECH	� / SRAM X7, 9 speed
BOTTOM BRACKET	E13 Pressfit BB92
CRANKSET	E13 LG1, 34T, 165 mm, 24 mm axle
CHAIN	YABAN S9
CASSETTE	SRAM PG 950, 9 speed 11-28
RIMS	ALEXRIMS FR 37, 32 holes, 30mm inner width
HUBS	FORMULA DH, 32 holes, sealed bearings
SPOKES / NIPPLES	SAPIM RACE spokes, stainless steel, 2.0 mm / 1.8 mm / 2.0 mm
TYRES	SCHWALBE MAGIC MARY 27.5" x 2.35" ADDIX, Bike Park, DH Casing, front & rear
SEATPOST	RIDE ALPHA DH, 31.6 mm, no offset, 300 mm
SADDLE	RIDE ALPHA DH Saddle, Cr-Mo rails
WEIGHT	17.1 kg
PEDALS INCLUDED	No
ACCESSORIES	Down tube protector, chainstay protector, seatstay protector

TECH

BICYCLE TYPE	DH, full suspended competition bike
FRAME MATERIAL	NEC + ULTRA XTRM (aluminium 6061 triple butted)
FRAME WEIGHT	4.2 kg
REAR WHEEL TRAVEL	200 mm
SHOCK LENGTH / STROKE	250 x 75 mm
PIGGY BACK SHOCK COMPATIBLE	Yes
SHOCK BUSHINGS	20 x 8 mm
RECOMMENDED / MAX FORK HEIGHT	585 mm / 595 mm
HEADSET DIMENSION	Tapered 1 1/8" / 1 1/2"
HEADSET TYPE	ZS44 / ZS56
MAXIMUM TYRE DIMENSION (ETRTO)	70 mm
DISC BRAKE STANDARD	International standard
REAR ROTOR MAX SIZE	203 mm
SEATPOST / SEAT CLAMP DIAMETER	31.6 mm / 34.9 mm
BOTTOM BRACKET TYPE	Press fit BB107 (compatible with BB92)
ISCG	ISCG05
FRONT DERAILLEUR TYPE	No
REAR HUB COMPATIBILITY	150 x 12 mm

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	269 mm	271 mm
ARRIÈRE	270 mm	269 mm

GEOMETRIE

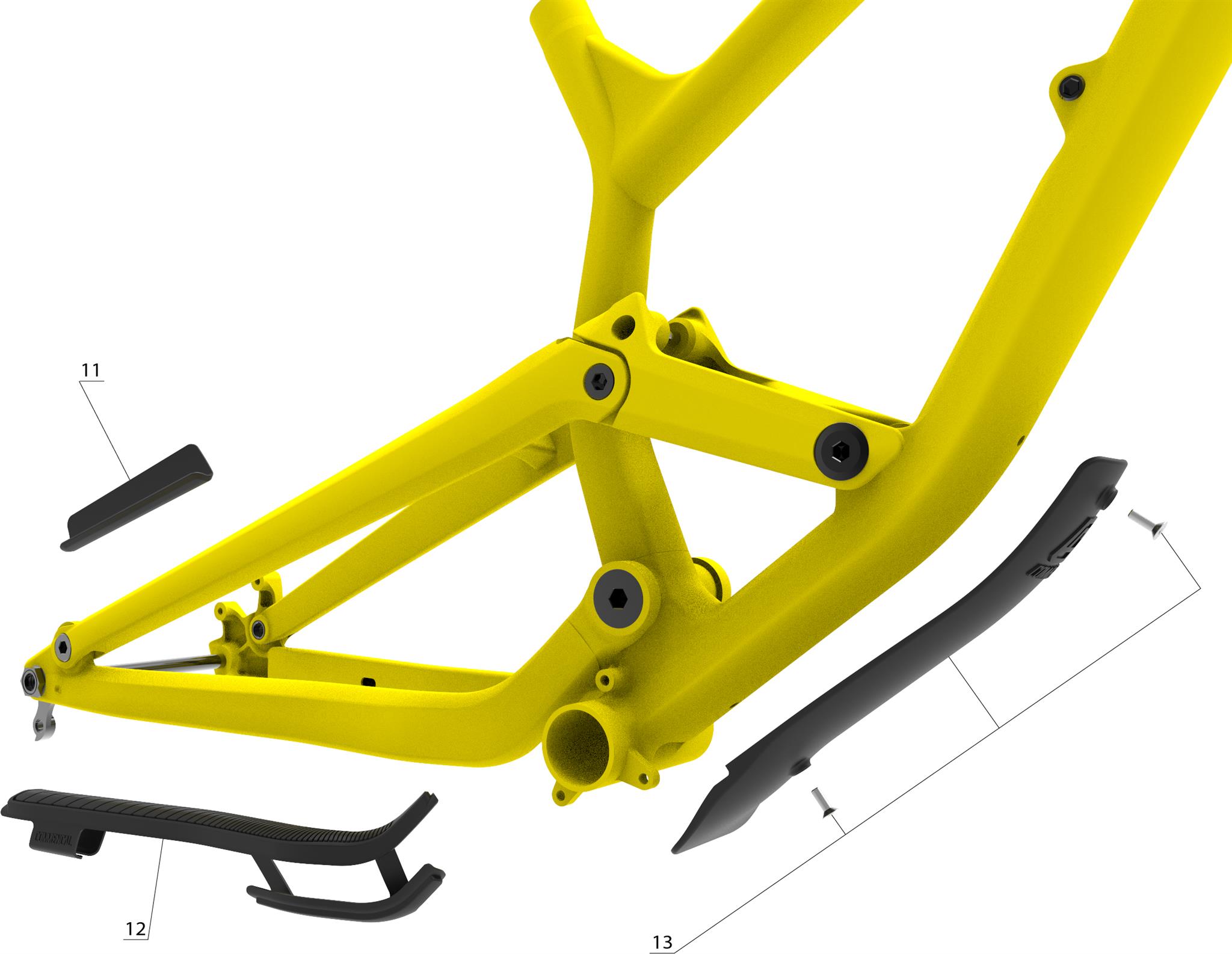

Accessories

Index	Ref	Nom		Photo
11	W17FUPROTECSS	SEAT STAY PROTECTOR FURIOUS V2
12	W17FUPROTECCS	CHAIN STAY PROTECTOR FURIOUS V2
13	W17FUPROTECDT	DOWN TUBE PROTECTOR FURIOUS V2	3 N.m

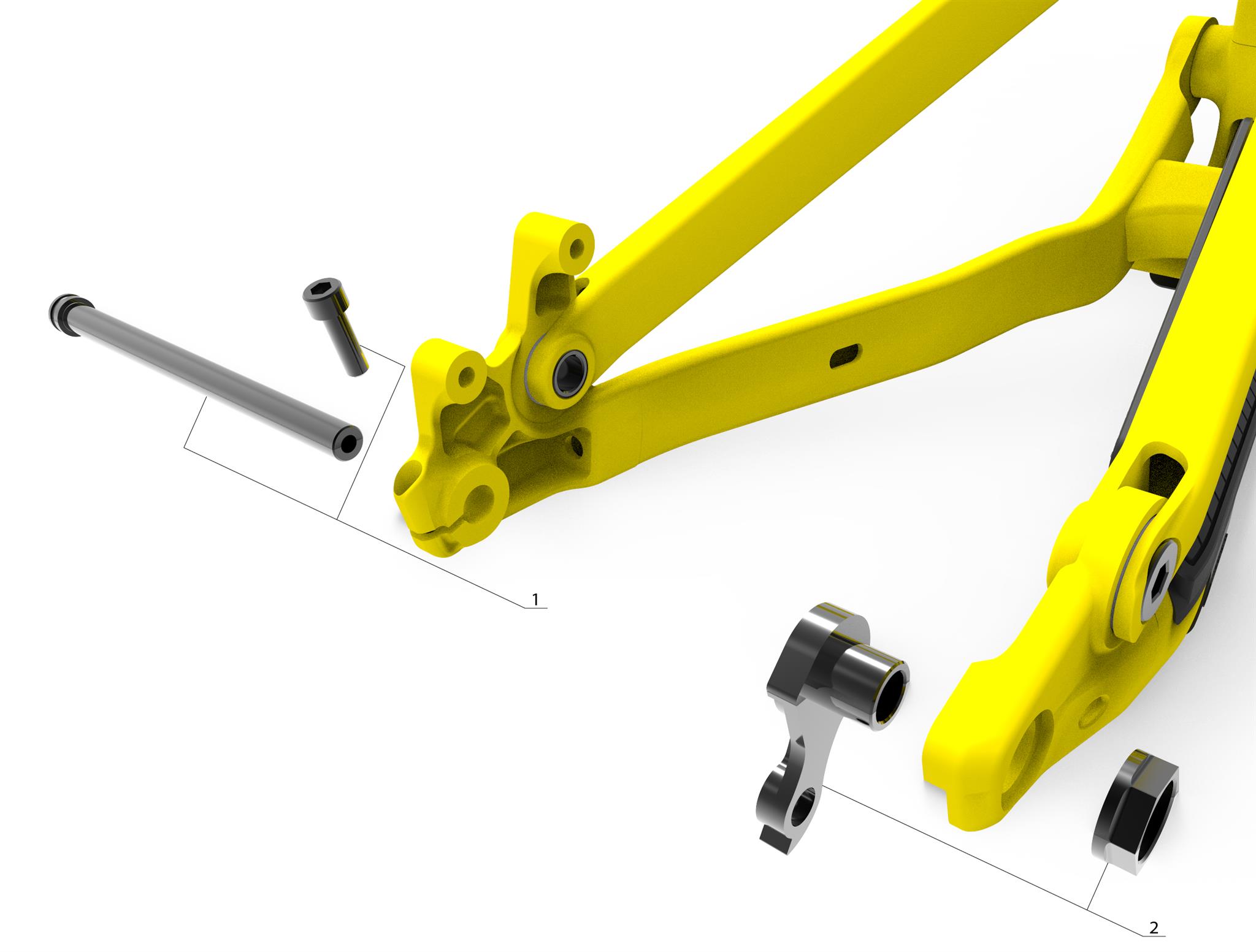

Dropouts

Index	Ref	Nom		Photo
1	W17FUWHEELAXLE	REAR WHEEL AXLE FURIOUS V2	12 N.m
2	W13RHRSUPFR	REAR HANGER FOR SUPREME DH V3 / FR / PARK & FURIOUS	20-25 N.m

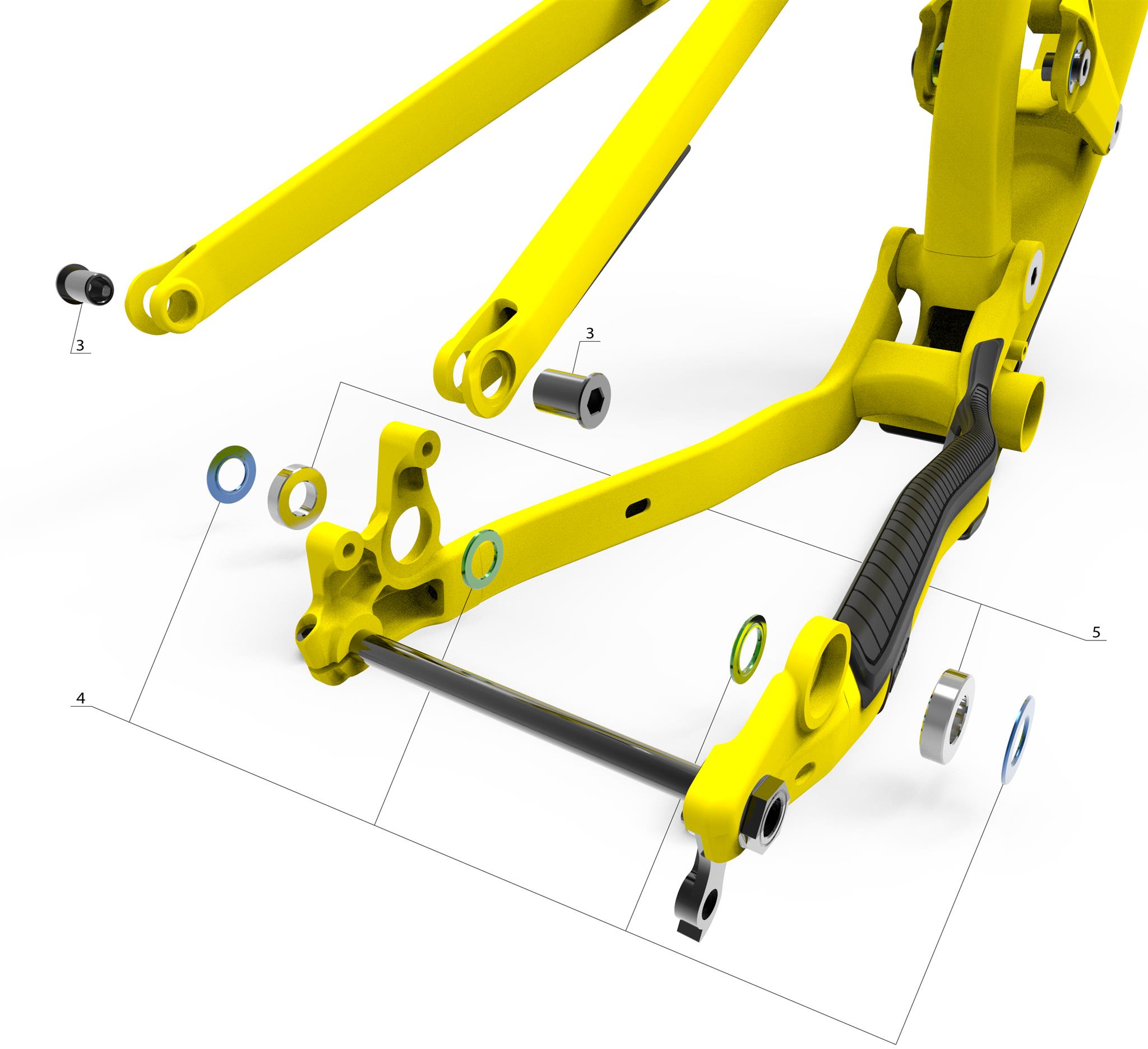

Chain stays / seat stays

Index	Ref	Nom		Photo
3	W17FUAXLECS	SEATSTAY AXLE KIT FURIOUS V2	12-15 N.m
4	W17FUWASHERSS	SEATSTAY WASHER KIT FURIOUS V2
5	W19EB6902	BEARING ENDURO BEARING 6902 LLU MAX	15 x 28 x 7
BEARING KIT	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

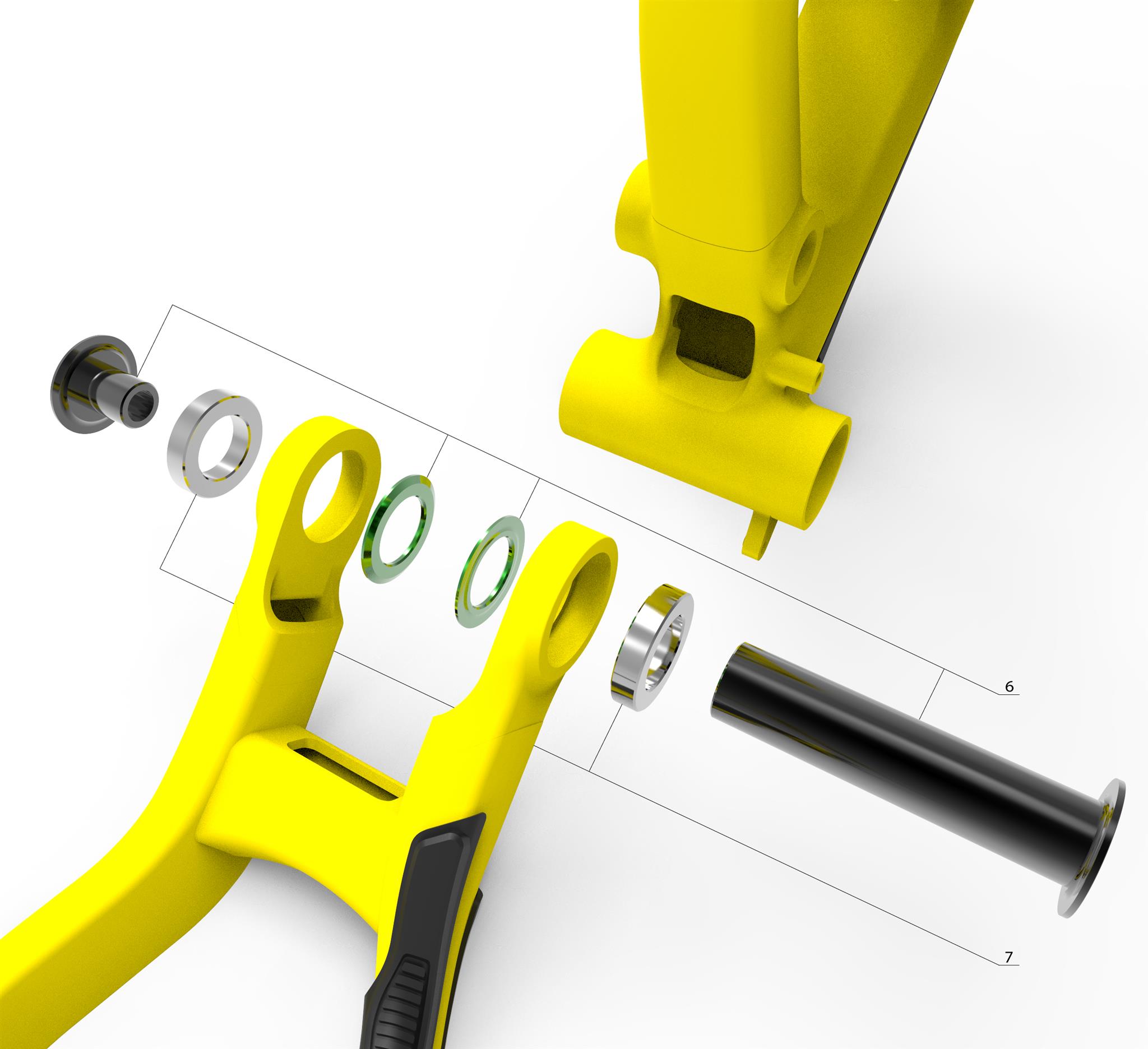

Main pivot

Index	Ref	Nom		Photo
6	W17FUAXLEMP	MAIN PIVOT AXLE KIT FURIOUS V2	25-30 N.m
7	W19EB6804	BEARING ENDURO BEARING 6804 LLU MAX	20 x 32 x 7
BEARING KIT	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

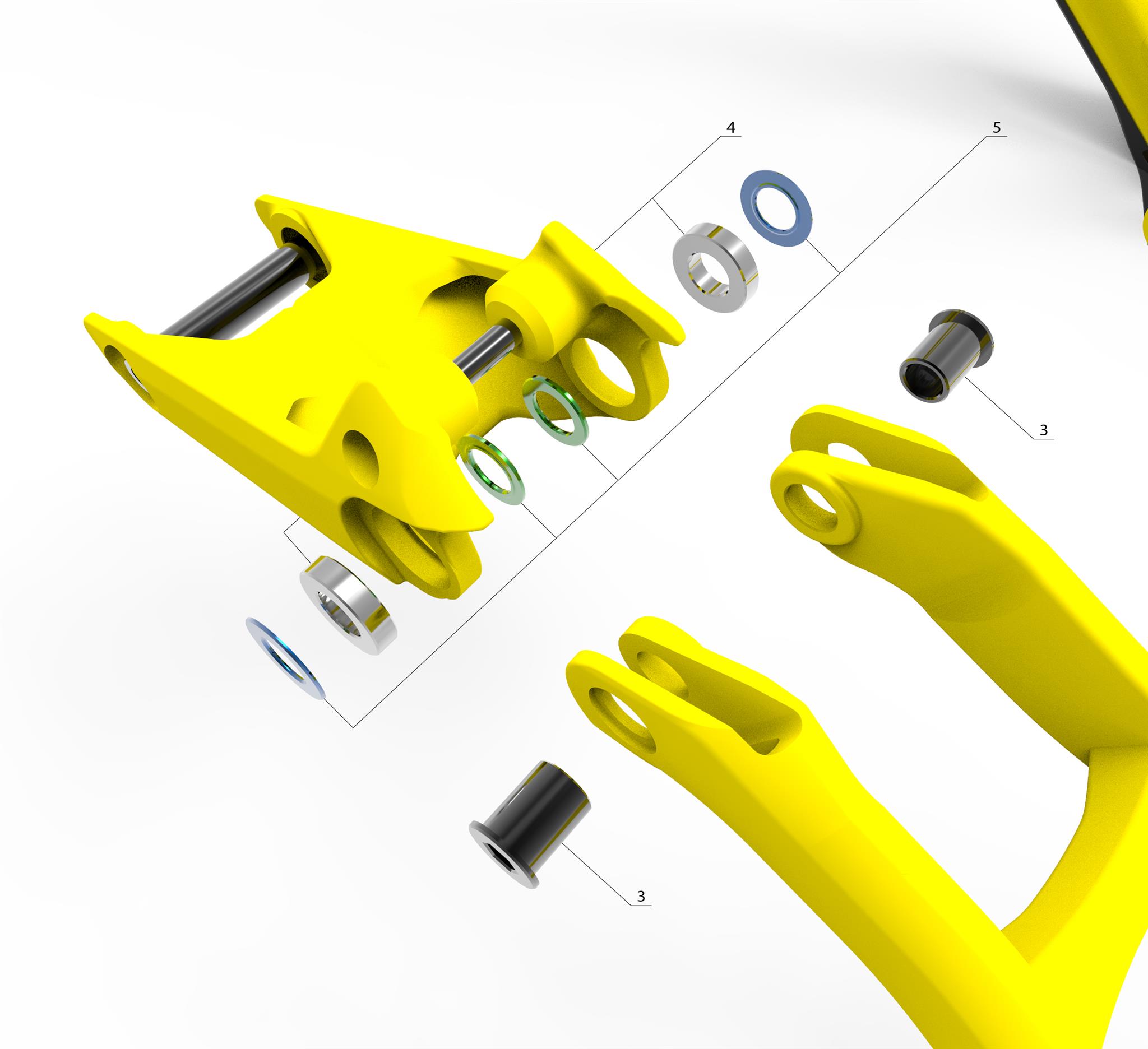

Rocker / seat stays

Index	Ref	Nom		Photo
3	W17FUAXLECS	SEATSTAY AXLE KIT FURIOUS V2	12-15 N.m
4	W19EB6902	BEARING ENDURO BEARING 6902 LLU MAX	15 x 28 x 7
5	W17FUWASHERSS	SEATSTAY WASHER KIT FURIOUS V2
BEARING KIT	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

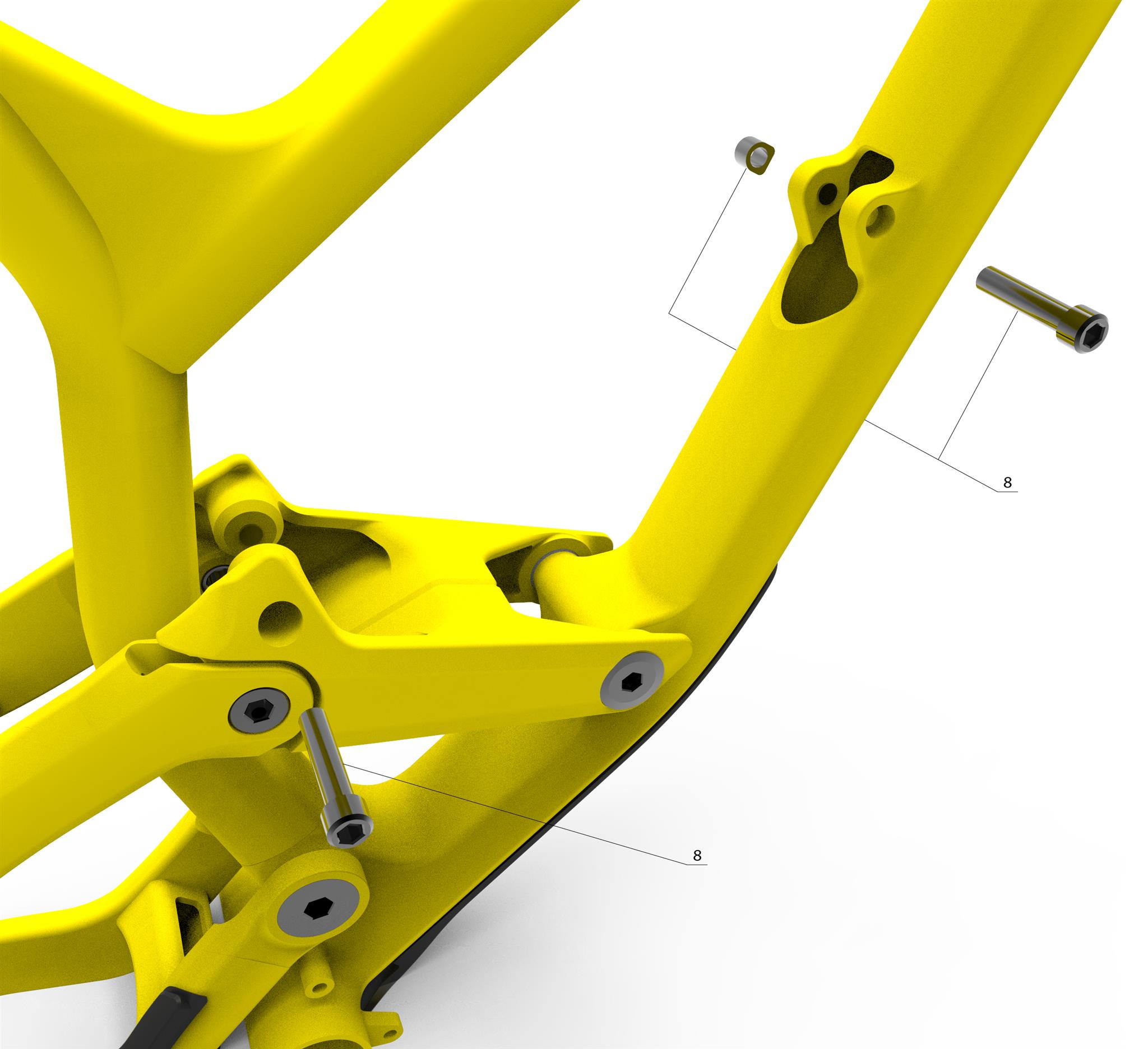

Shock axles

Index	Ref	Nom		Photo
8	W16DHV4SHOCKAXLE	REAR SHOCK SCREW FOR SUPREME DH V4	9 N.m

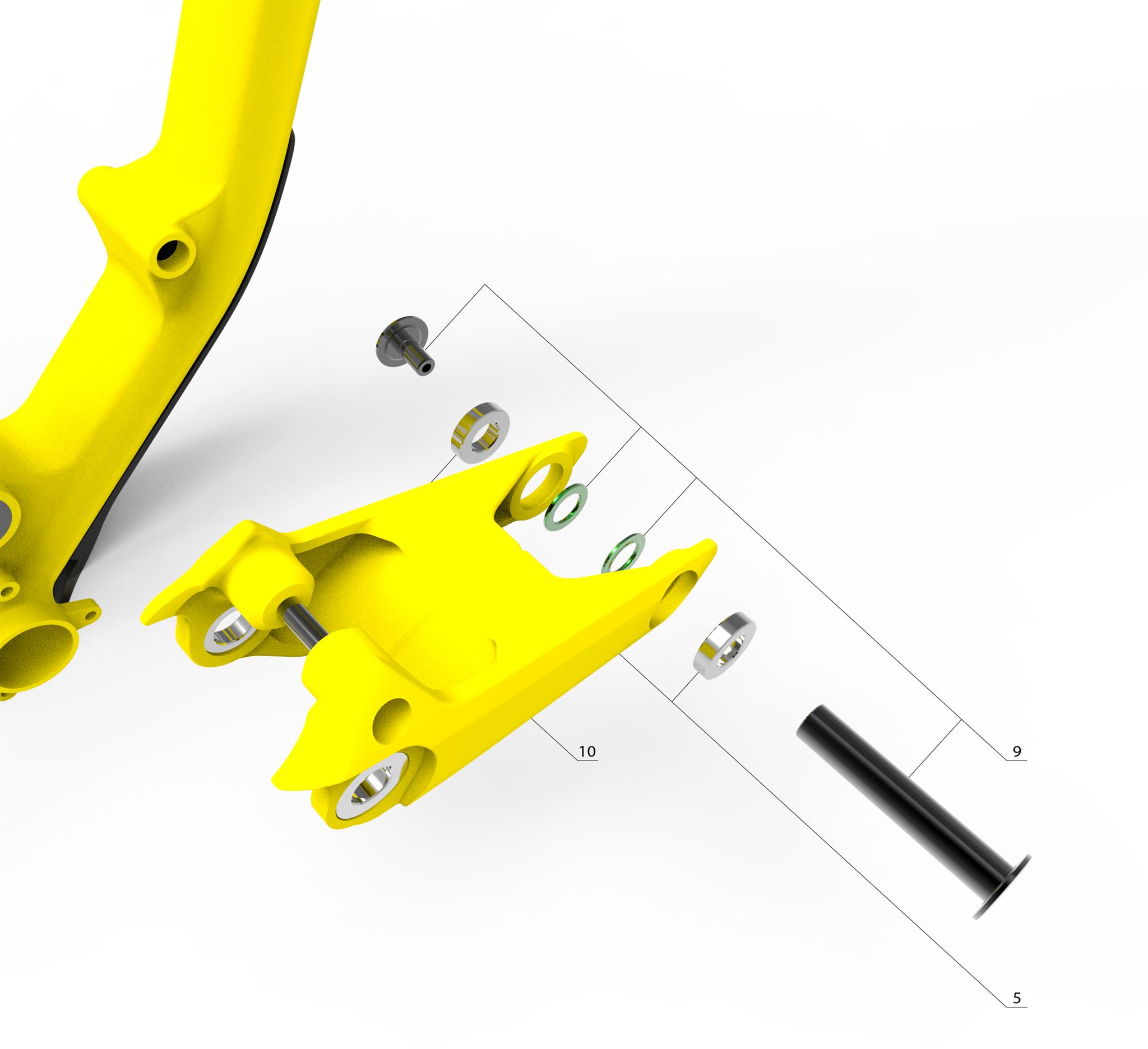

Rocker / Front triangle

Index	Ref	Nom		Photo
10	W18FUMROCKER	BASCULEUR FURIOUS V2 METRIC
5	W19EB6902	BEARING ENDURO BEARING 6902 LLU MAX	15 x 28 x 7
9	W17FUAXLERCK	ROCKER LINK AXLE KIT FURIOUS V2	10-12 N.m
BEARING KIT	W21EBFURIOUS	ENDURO BEARINGS META V3 / SUPREME DH V3 / V4 / FURIOUS	2 x 6804 / 6 x 6902

PARTS
