COMMENCAL CLASH ORIGIN 2020

https://tech.commencal.com/tech/index.php?fiche=390&lang=

SPECS

Specs

FRAME2020 CLASH, 165 mm travel

27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

SHOCKROCKSHOX Deluxe Select

230 x 65 mm, rebound

FORKROCKSHOX Yari RC, 180 mm travel

27.5", Motion Control damper, Debonair, rebound, Boost (15 x 110 mm), 46 mm offset

HEADSETACROS Fiber cups ZS44/ZS56

ZS44/ZS56, sealed bearings, IPS Technology

STEMRIDE ALPHA Freeride, 40 mm

31,8 mm, 0° angle, 2014 alloy

BARRIDE ALPHA, 27 mm rise, 780 mm, 31,8 mm

6061 alloy, double butted

GRIPSRIDE ALPHA, DH Grips, black

Ultra soft compound, single clamp

BRAKESSRAM Guide T, 200 mm / 200 mm

4 pistons

SHIFTERSSRAM SX Eagle, 12 sp

CHAIN GUIDE-

REAR MECHSRAM SX Eagle, 12 sp

BOTTOM BRACKETSRAM DUB Pressfit

92 mm

CRANKSETSRAM X1 1000 Eagle, 170 mm, 34t chainring

Boost, DUB

CHAINSRAM SX Eagle, 12 sp

116 links

CASSETTESRAM SX Eagle, 12 sp

11-50t

RIMSWTB ST i30

32 holes, 30 mm inner width, tubeless ready

HUBSFORMULA, sealed bearing rear / loose ball front

32 holes, 6 bolts, 15 x 110 mm front, 12 x 148 mm rear, standard freehub body, red anodised

SPOKES / NIPPLESSAPIM Leader spokes

Stainless steel, 2.0 mm

TYRESVEE TIRE CO. Snap WCE 27.5 x 2.35 front / VEE TIRE CO. Snap WCE 27.5 x 2.35 rear

Tubeless ready, Tackee Compound, skinwall front / Tubeless ready, Tackee Compound, skinwall rear

SEATPOSTRIDE ALPHA

31.6 mm, 400 mm, alloy 6061

SADDLEFABRIC Scoop Flat Sport

Steel rails

WEIGHT15,6 kg / 34,4 lbs

PEDALS INCLUDEDNo

COLOURChalk grey

Shiny clear coat

ACCESSORIESDown tube protector, chainstay protector, seatstay protectors

TECH

Tech

BICYCLE TYPEFull suspension Enduro

FRAME MATERIALNEC + ULTRA SL (aluminium 6066 triple butted)

FRAME WEIGHT3,7 kg / 8.1 lbs

REAR TRAVEL165 mm

SHOCK LENGTH / STROKE230 x 65 mm

PIGGY BACK SHOCK COMPATIBLEYes

SHOCK BUSHINGS30 x 10 mm / 20 x 8 mm

RECOMMENDED / MAX. FORK HEIGHT571 mm / 581 mm

HEADSET DIMENSIONTapered

HEADSET TYPEZS44/ZS56

MAXIMUM TYRE DIMENSION (ETRTO)70 mm

DISC BRAKE STANDARD Postmount 200 mm

REAR ROTOR MAX. SIZE203 mm

SEATPOST / SEAT CLAMP DIAMETER31.6 mm / 34.9 mm

BOTTOM BRACKET TYPEPress Fit BB92

MAX. CHAINRING SIZE34t

ISCGISCG05

FRONT DERAILLEUR TYPENo

REAR HUB COMPATIBILITYBoost, Maxle Standard

Riders Insight

The CLASH is crazy! In reality, there are very few enduro bikes on which I feel so comfortable. It's a bit like my FURIOUS, except that it is lighter, more maneuverable and above all, much better. For places like my home in Australia or New Zealand, it's the perfect bike! I have not ridden an aluminium MTB for a few years now and the stiffness of the CLASH is really surprising. First impressions is that it's solid and very easy to handle in corners and in the air. Really, I love this bike!Remy MortonFor me the CLASH is the perfect bike if you want to do everything with your MTB. It is an excellent downhiller, with which one can really have fun, and it does well uphill tool. It's a war machine for bike park warriors!Hugo Frixtalon

LONGUEUR DES RAYONS

ROUE	GAUCHE / CÔTÉ SANS TRANSMISSION	DROIT / CÔTÉ TRANSMISSION
AVANT	273 mm	274 mm
ARRIÈRE	272 mm	274 mm

GEOMETRIE

TAILLE	1 - LONGUEUR TUBE DE SELLE	2 - ANGLE TUBE DE SELLE	3 - ANGLE DE DIRECTION	4 - HAUTEUR DE DOUILLE	5 - EMPATTEMENT	6 - LONGUEUR TUBE SUPERIEUR	7 - LONGUEUR BASES	8 - HAUTEUR BOITIER DE PEDALIER	9 - HAUTEUR DE FOURCHE	10 - HAUTEUR A L'ENTREJAMBE	11 - PROJETE HORIZONTAL BB/TT	12 - PROJETE VERTICAL BB/TT
S	395,0	75,5	65,0	110,0	1184,0	581,0	434,0	-12,0	571,0		422,0	602,0
M	440,0	75,5	65,0	115,0	1206,0	603,0	434,0	-12,0	571,0		442,0	608,0
L	455,0	75,5	65,0	125,0	1235,0	631,0	434,0	-12,0	571,0		467,0	612,0
XL	485,0	75,5	65,0	125,0	1267,0	663,0	434,0	-12,0	571,0		497,0	616,0

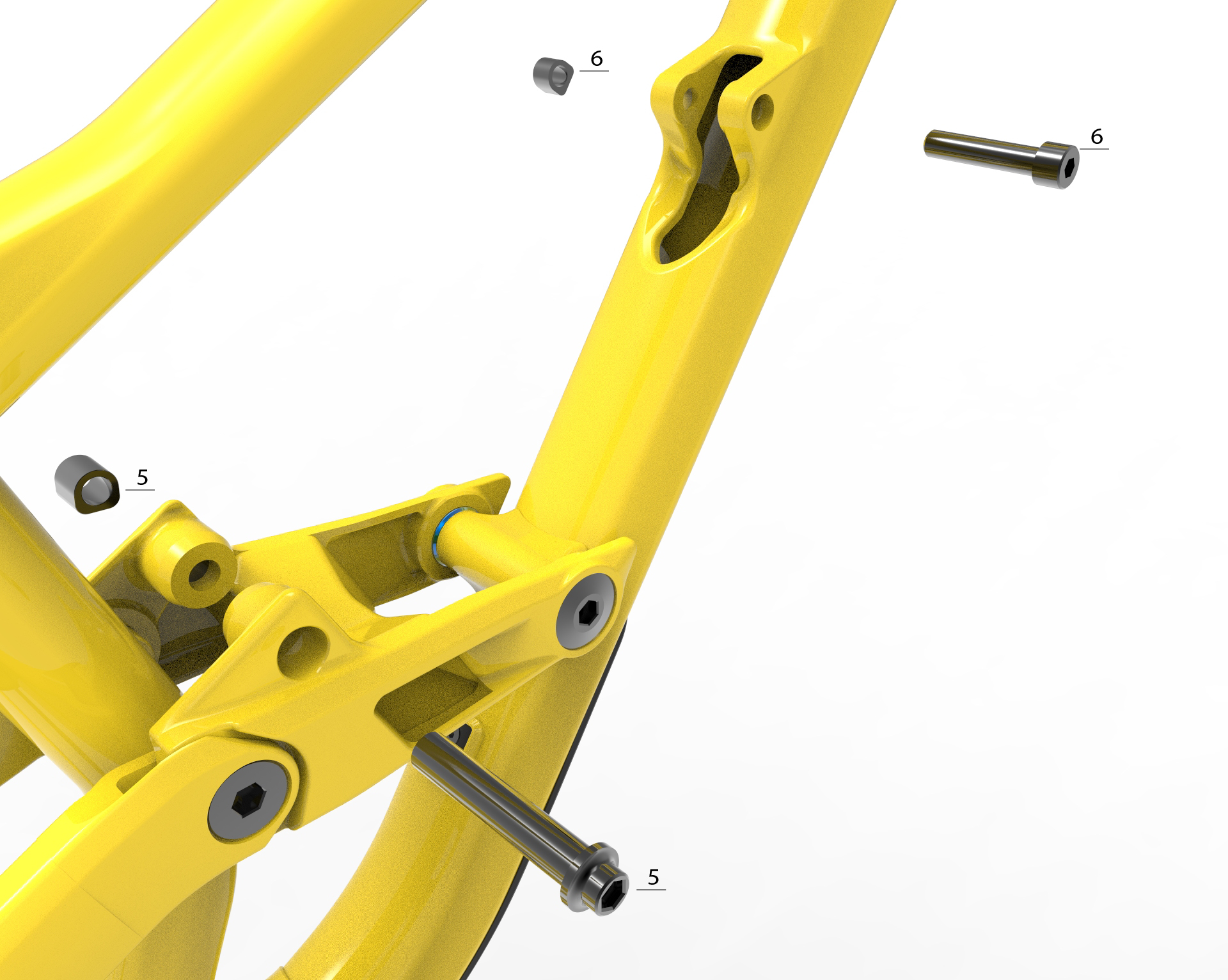

Downtube

Index	Ref	Nom		Photo
5	W19CLHAXLESHRK	SHOCK / ROCKER AXLE CLASH	12 N.m
6	W16DHV4SHOCKAXLE	REAR SHOCK SCREW FOR SUPREME DH V4	9 N.m

Hose Guide

Index	Ref	Nom		Photo
15	W19CLHCABLEGUIDET	TOP CABLE GUIDE CLASH	3 N.m

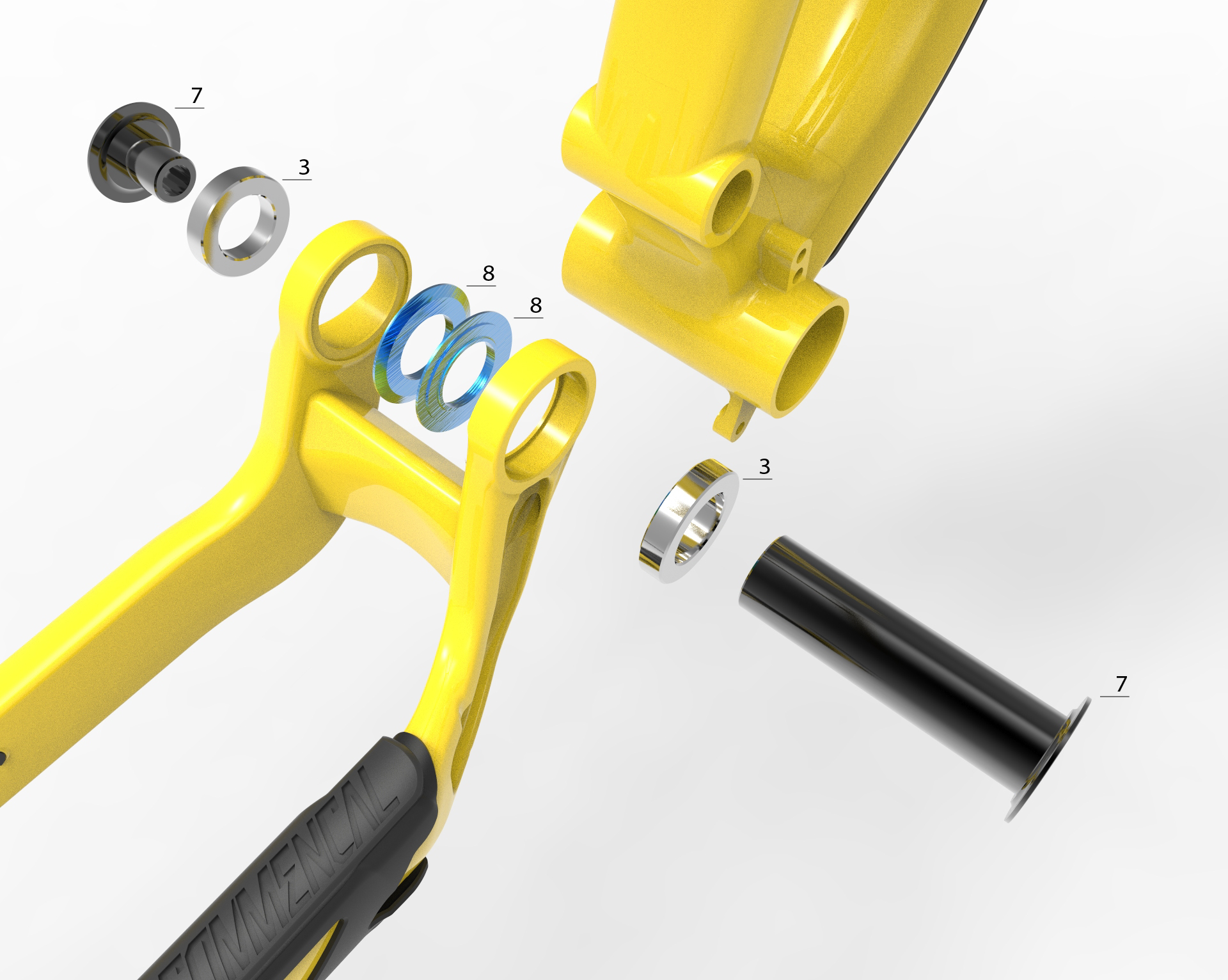

Main Pivot

Index	Ref	Nom		Photo
3	W19EB6804	BEARING ENDURO BEARING 6804 LLU MAX	20 x 32 x 7
7	W19M29AXLEMP	MAIN PIVOT AXLE META 29 / CLASH	30-35 N.m
8	W19M29WASHERMP	MAIN PIVOT WASHERS META 29 / CLASH
BEARING KIT	W22EBCLASHV1	ENDURO BEARINGS CLASH V1	2 x 6804 / 4 x 6902 / 2 x 6903

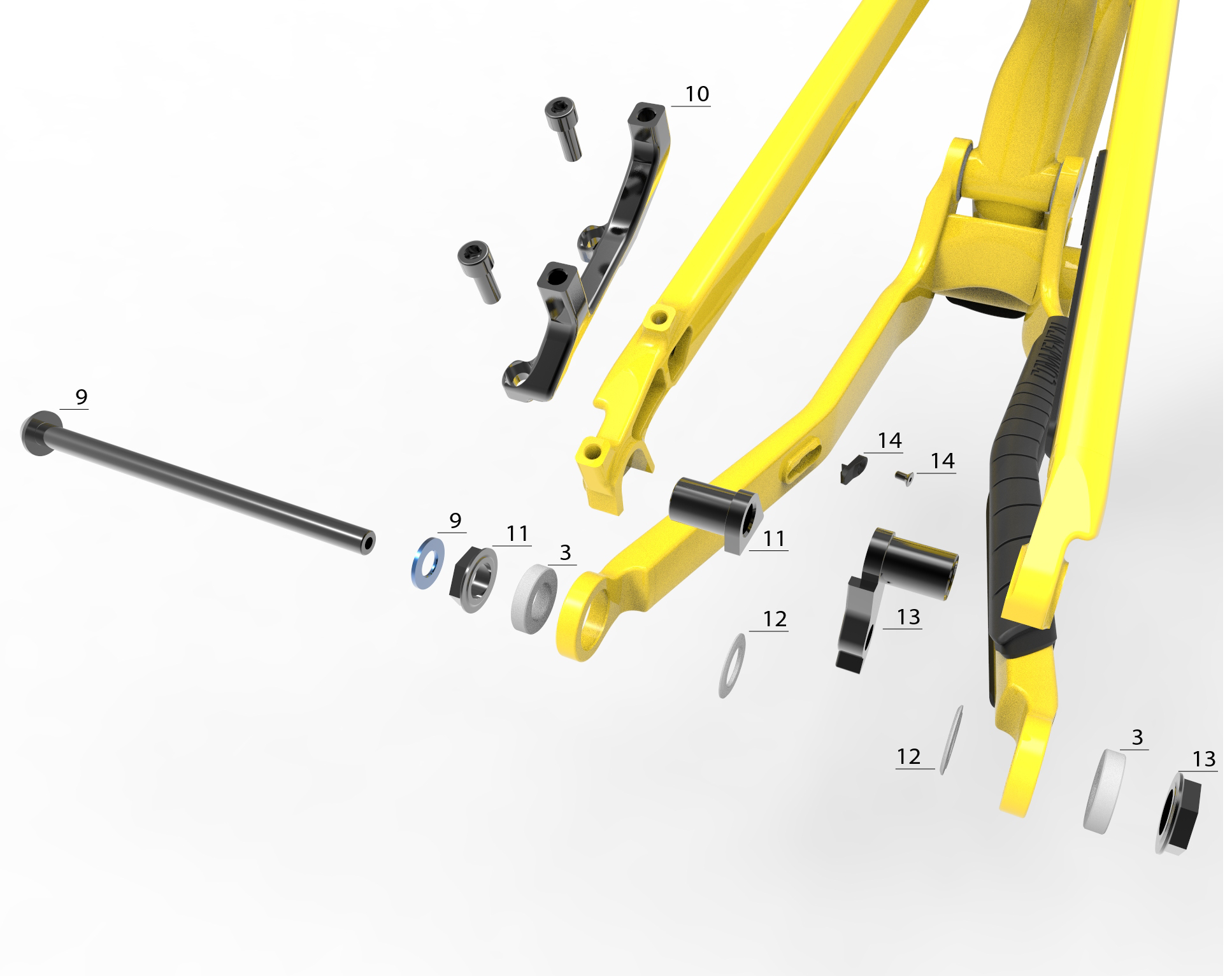

Chainstays / Seatstays

Index	Ref	Nom		Photo
10	W19CLHBRAKEH200	200 MM REAR BRAKE MOUNT CLASH
11	W19CLHRHL	LEFT HANGER CLASH	22 N.m
12	W19CLHWASHERCSSS	CHAIN STAYS / SEAT STAYS WASHERS CLASH
13	W19CLHRHROS	RIGHT HANGER CLASH OFFSET	22 N.m
14	W19CLHCABLEGUIDEB	BOTTOM CABLE GUIDE CLASH	3 N.m
3	W19EB6903	BEARING ENDURO BEARING 6903 LLU MAX	17 x 30 x 7
9	W19CLHAXLEWHEEL	REAR WHEEL AXLE CLASH	12 N.m
BEARING KIT	W22EBCLASHV1	ENDURO BEARINGS CLASH V1	2 x 6804 / 4 x 6902 / 2 x 6903

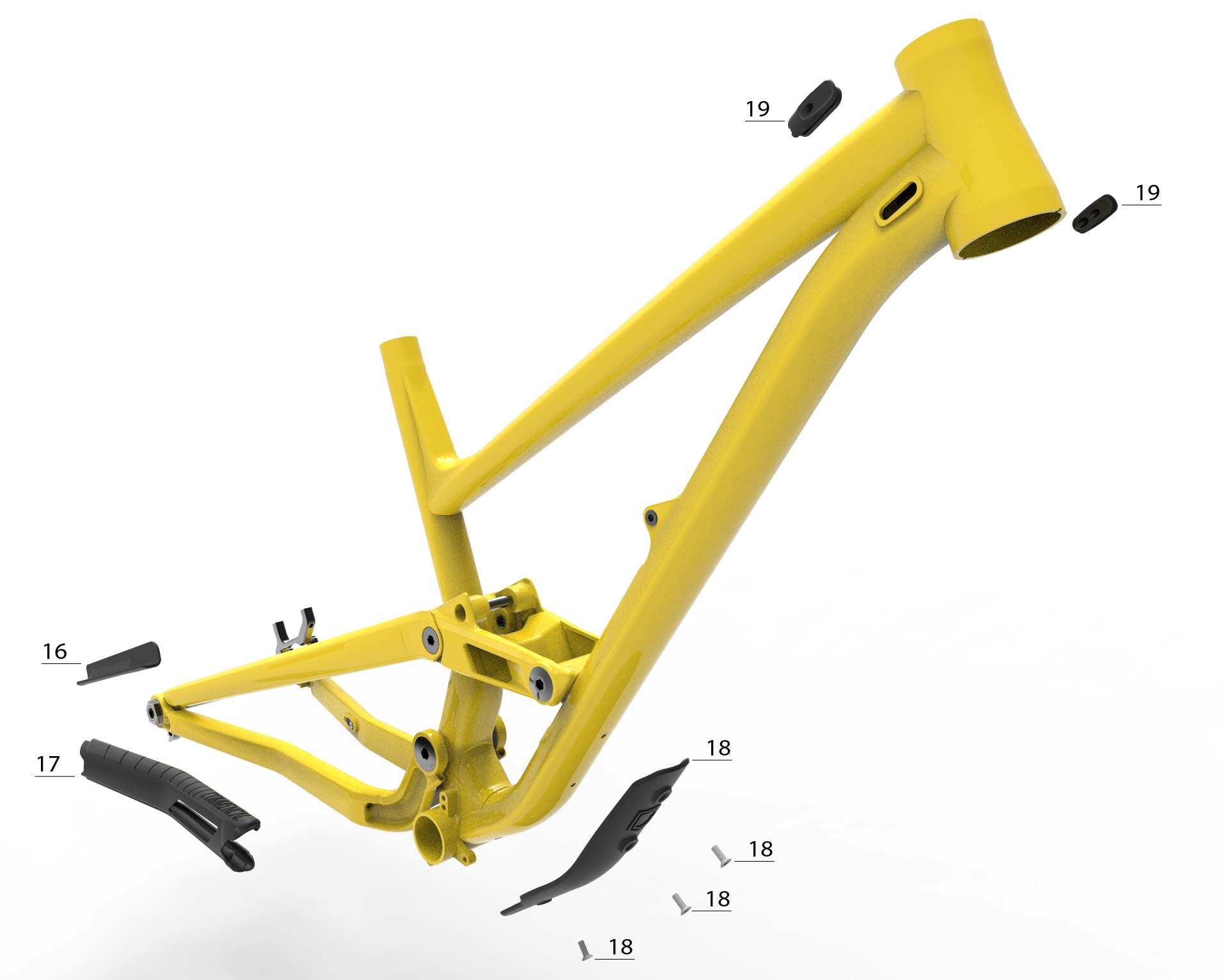

Protectors

Index	Ref	Nom		Photo
16	A16SSTPROTECMETAV4	SEATSTAY PROTECTOR FOR META V4
17	W19CLHPROTECCS	CHAIN STAY PROTECTOR CLASH
18	W19M29PROTECDT	DOWN TUBE PROTECTOR META / CLASH	3 N.m
19	W18SEAL1H	INTERNAL ROUTING SEAL - 1 HOLE
19	W18SEAL2H	INTERNAL ROUTING SEAL - 2 HOLES
19	W18SEALNOH	INTERNAL ROUTING SEAL - NO HOLE

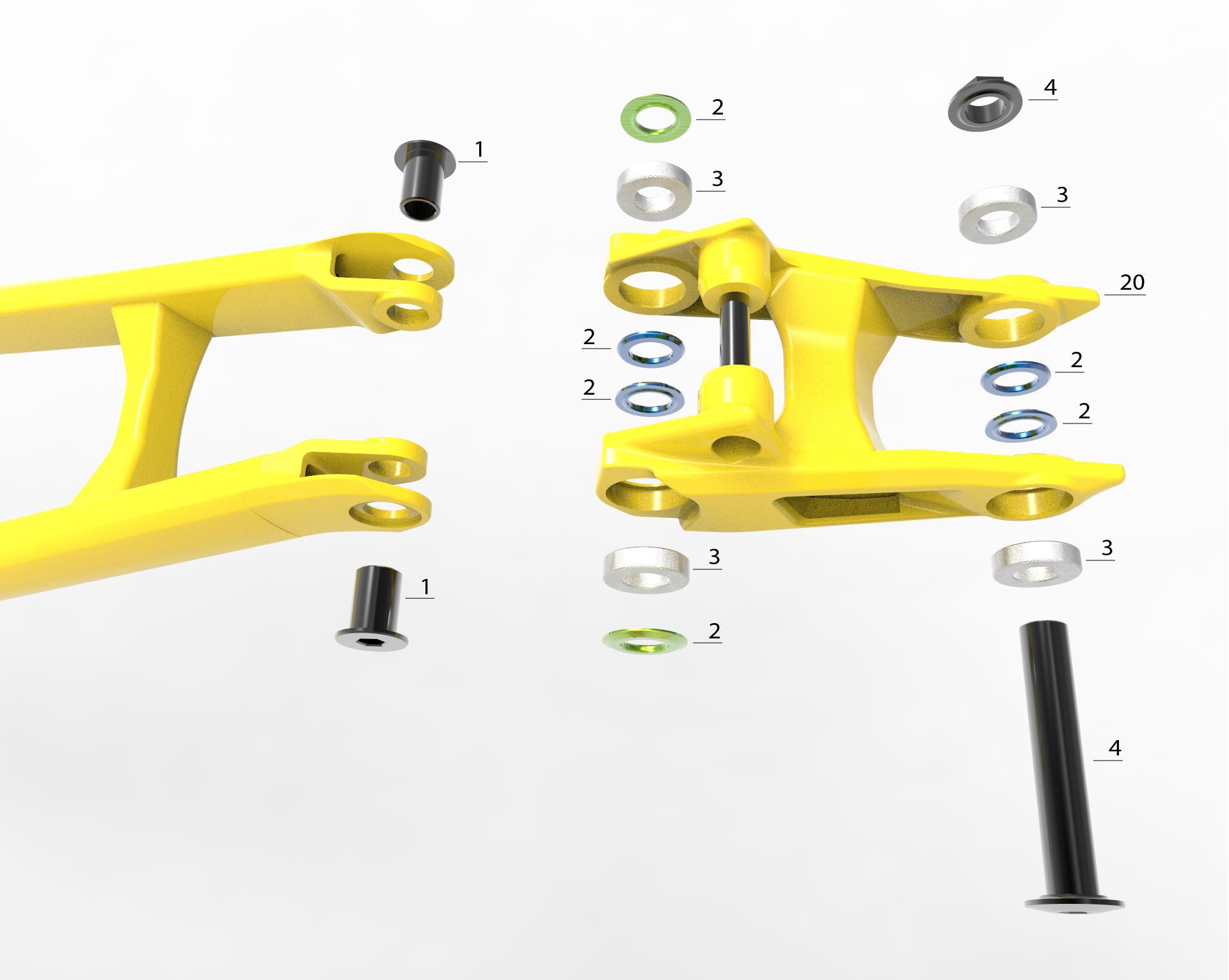

Rocker

Index	Ref	Nom		Photo
1	W19CLHAXLERKSS	ROCKER / SEAT STAY AXLES CLASH	12-15 N.m
2	W19CLHWASHERCS	CONTACT SYSTEM WASHERS CLASH
20	W19CLHROCKER	ROCKER LINK CLASH
3	W19EB6902	BEARING ENDURO BEARING 6902 LLU MAX	15 x 28 x 7
4	W19CLHAXLERKDT	SHOCK / DOWN TUBE AXLE CLASH	12-15 N.m
BEARING KIT	W22EBCLASHV1	ENDURO BEARINGS CLASH V1	2 x 6804 / 4 x 6902 / 2 x 6903

PARTS

Jeu de Direction
	ZS44 / 28,6 - ZS56 / 40
Acheter

Boitier de pédalier
	PressFit BB92
Acheter

Patte de dérailleur
	W19CLHRHROS
Acheter

Corps de roue libre
	FORMULA DCL348A 10 - Alloy
Acheter
