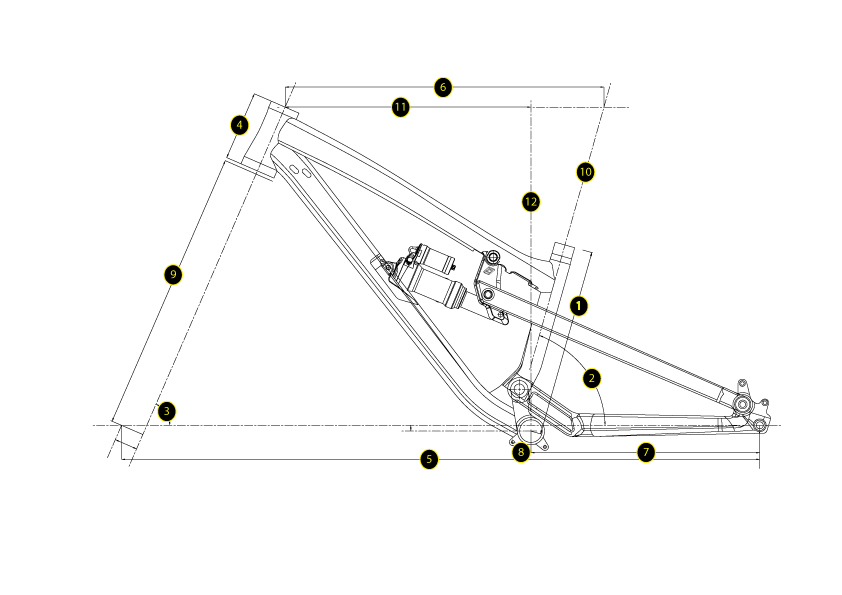

SIZE |
1 SEAT TUBE LENGTH |
2 SEAT TUBE ANGLE |
3 HEAD TUBE ANGLE |
4 HEAD TUBE LENGTH |
5 WHEELBASE |
6 TOP TUBE LENGTH |
7 CHAIN STAY LENGTH |
8 BOTTOM BRACKET HEIGHT |
9 FORK LENGTH |
10 STANDOVER HEIGHT |
11 REACH |
12 STACK |
13 FORK OFFSET |
| S/M | 325,0 | 74,2 | 66,5 | 120,0 | 1101,0 | 550,0 | 395,0 | -10,0 | 490,0 | 700,0 | 424,0 | 559,0 | |
| L/XL | 325,0 | 74,2 | 66,5 | 120,0 | 1121,0 | 570,0 | 395,0 | -10,0 | 490,0 | 700,0 | 444,0 | 559,0 |
