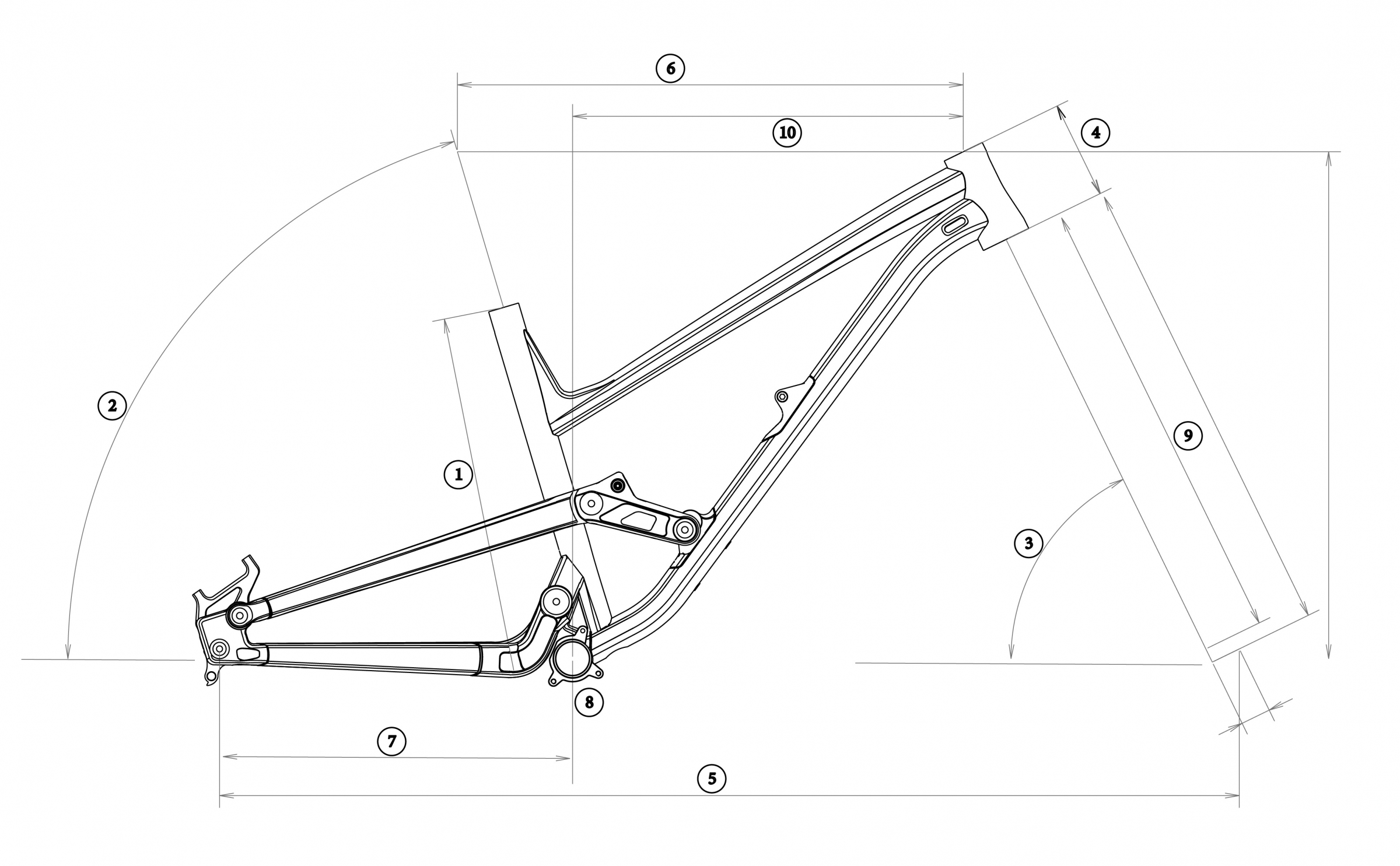

SIZE |
1 SEAT TUBE LENGTH |
2 SEAT TUBE ANGLE |
3 HEAD TUBE ANGLE |
4 HEAD TUBE LENGTH |
5 WHEELBASE |
6 TOP TUBE LENGTH |
7 CHAIN STAY LENGTH |
8 BOTTOM BRACKET HEIGHT |
9 FORK LENGTH |
10 STANDOVER HEIGHT |
11 REACH |
12 STACK |
| S | 395 | 75,5 | 65 | 110 | 1184 | 581 | 434 | -12 | 571 | 740,0 | 422 | 602 |
| M | 440 | 75,5 | 65 | 115 | 1206 | 603 | 434 | -12 | 571 | 745,0 | 442 | 608 |
| L | 455 | 75,5 | 65 | 125 | 1235 | 631 | 434 | -12 | 571 | 745,0 | 467 | 612 |
| XL | 485 | 75,5 | 65 | 125 | 1267 | 663 | 434 | -12 | 571 | 750,0 | 497 | 616 |
