2014

SUPERNORMAL 2 650B 2014
SPECS

FRAME New 2014 SUPERNORMAL 650b 7005 alloy triple butted, smooth welding
FORK ROCKSHOX XC30, 120mm
HEADSET NECO semi integrated, tapered zs44/56, 1”1/8 lower washer
STEM ALPHA, alloy 2014 forged, 60mm, 0° rise, ø31,8mm
BAR ALPHA, alloy 6061db, 0.75”rise, 720mm, ø31,8mm
GRIPS COMMENCAL 2014 lock on, outside ø30mm, soft comp.
BRAKES TEKTRO HDC330 hydraulic disc brake 160mm/160mm, with reach adjustment
SHIFTERS SRAM x5 2x10 speed
FRONT MECH SRAM x5 2 speed high direct mount
REAR MECH SRAM x5 type 2 10 speed
CRANKS Samox Isis 24/38t, 170mm s, 175mm m/l/xl
CHAIN YABAN sh10C, with quick link connector
CASSETTE SRAM pg1030 11-36t
RIMS JALCO 650b 32h double wall, 24,5mm, pin joint, disc version
HUBS JOYTECH 32h, sealed bearings
SPOKES Stainless steel 1,8mm black - brass 12mm black
TIRES MAXXIS Ardent 650bx2.25, 60tpi, folding bead
SEATPOST COMMENCAL alloy no offset, ø31,6mm, one piece design, 350mm
SADDLE COMMENCAL SUPERNORMAL by Velo, CrMo rails


SIZES XS / S / M / L / XL
COLOUR Light Brown Matt Finish
BIKE WEIGHT(kg/lbs) 12,40
NOTE META Chainstay protector, rear shock mudguard

Frame available


LONGUEUR DES RAYONS
ROUE GAUCHE / CÔTÉ SANS TRANSMISSION DROIT / CÔTÉ TRANSMISSION
AVANT 269 mm 271 mm
ARRIÈRE 271 mm 269 mm

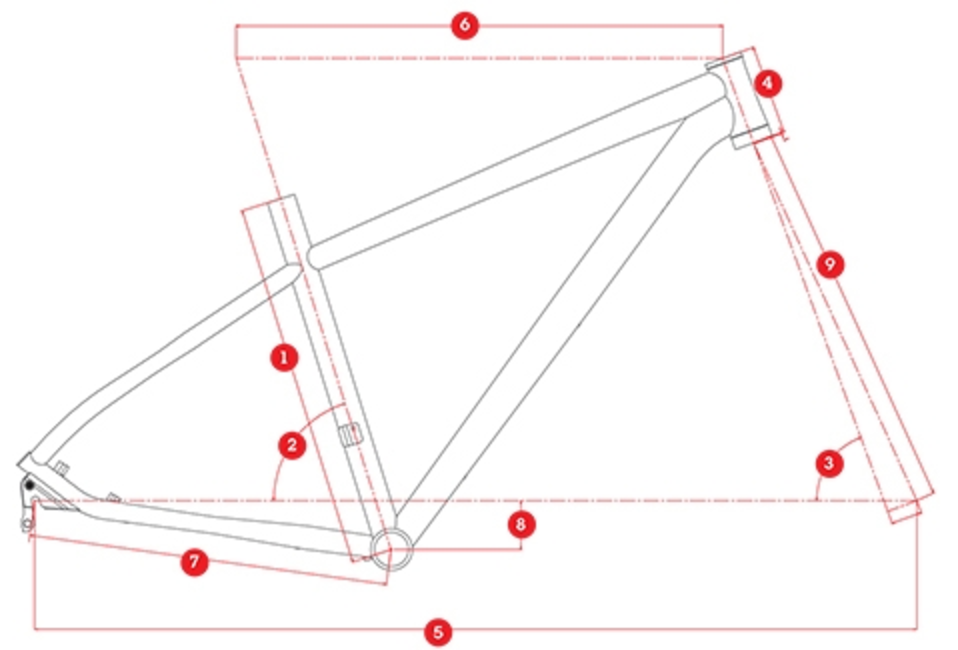

GEOMETRIE
TAILLEXSSMLXL
1 - LONGUEUR TUBE DE SELLE350,0400,0440,0490,0520,0
2 - ANGLE TUBE DE SELLE73,073,073,073,073,0
3 - ANGLE DE DIRECTION68,568,568,068,068,0
4 - HAUTEUR DE DOUILLE100,0110,0110,0120,0130,0
5 - EMPATTEMENT1040,01060,01080,01105,01130,0
6 - LONGUEUR TUBE SUPERIEUR545,0565,0585,0610,0635,0
7 - LONGUEUR BASES430,0430,0430,0430,0430,0
8 - HAUTEUR BOITIER DE PEDALIER-50,0-50,0-48,0-48,0-48,0
9 - HAUTEUR DE FOURCHE485,0485,0505,0505,0505,0
10 - HAUTEUR A L'ENTREJAMBE680,0700,0725,0755,0785,0
11 - PROJETE HORIZONTAL BB/TT
12 - PROJETE VERTICAL BB/TT
PARTS
Jeu de Direction
ZS44/ZS56
Acheter
Boitier de pédalier
BSA 68mm
Acheter
Patte de dérailleur
META HT
Acheter
Corps de roue libre
D142DSE
8/9/10S - Steel
Acheter
