2015

ACID GREY 2015
SPECS
FRAME Asymetric Acid Crmo 700c
SHOCK  -
FORK Acid Crmo
HEADSET 1 1/8" integrated, campy style, sealed bearings
STEM RIDE ALPHA, Alloy 6061 forged, 70mm, O° rise, Ø31,8mm
BAR RIDE ALPHA, Ø31,8, 640mm, AL6061
GRIPS COMMENCAL, Ø32mm, SOFT COMPOUND
BRAKES Road bike caliper
SHIFTERS -
FRONT / REAR MECH - /-
BOTTOM BRACKET BB 68MM, cartridge bearing
CRANKSET Forged, Fixie style, 45t
CHAIN YABAN half link black
CASSETTE 17t freewheel and 17t track sprocket
RIMS 700c double wall, 30mm profile, 36h, pin joint, Orange anodised
HUBS 36H, sealed bearings, high flange track design, Orange anodised
SPOKES

Spoke Steel 1,8mm black - Nipple brass 12mm black

TIRES FREEDOM Thickslick 700*28c
SEATPOST Alloy no offset Ø27,2mm, 350mm
SADDLE COMMENCAL Urban, steel black rails, soft padding
PEDALS INCLUDED Yes
TECH
BICYCLE TYPE Fixie
FRAMLE MATERIAL NEC + ULTRA CRMO (Crmo 4130 Triple Butted)
COMMENTS  Fixie and freewheel compatible
SHOCK LENGTH / STROKE  -
PIGGY BACK SHOCK COMPATIBLE   -
SHOCK SPACER DIMENSION  -
RECOMMENDED / MAX FORK HEIGHT 390mm
HEADSET DIMENSION 1 1/8"
HEADSET TYPE Integrated Campa type 45 x 45
MAXIMUM TYRE WIDTH (ETRTO) 28 mm
DISC BRAKE STANDARD Road brake calipers
REAR ROTOR MAX SIZE -
SEATPOST / SEAT CLAMP DIAMETER 27,2mm / 29,8 mm
BOTTOM BRACKET TYPE 68mm BSA
ISCG Not compatible
FRONT DERAILLEUR Not compatible
REAR HUB COMPATIBILITY 120x10mm
LONGUEUR DES RAYONS
ROUE GAUCHE / CÔTÉ SANS TRANSMISSION DROIT / CÔTÉ TRANSMISSION
AVANT 274 mm 274 mm
ARRIÈRE 274 mm 274 mm

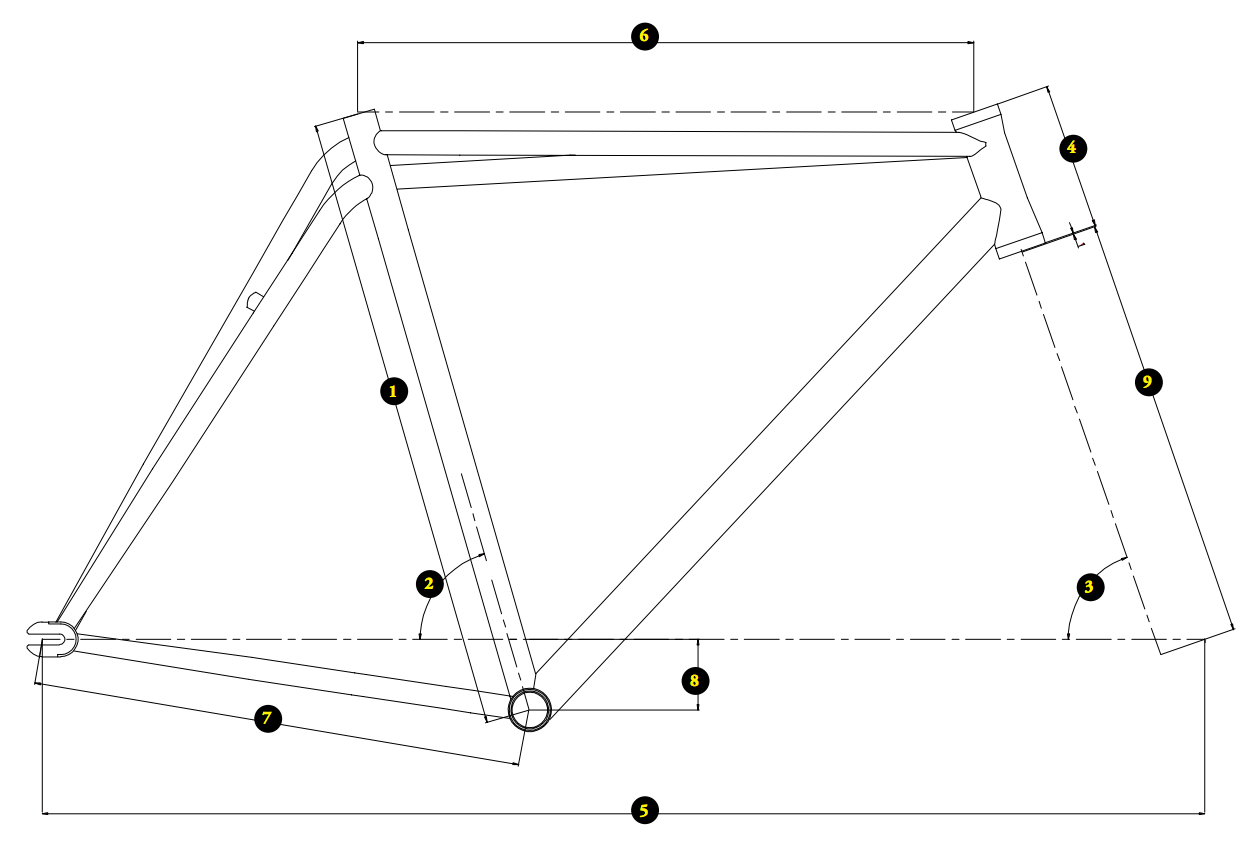

GEOMETRIE
TAILLESL
1 - LONGUEUR TUBE DE SELLE550,0550,0
2 - ANGLE TUBE DE SELLE74°74°
3 - ANGLE DE DIRECTION72,5°72,5°
4 - HAUTEUR DE DOUILLE135,0135,0
5 - EMPATTEMENT1040,01040,0
6 - LONGUEUR TUBE SUPERIEUR565,0580,0
7 - LONGUEUR BASES410,0410,0
8 - HAUTEUR BOITIER DE PEDALIER-65,0-65,0
9 - HAUTEUR DE FOURCHE390,0390,0
10 - HAUTEUR A L'ENTREJAMBE835,0835,0
11 - PROJETE HORIZONTAL BB/TT
12 - PROJETE VERTICAL BB/TT
PARTS
Jeu de Direction
integrated 45°/45° Campy
Acheter
Boitier de pédalier
BSA 68mm
Acheter
Patte de dérailleur
/
Acheter
Corps de roue libre
A166DSE
"1.37"" on both side" - W/ 17T cog + lock ring
